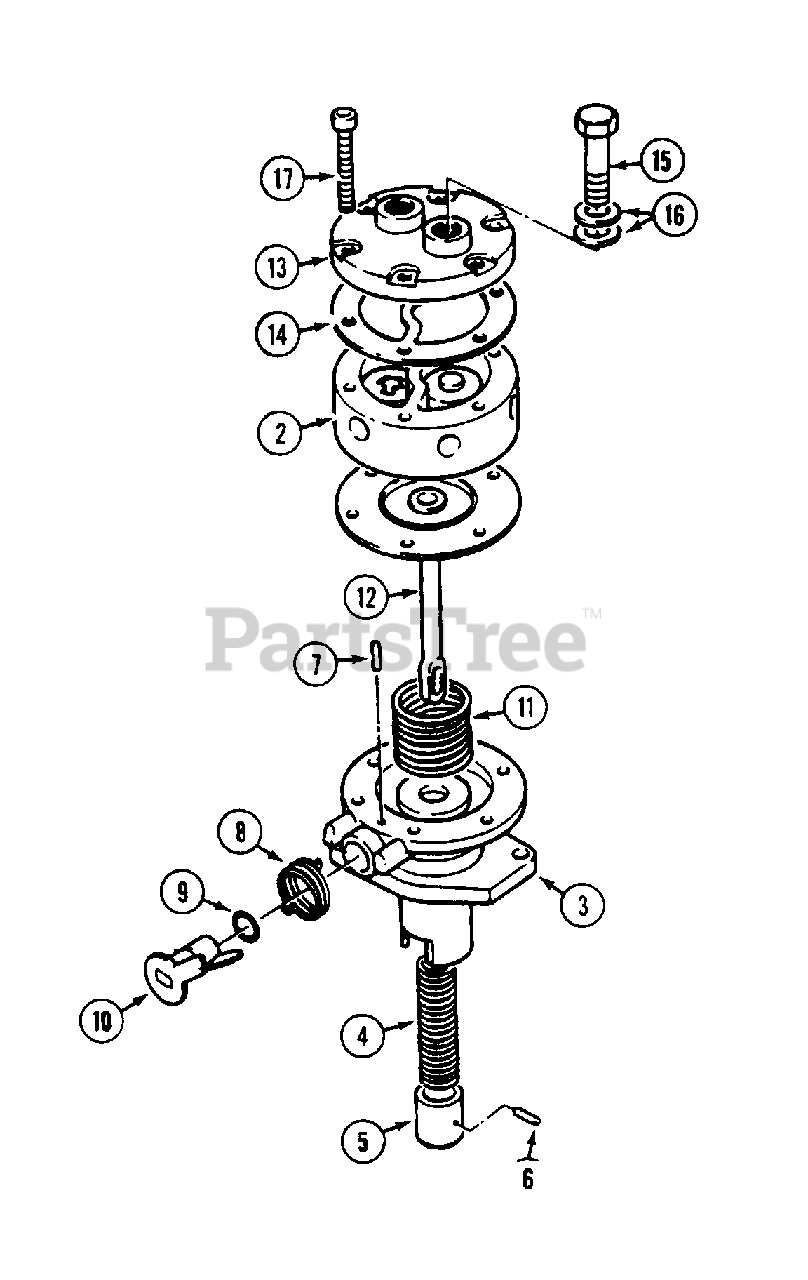

FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Fuel Pump Parts Diagram

Front-Mount Riding Mower

Fuel Pump Parts Diagram

  • Title

?1

WD-C43604

PUMP - fuel

$

$

Not available

2

~NSS

BODY - upper

$

$

Not available

3

WD-P130516080

BODY - lower

$

$

Not available

4

WD-P130516081

SPRING

$

$

Not available

5

WD-P130516082

PLUNGER

$

$

Not available

6

WD-P130516085

PIN

$

$

Not available

7

WD-P130516088

PIN

$

$

Not available

8

WD-P130516083

SPRING

$

$

Not available

9

WD-P131226180

"O" RING

$

$

Not available

10

WD-P130516086

LEVER

$

$

Not available

11

WD-P130516087

SPRING

$

$

Not available

12

WD-P130516084

DIAPHRAGM

$

$

Not available

13

WD-P130516090

CAP

$

$

Not available

14

WD-P130516089

GASKET

$

$

Not available

15

WD-P130516092

BOLT

$

$

Not available

16

WD-P130516069

WASHER

$

$

Not available

17

WD-P130516091

SCREW

$

$

Not available
