FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Fuel System (Engine) Parts Diagram

Front-Mount Riding Mower

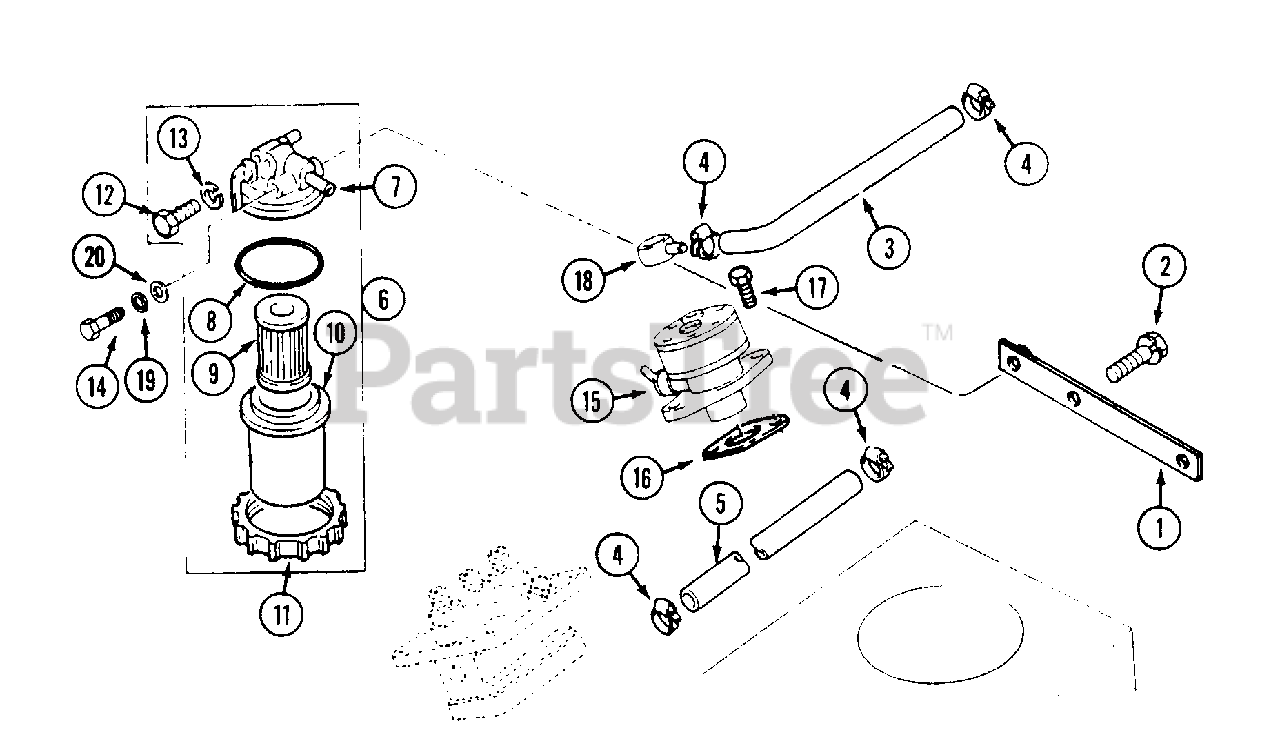

Fuel System (Engine) Parts Diagram

  • Title

1

WD-C45468

BRACKET - fuel filter mounting

$

$

Not available

2

WD-P011310816

SCREW

$

$

Not available

3

WD-C45470

HOSE - fuel (pump to filter) 5.5"

$

$

Not available

4

WD-P198346020

CLAMP - hose

$

$

Not available

5

WD-C42988

HOSE - filter to injection pump

$

$

Not available

6

WD-P130306041

FILTER ASSEMBLY - fuel

$

$

Not available

7

~NSS

HEAD

$

$

Not available

8

White Outdoor WD-C43597

"O" RING

$

$

Not available

9

White Outdoor WD-C43444

ELEMENT - fuel filter

$

$

Not available

10

WD-P130336031

CONTAINER

$

$

Not available

11

WD-P130446090

RING

$

$

Not available

12

WD-P130446080

PLUG

$

$

Not available

13

WD-P130326120

WASHER

$

$

Not available

14

WD-113-111

BOLT - 5/16" - 18 x 2-1/2"

$

$

Not available

15

WD-C43604

PUMP - fuel

Note: (See fuel pump illustration for parts.)

$

$

Not available

16

WD-P130996070

GASKET

$

$

Not available

17

WD-P011140616

SCREW

$

$

Not available

18

WD-P198486840

CONNECTOR

$

$

Not available

19

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

20

WD-195-521

WASHER - 5/16"

$

$

Not available
