FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Radiator And Shroud Parts Diagram

Front-Mount Riding Mower

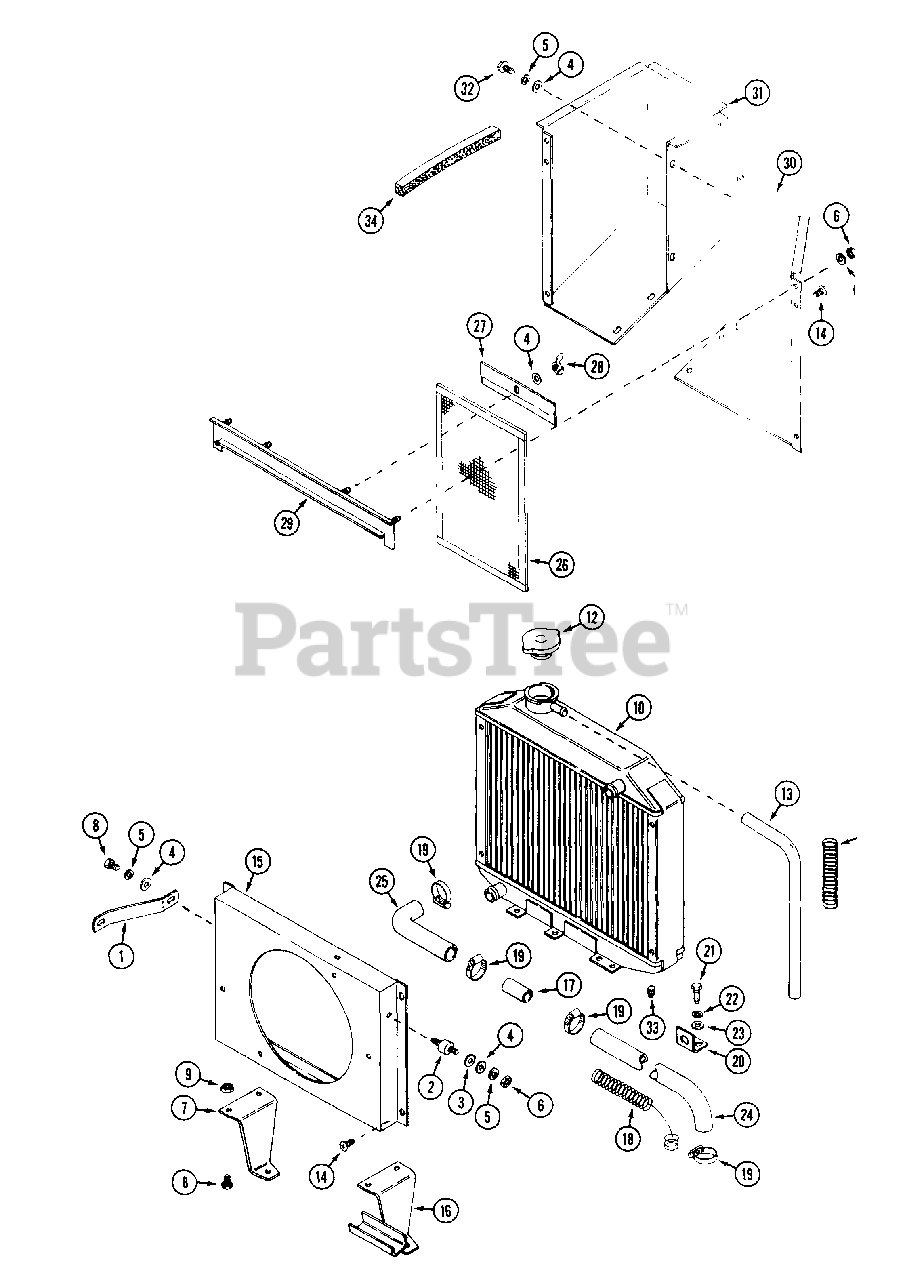

Radiator And Shroud Parts Diagram

  • Title

1

WD-C45310

STRAP - radiator mount

$

$

Not available

2

WD-C43012

MOUNT - rubber

$

$

Not available

3

White Outdoor WD-C37704

WASHER - .33" x .69"

$

$

Not available

4

WD-195-518

WASHER - 1/4"

$

$

Not available

5

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

6

WD-129-101

NUT - 1/4"

$

$

Not available

7

WD-C45206

BRACKET - radiator - support, rear

$

$

Not available

8

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

9

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

10

WD-C43211

RADIATOR

$

$

Not available

?11

WD-C45633

SPRING - hose liner

$

$

Not available

12

WD-C43009

CAP - radiator

$

$

Not available

13

WD-C43011

HOSE - overflow

$

$

Not available

14

WD-C33576

SCREW - 1/4" - 20 x 5/16"

$

$

Not available

15

WD-C45308

SHROUD - fan

$

$

Not available

16

WD-C45464

BRACKET - radiator support, front

$

$

Not available

17

WD-C43367

TUBE .88" x 2"

$

$

Not available

18

WD-C44567

SPRING - hose liner

$

$

Not available

19

WD-214-255

CLAMP - hose #16

$

$

Not available

WD-214-256

CLAMP - hose #20

$

$

Not available

20

WD-C45311

BRACKET - hose support, upper

$

$

Not available

WD-C44604

BRACKET - hose support, lower

$

$

Not available

21

WD-814-8016

BOLT - M8 - 1.25 x 16

$

$

Not available

22

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

23

White Outdoor WD-195-102

WASHER - .312" x .75"

$

$

Not available

24

WD-C43368

HOSE - .88" x 13.5" top engine

$

$

Not available

WD-C43369

HOSE - .88 x 32" lower engine

$

$

Not available

25

White Outdoor WD-C33551

HOSE 90°.

$

$

Not available

26

WD-C45447

SCREEN - radiator

$

$

Not available

27

WD-C45450

BRACKET - screen mounting

$

$

Not available

28

WD-129-409

NUT - wing 1/4" - 20

$

$

Not available

29

WD-C45451

RAIL - upper, screen mounting

$

$

Not available

30

WD-C45453

DUCT - air, front

$

$

Not available

31

WD-C45457

DUCT - air, rear

$

$

Not available

32

WD-187-1036

SCREW - 1/4" - 20 x 1/2" flange

$

$

Not available

33

WD-C43010

PLUG - drain

Note: (Included with radiator)

$

$

Not available

34

WD-C42772

SEAL - air intake 13.2"

$

$

Not available
