FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Seat, Lid And Rear Cover Parts Diagram

Front-Mount Riding Mower

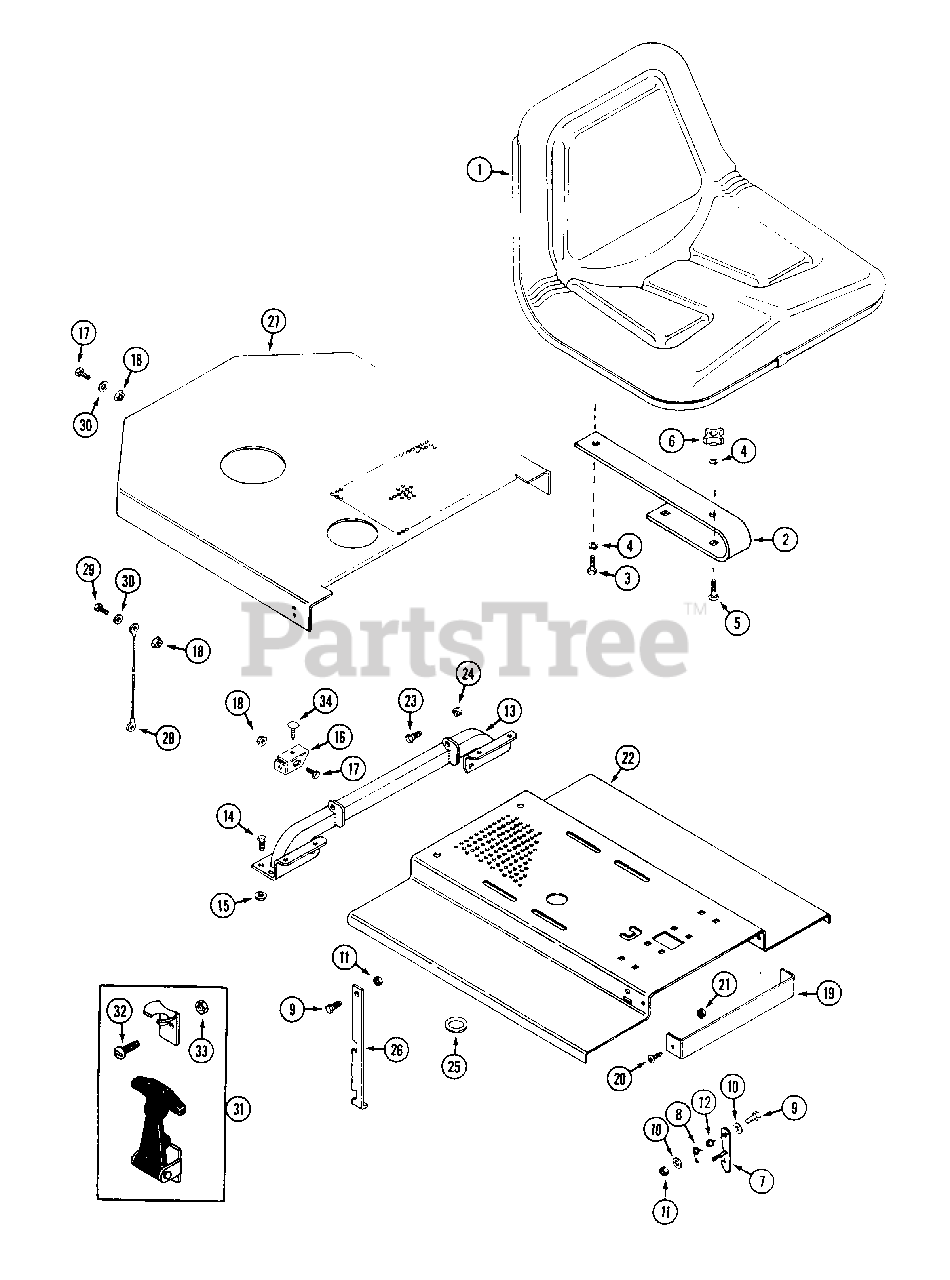

Seat, Lid And Rear Cover Parts Diagram

  • Title

1

White Outdoor WD-C43202

SEAT

$

$

Not available

2

White Outdoor WD-C43137

SPRING - seat

$

$

Not available

3

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

4

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

5

White Outdoor WD-111-204

BOLT - carriage 6/16" - 18 x 1-1/4"

$

$

Not available

6

White Outdoor WD-C43438

KNOB - seat adjust

$

$

Not available

7

WD-C44481

LATCH lid

$

$

Not available

8

White Outdoor WD-C37851

SPRING - latch

$

$

Not available

9

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

10

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

11

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

12

WD-C44498

SPACER - latch

$

$

Not available

13

WD-C45318

TUBE - seat support

$

$

Not available

14

WD-113-118

BOLT - 5/16" - 18 x 5/8"

$

$

Not available

15

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

16

WD-C45336

BRACKET - retainer R.H.

Note: (Shown)

$

$

Not available

WD-C45337

BRACKET - retainer L.H.

$

$

Not available

17

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

18

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

19

WD-C37826

PLATE - filler

$

$

Not available

20

WD-182-528

SCREW - #10 - 32 x 1/2"

$

$

Not available

21

White Outdoor WD-193-1000

NUT - #10 - 32 lock

$

$

Not available

22

WD-C45352

LID - seat

$

$

Not available

23

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

24

WD-131-69

NUT - lock

$

$

Not available

25

WD-C25165

GROMMET - 1" x 1-3/4"

$

$

Not available

26

WD-C45471

PROP - seat lid

$

$

Not available

27

White Outdoor WD-C45300

COVER - rear

$

$

Not available

28

WD-C45472

LANYARD

$

$

Not available

29

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

30

WD-195-518

WASHER - .281" x .625

$

$

Not available

31

White Outdoor WD-C43326

LATCH - "T" handle

$

$

Not available

32

WD-182-571

SCREW - #6 - 32 x 1/2"

$

$

Not available

33

WD-193-1003

NUT - #6 - 32 lock

$

$

Not available

34

White Outdoor WD-C35067

RETAINER - plastic

$

$

Not available
