FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Steering Parts Diagram

Front-Mount Riding Mower

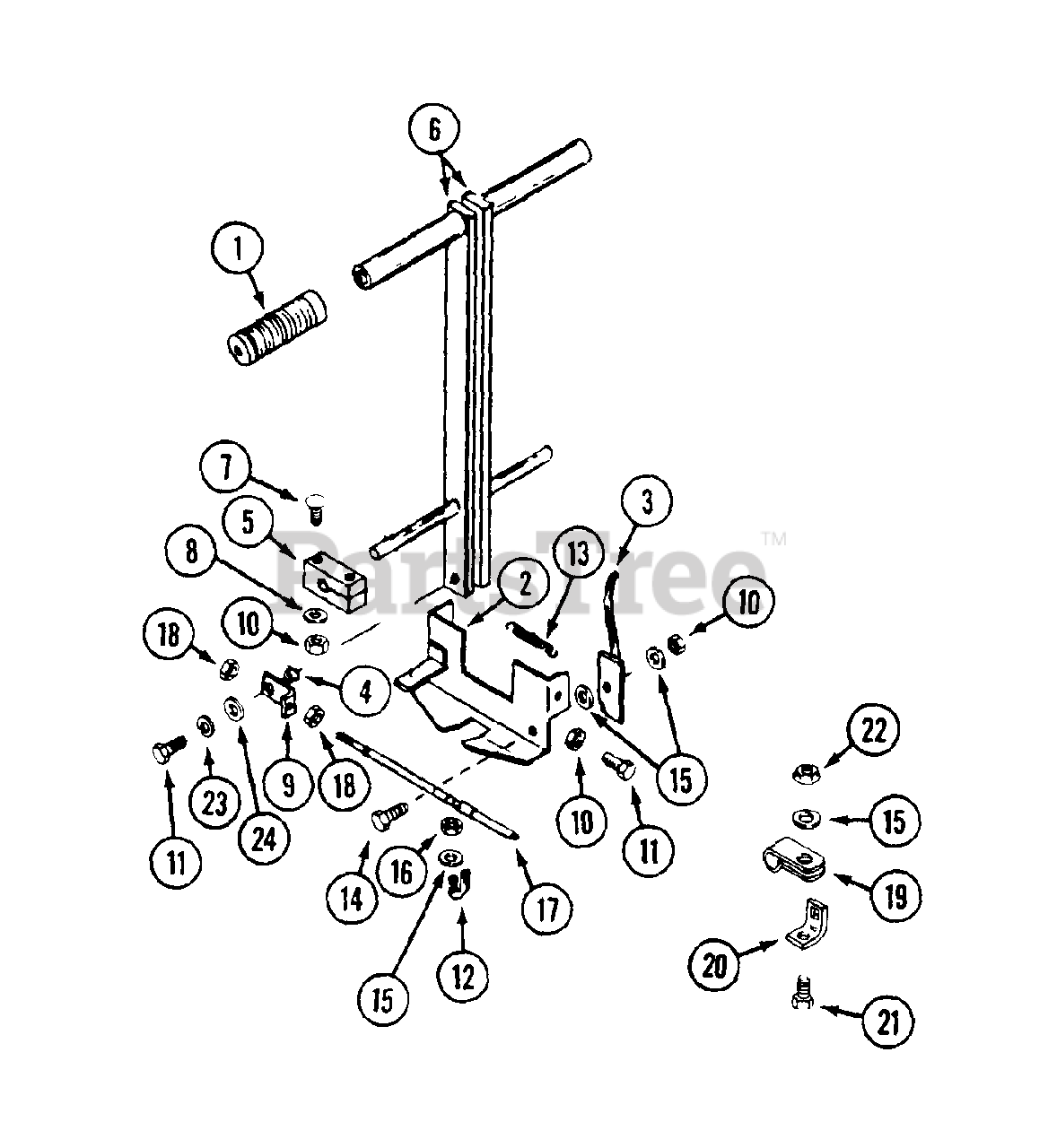

Steering Parts Diagram

  • Title
1

White Outdoor WD-C37631

GRIP - handle

$

$

Not available

2

White Outdoor WD-C37840

BRACKET - lever lock

$

$

Not available

3

White Outdoor WD-C37841

LATCH - lever lock

$

$

Not available

4

White Outdoor WD-C42895

BUSHING - steering cable

$

$

Not available

5

White Outdoor WD-C37842

BLOCK - bearing

$

$

Not available

6

White Outdoor WD-C44915

LEVER - steering

$

$

Not available

7

WD-111-114

BOLT - 1/4" - 20 x 1-1/2" carriage

$

$

Not available

8

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

9

White Outdoor WD-C37713

BRACKET - steering cable end

$

$

Not available

10

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

11

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

12

White Outdoor WD-C37718

CLAMP - cable

$

$

Not available

13

White Outdoor WD-C37837

SPRING - lever lock

$

$

Not available

14

WD-C42359

BOLT - 1/4" - 20 x 2"

$

$

Not available

15

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

16

WD-131-69

NUT - 5/16" - 18 lock

$

$

Not available

17

White Outdoor WD-C43180

CABLE - steering

$

$

Not available

18

WD-193-1001

NUT - 1/4" - 28"

$

$

Not available

19

WD-C33218

CLAMP

$

$

Not available

20

WD-C45387

STOP - brake lever

$

$

Not available

21

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

22

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

23

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

24

White Outdoor WD-195-520

WASHER - 1/4"

$

$

Not available
