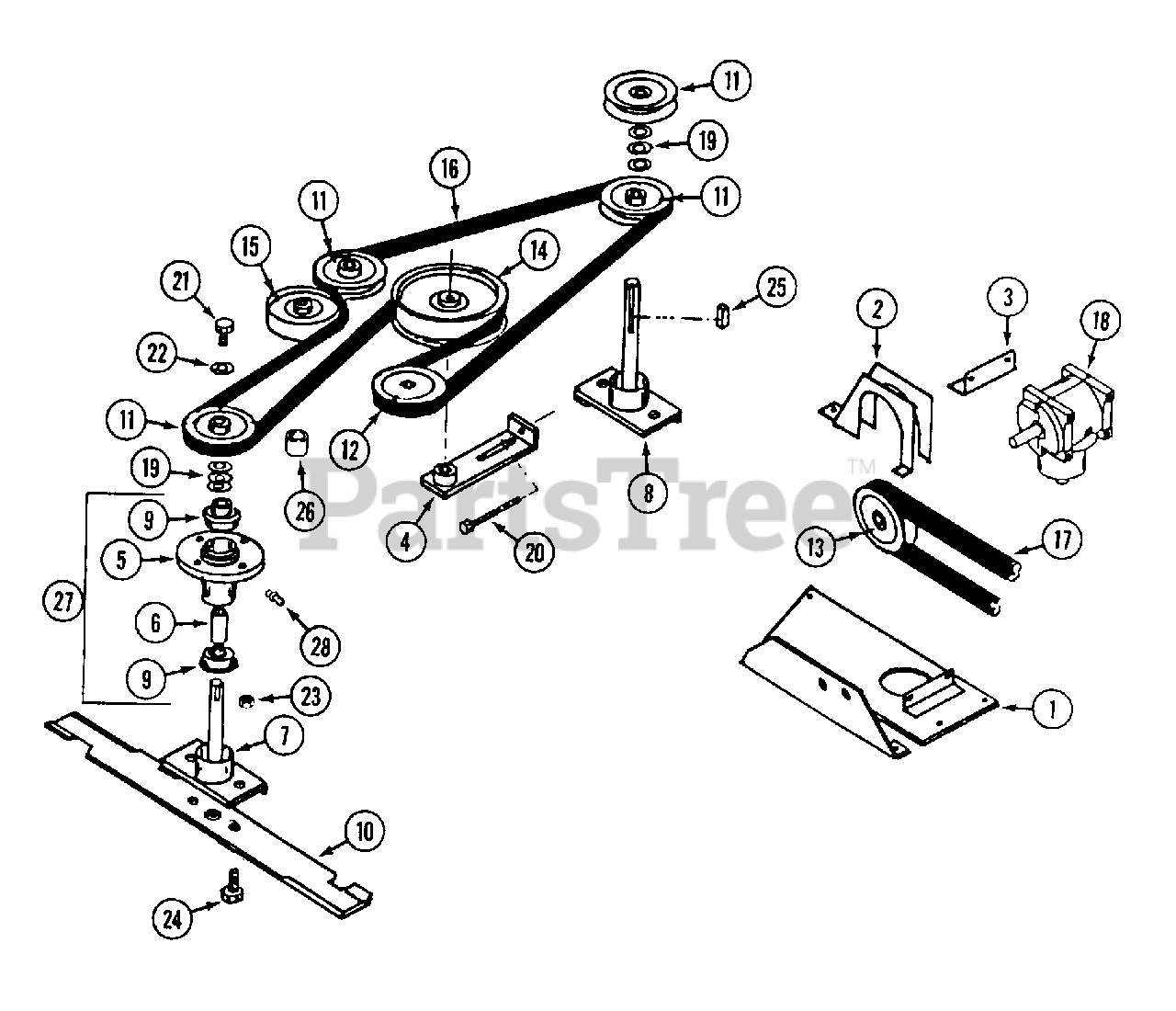

FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) > Parts Diagrams (30) > 62" Mower Drive

  • Title
WD-331-0004

1

MOUNT - gear box

Part# WD-331-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-311-0002

2

GUARD - belt

Part# WD-311-0002

Note: (Early production)

OEM Warranty Repair Part for White Outdoor

Not available

WD-310-0006

3

ANGLE - gear box mount

Part# WD-310-0006

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0012

4

TIGHTENER - belt

Part# WD-330-0012

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0031

5

HOUSING - spindle

Part# WD-300-0031

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0034

6

SPACER - spindle

Part# WD-300-0034

Note: Use before S/N: 011502022

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45885

6

SPACER - spindle

Part# WD-C45885

Note: Use on S/N 011502023 and after.

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44132

7

SHAFT - spindle, short

Part# WD-C44132

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44134

8

SHAFT - spindle, long

Part# WD-C44134

OEM Warranty Repair Part for White Outdoor

Not available

~NSS

9

BEARING - spindle

Part# ~NSS

Note: (Use C45886 (2) and C45885). Use before S/N: 011502022

Not available

WD-C45886

9

BEARING - spindle 7/8"

Part# WD-C45886

Note: Use on S/N 011502023 and after.

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44138

10

BLADE

Part# WD-C44138

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2512

11

PULLEY - spindle

Part# WD-900-2512

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2510

12

PULLEY - gear box output

Part# WD-900-2510

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2525

13

PULLEY - gear box input

Part# WD-900-2525 (Superseded to WD-C37892)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2521

14

PULLEY - idler, large

Part# WD-900-2521 (Superseded to WD-C37933)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.69

WD-900-2522

15

PULLEY - idler, small

Part# WD-900-2522 (Superseded to WD-C45655)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3008B

16

BELT - deck

Part# WD-900-3008B

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44241

17

BELT - drive

Part# WD-C44241

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5842

18

GEAR BOX - angle drive

Part# WD-900-5842

Note: (See "Gear Box Curtis model" illustration and parts list for service.)

OEM Warranty Repair Part for White Outdoor

Not available

WD-C42775

18

GEAR BOX - angle drive

Part# WD-C42775

Note: (See "Gear Box Superior model" illustration and parts list for service.)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6002

19

WASHER - spacer

Part# WD-900-6002

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6034

20

BOLT - 1/4" - 20 x 4"

Part# WD-900-6034

OEM Warranty Repair Part for White Outdoor

Not available

WD-114-201

21

BOLT - 3/8" - 24 x 1-1 /4"

Part# WD-114-201

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45846

22

WASHER - spindle

Part# WD-C45846

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-1216

23

NUT - 3/8" - 16 lock

Part# WD-131-1216

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-268

24

BOLT - 3/8" - 16 x 1"

Part# WD-113-268

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0021

25

KEY - 3/16" x 3/16" x 1"

Part# WD-300-0021 (Superseded to 914-0105)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

WD-300-0016

26

SPACER - idler pulley

Part# WD-300-0016 (Superseded to WD-C37937)

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45860

27

HOUSING ASSEMBLY - spindle

Part# WD-C45860

Note: (Includes ref. 6, 6, 9)

OEM Warranty Repair Part for White Outdoor

Not available

WD-219-20

28

FITTING - grease 1/4" - 28

Part# WD-219-20

OEM Warranty Repair Part for White Outdoor

Not available
