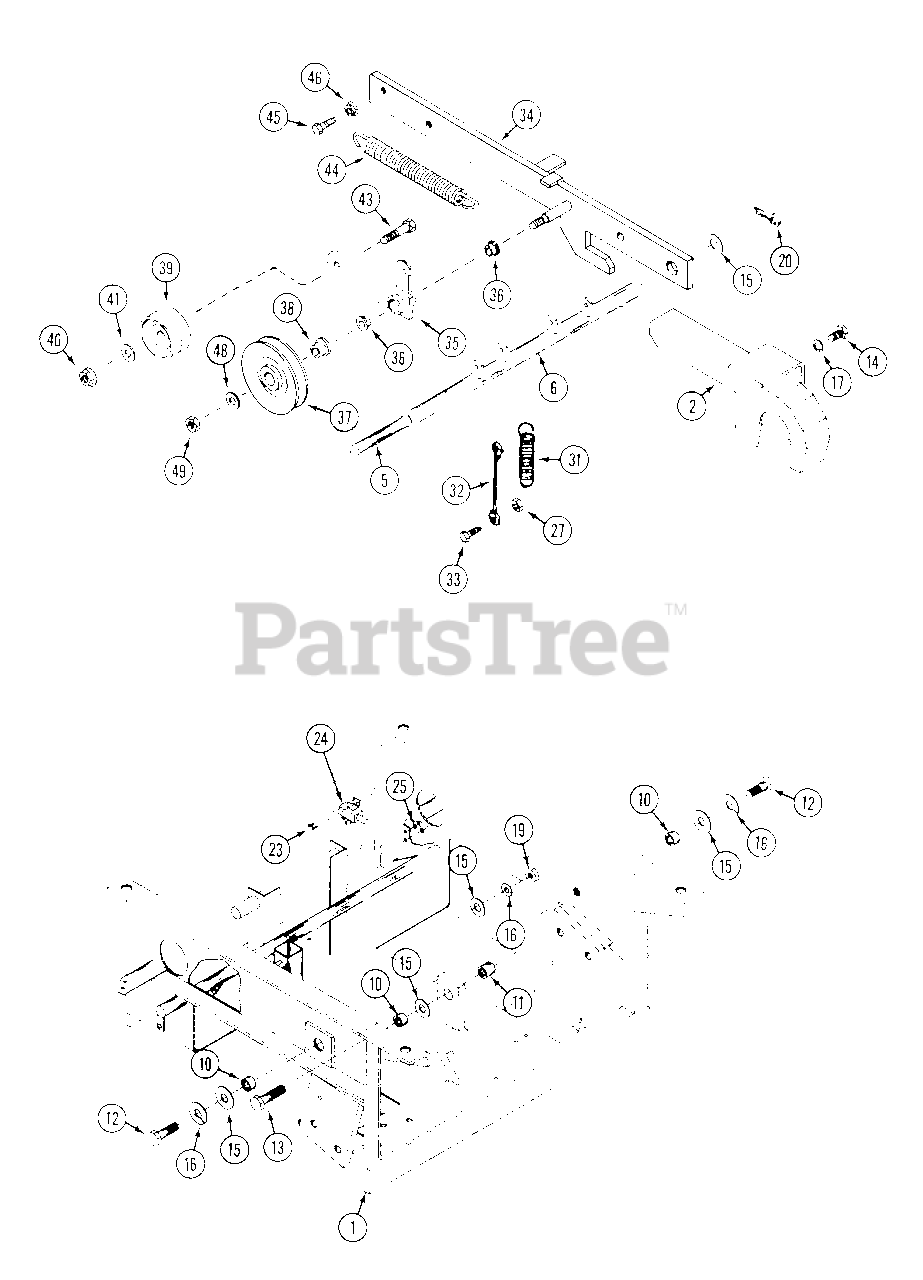

FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) > Parts Diagrams (30) > Base Assembly

  • Title
WD-C42892

1

BASE

Part# WD-C42892

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44403

2

GUARD - belt

Part# WD-C44403

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-1182

?3

NUT - 1/2" - 13

Part# WD-113-1182

Not available

WD-195-533

?4

WASHER

Part# WD-195-533

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0022

5

PIN - cross bar

Part# WD-300-0022

Not available

WD-300-0014

6

BAR - cross

Part# WD-300-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0041

?7

TUBE - wire

Part# WD-300-0041

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-0023

?8

LOCK - forward nose down

Part# WD-111-0023

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0013S

10

BUSHING - deck lift arm (3/8" long)

Part# WD-300-0013S (Superseded to WD-C37576)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0013

11

BUSHING - pivot (1/2" long)

Part# WD-300-0013 (Superseded to WD-C37586)

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-417

12

BOLT - 1/2" - 13 x 1-1/4"

Part# WD-113-417

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-441

13

BOLT - 1/2" - 13 x 2-1/4"

Part# WD-113-441

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-102

14

BOLT - 5/16" - 18 x 3/4"

Part# WD-113-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-106

15

WASHER - 1/2"

Part# WD-195-106

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-23

16

LOCKWASHER - 1/2"

Part# WD-192-23

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-20

17

LOCKWASHER - 5/16"

Part# WD-192-20

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-105

19

NUT - 1/2" - 13

Part# WD-129-105 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

WD-132-310

20

PIN - cotter 1/8" x 1"

Part# WD-132-310

Not available

WD-C37597

23

SCREW - machine #10 - 32 x 5/8"

Part# WD-C37597

Not available

WD-900-2029

24

SWITCH - safety

Part# WD-900-2029

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6150

25

NUT - lock #10 - 32

Part# WD-900-6150

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-71

27

NUT - lock 1/4" - 20

Part# WD-131-71

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-103

?28

NUT - 3/8" - 16

Part# WD-129-103 (Superseded to 712-04065)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

WD-192-21

?29

LOCKWASHER - 3/8"

Part# WD-192-21 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

WD-113-257

?30

BOLT - 3/8" - 16 x 2-1/2"

Part# WD-113-257

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5516

31

SPRING - lift assist

Part# WD-900-5516

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5518

32

CABLE - lift

Part# WD-900-5518

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-4

33

BOLT - 1/4" - 20 x 1"

Part# WD-113-4

Not available

WD-C45099

34

ARM - deck L.H.

Part# WD-C45099

Note: (Shown)

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44250

ARM - deck R.H.

Part# WD-C44250

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45095

35

ARM - idler

Part# WD-C45095

OEM Warranty Repair Part for White Outdoor

Not available

WD-C27501

36

BEARING - flange

Part# WD-C27501

OEM Warranty Repair Part for White Outdoor

Not available

WD-C25370

37

PULLEY - "V" idler

Part# WD-C25370

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45102

38

BUSHING - pulley

Part# WD-C45102

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45121

39

PULLEY

Part# WD-C45121 (Superseded to WD-C48400)

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-938

40

NUT - 3/8" - 16 lock, flange

Part# WD-131-938

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-104

41

WASHER - 3/8"

Part# WD-195-104

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-219

43

BOLT - 3/8" - 16 x 2"

Part# WD-113-219

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44242

44

SPRING - extension

Part# WD-C44242

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-103

45

BOLT - 5/16" - 18 x 1"

Part# WD-113-103

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-911

46

NUT - 5/16" - 18 flange lock

Part# WD-131-911 (Superseded to 712-3004A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

48

UNKNOWN

Part#

Not available

49

UNKNOWN

Part#

Not available
