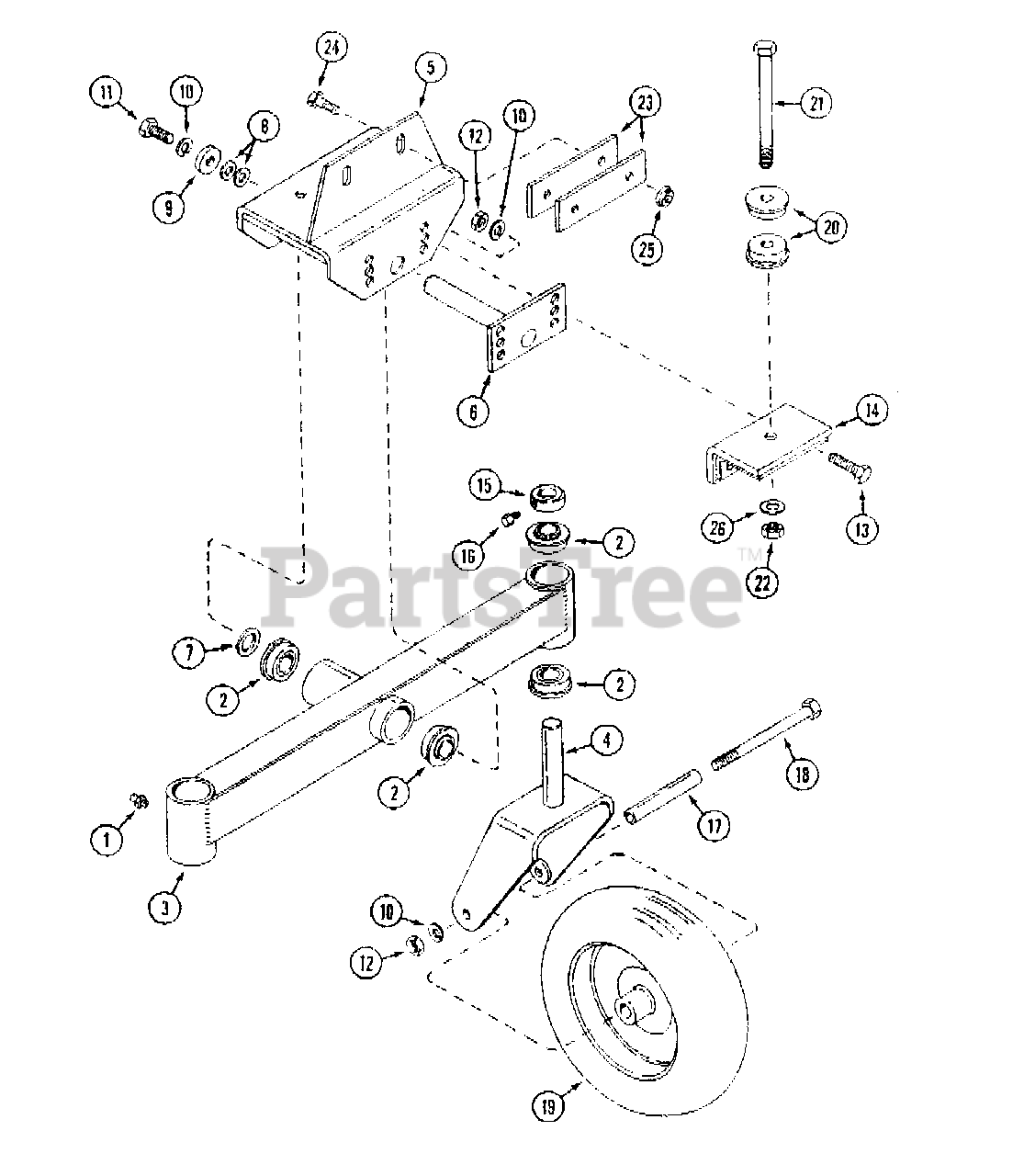

FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) > Parts Diagrams (30) > DTW 10 Dual Tail Wheel

  • Title
WD-219-20

1

FITTING - lubrication 1/4" - 28

Part# WD-219-20

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37824

2

BEARING - ball 1"

Part# WD-C37824

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45610

3

AXLE - dual wheel

Part# WD-C45610

Not available

WD-C45645

4

FORK - wheel

Part# WD-C45645

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45610

5

MOUNT - axle

Part# WD-C45610

Not available

WD-C45689

6

ROD - axle pivot

Part# WD-C45689

Not available

WD-C14919

7

WASHER - 1" x 1-3/4"

Part# WD-C14919

Not available

WD-C37004

8

WASHER - 1/2" x 1"

Part# WD-C37004

Not available

WD-C45841

9

WASHER - 1/2" x 1-3/8"

Part# WD-C45841

Not available

WD-192-23

10

LOCKWASHER - 1/2"

Part# WD-192-23

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-417

11

BOLT - 1/2" - 13 x 1-1/4"

Part# WD-113-417

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-105

12

NUT - 1/2' - 13

Part# WD-129-105 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

WD-113-412

13

BOLT - 1/2" - 13 x 1-3/4"

Part# WD-113-412

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45708

14

MOUNT - axle, front extension

Part# WD-C45708

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37860

15

COLLAR - set 1"

Part# WD-C37860

OEM Warranty Repair Part for White Outdoor

Not available

WD-85-58

16

SCREW - set 6/16" - 18 x 1/2" square head

Part# WD-85-58

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37915

17

TUBE - axle

Part# WD-C37915

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-448

18

BOLT - 1/2" - 13 x 7"

Part# WD-113-448

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37869

19

WHEEL ASSEMBLY

Part# WD-C37869

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37872

BEARING - wheel

Part# WD-C37872

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37870

TIRE - 1 3 x 5. 00 - 6

Part# WD-C37870

Not available

WD-C37871

RIM

Part# WD-C37871

Not available

WD-C45711

20

BUSHING - tail wheel hub

Part# WD-C45711

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-646

21

BOLT - 5/8" - 11 x 7-1/2"

Part# WD-113-646

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-2606

21

BOLT - 5/8" - 11 x 11"

Part# WD-113-2606

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-356

22

NUT - 5/8" - 11

Part# WD-131-356

OEM Warranty Repair Part for White Outdoor

Not available

WD-C45746

23

PLATE - stiffener

Part# WD-C45746

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-208

24

BOLT - 3/8" - 16 x l-1/4"

Part# WD-113-208

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-1352

25

NUT - 3/8" - 16 flange lock

Part# WD-131-1352

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-541

26

WASHER - 5/8" x 1-1/2"

Part# WD-195-541

OEM Warranty Repair Part for White Outdoor

Not available
