FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996)

Front-Mount Riding Mower

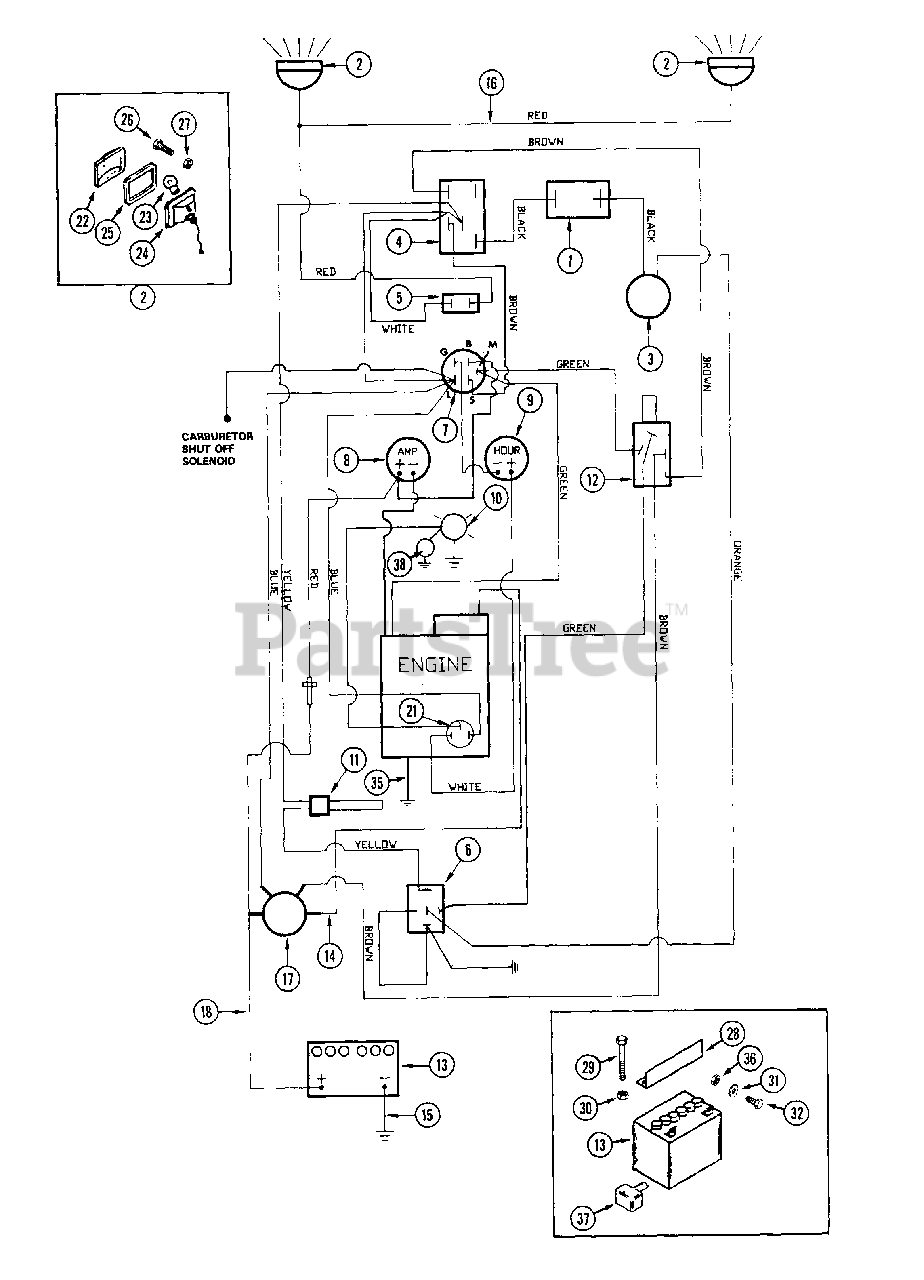

FR-200 (136-015-190) - White Outdoor Front-Mount Riding Mower (1996) > Parts Diagrams (30) > Electrical System Use Before S/N: A235WJ

  • Title
WD-C44265

HARNESS - wire

Part# WD-C44265

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2044

1

BREAKER - circuit, 10 amp

Part# WD-900-2044

OEM Warranty Repair Part for White Outdoor

Not available

~NSS

2

HEADLIGHT - (use C32178 and C44075)

Part# ~NSS

Not available

WD-900-5581

3

CLUTCH - PTO, electric

Part# WD-900-5581

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2028

4

SWITCH - PTO

Part# WD-900-2028 (Superseded to 925-3022)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.37

WD-C44469

NUT - 1/2" - 27 (PTO switch retaining)

Part# WD-C44469

OEM Warranty Repair Part for White Outdoor

Not available

WD-C31620

NUT - 1/2" - 27 black (PTO switch retaining)

Part# WD-C31620

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2027

5

SWITCH - headlight

Part# WD-900-2027 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.77

WD-900-2037

6

RELAY

Part# WD-900-2037 (Superseded to WD-C37515)

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-3

BOLT - 1/4" - 20 x 3/4" (relay mounting)

Part# WD-113-3

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-19

LOCKWASHER - 1/4" (relay mounting)

Part# WD-192-19

Not available

WD-121-101

NUT - 1/4" - 20 (relay mounting)

Part# WD-121-101

Not available

WD-900-2003

7

SWITCH - ignition (also use C32407)

Part# WD-900-2003 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.44

WD-C32407

KEY - ignition

Part# WD-C32407

OEM Warranty Repair Part for White Outdoor

Not available

WD-C32397

CAP - nut

Part# WD-C32397

Not available

WD-193-63

LOCKWASHER - 5/8"

Part# WD-193-63

Not available

WD-C32396

NUT - 5/8" - 32

Part# WD-C32396

Not available

WD-900-2002

8

AMMETER

Part# WD-900-2002

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2023

9

METER - hour

Part# WD-900-2023

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2041

10

LIGHT - oil

Part# WD-900-2041

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2001

11

SWITCH - seat

Part# WD-900-2001

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2029

12

SWITCH - safety

Part# WD-900-2029

Note: (enlarge mounting hole if required)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2060

13

BATTERY - 12 volt

Part# WD-900-2060

Not available

WD-C44261

14

WIRE - starter

Part# WD-C44261

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2009

15

CABLE - ground

Part# WD-900-2009

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2014

16

WIRE - headlight

Part# WD-900-2014

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2005

17

SOLENOID - starting

Part# WD-900-2005

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-3

BOLT - 1/4" - 20 x 3/4" (solenoid mounting)

Part# WD-113-3

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-19

LOCKWASHER - 1/4" (solenoid mounting)

Part# WD-192-19

Not available

WD-129-101

NUT - 1/4" - 20 (solenoid and relay mounting)

Part# WD-129-101

Not available

WD-192-20

LOCKWASHER - 5/16" (solenoid studs)

Part# WD-192-20

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-102

NUT - 5/16" - 18 (solenoid studs)

Part# WD-129-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-18

LOCKWASHER - 3/16" (solenoid studs)

Part# WD-192-18

Not available

WD-129-37

NUT - #10 - 32 (solenoid studs)

Part# WD-129-37

Not available

WD-129-6

NUT - #8 - 32 (solenoid studs)

Part# WD-129-6

Not available

WD-900-2010

18

WIRE - battery positive to solenoid

Part# WD-900-2010

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5017

21

SWITCH - oil light

Part# WD-900-5017 (Superseded to WD-C37531P)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2024

22

LENS - headlight

Part# WD-900-2024 (Superseded to WD-C32178)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2025

23

BULB - headlight

Part# WD-900-2025 (Superseded to 925-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.34

WD-900-2026

24

RECEPTICAL - headlight

Part# WD-900-2026

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2068

25

GASKET - headlight

Part# WD-900-2068

Not available

WD-113-4

26

BOLT - 1/4" - 20 x 1"

Part# WD-113-4

Not available

WD-129-101

27

NUT - 1/4" - 20

Part# WD-129-101

Not available

WD-200-0019

28

BRACKET - battery hold down

Part# WD-200-0019

OEM Warranty Repair Part for White Outdoor

Not available

WD-C38677

29

BOLT - 1/4" - 20 x 7"

Part# WD-C38677

Not available

WD-131-71

30

NUT - 1/4" - 20 lock

Part# WD-131-71

OEM Warranty Repair Part for White Outdoor

Not available

WD-195-102

31

WASHER - 1/4"

Part# WD-195-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-3

32

BOLT - 1/4" - 20 x 3/4"

Part# WD-113-3

OEM Warranty Repair Part for White Outdoor

Not available

WD-131-934

?33

NUT - 1/4" - 20 flange lock

Part# WD-131-934

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2073

35

WIRE - engine ground

Part# WD-900-2073

Not available

WD-129-101

36

NUT - 1/4" - 20

Part# WD-129-101

Not available

WD-200-0021

37

COVER - terminal

Part# WD-200-0021

OEM Warranty Repair Part for White Outdoor

Not available

WD-C43048

38

HORN - warning

Part# WD-C43048

OEM Warranty Repair Part for White Outdoor

Not available
