FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Drive Assembly L.H. Parts Diagram

Front-Mount Riding Mower

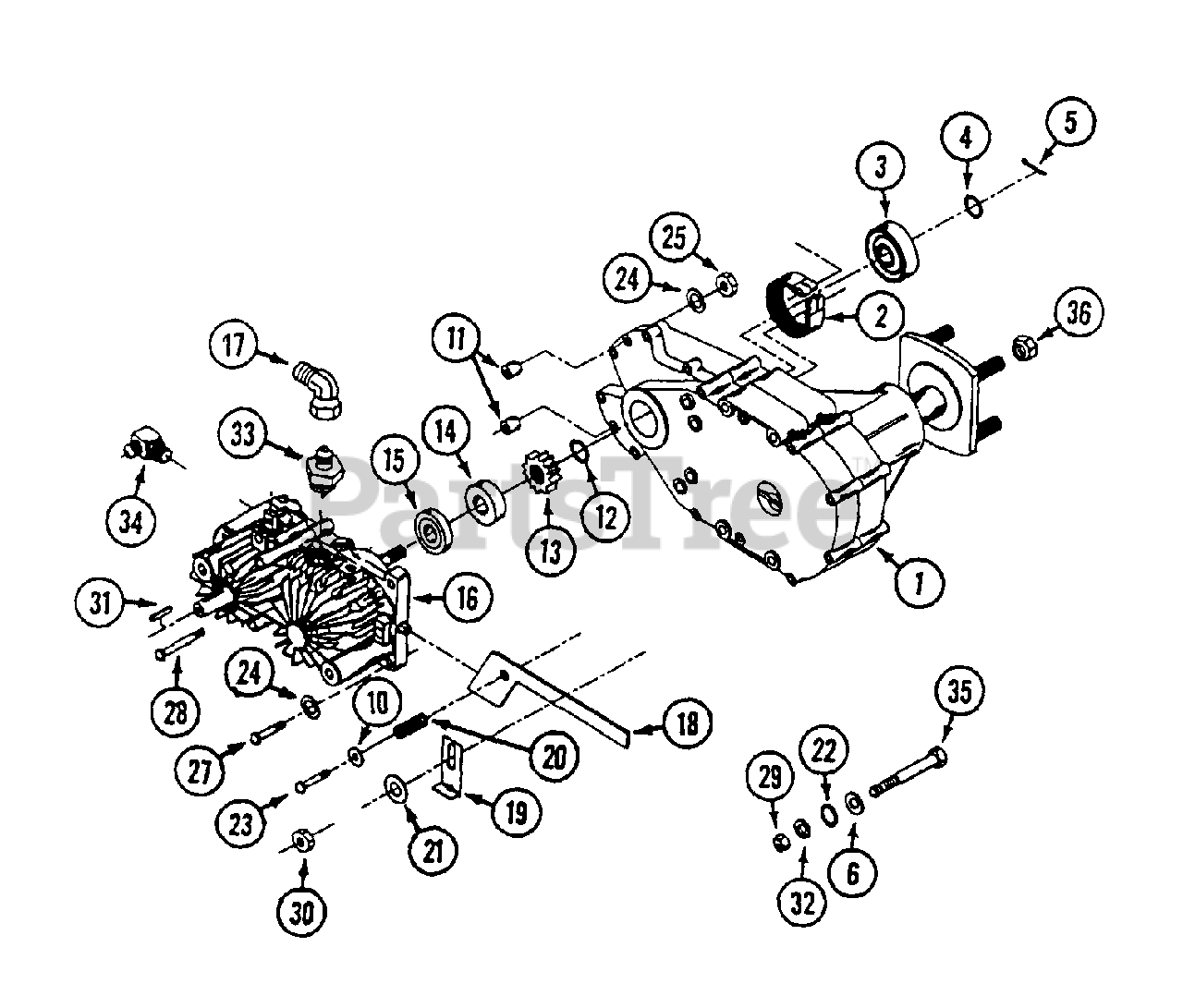

Drive Assembly L.H. Parts Diagram

  • Title

1

White Outdoor WD-C46087

TRANSMISSION - ZT

Note: (See "Transmission-ZT Drive" illustration and parts list for repairs)

$

$

Not available

2

White Outdoor WD-C37730

BAND - brake

$

$

Not available

3

White Outdoor WD-C37731

DRUM - brake

$

$

Not available

4

White Outdoor WD-C37732

RING - snap

$

$

Not available

5

WD-132-320

PIN - cotter 3/32" x 3/4"

$

$

Not available

6

WD-195-525

WASHER - .40" x .81"

$

$

Not available

10

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

11

White Outdoor WD-C37736

SPACER

$

$

Not available

12

White Outdoor WD-C37737

RING - snap
(Superseded to 716-0865)

$4.49

$

In Stock, Qty 6

0

13

White Outdoor WD-C37738

GEAR

$

$

Not available

14

White Outdoor WD-C37739

BEARING
(Superseded to 941-0155)

$22.99

$

In Stock, Qty 20+

0

15

White Outdoor WD-C37740

SPACER

$

$

Not available

16

White Outdoor WD-C45398

PUMP - hydro L.H.

Note: (See "Hydrostatic Pump-ZT Drive" illustration and parts list for repairs)

$

$

Not available

17

White Outdoor WD-218-980

FITTING - 90° male to female

$

$

Not available

18

WD-C46165

LEVER - transmission dump LH.

$

$

Not available

19

WD-C37743

BRACKET - dump lever stop

$

$

Not available

20

White Outdoor WD-C37744

SPRING - compression

$

$

Not available

21

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

22

White Outdoor WD-C45900

"O" RING - mounting

$

$

Not available

23

WD-C37747

BOLT - dump lever

$

$

Not available

24

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

25

White Outdoor WD-129-102

NUT - 5/16" - 18

$

$

Not available

27

WD-113-120

BOLT - 5/16" - 18 x 1-3/4"

$

$

Not available

28

White Outdoor WD-113-134

BOLT - 5/16" - 18 x 7-1/2"

$

$

Not available

29

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor WD-131-1181

NUT - 3/8" - 16 lock

$

$

Not available

31

White Outdoor WD-C37752

KEY-5 x 5 x 25mm

$

$

Not available

32

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

33

WD-218-5354

FITTING - male adaptor pump outlet

$

$

Not available

34

White Outdoor WD-218-5278

FITTING - male adaptor 90° pump inlet

$

$

Not available

35

White Outdoor WD-113-203

BOLT - 3/8" - 16 x 3-1/2" mounting

$

$

Not available

35

WD-113-267

BOLT - 3/8" - 16 x 4" mounting

$

$

Not available

White Outdoor WD-C37763

WHEEL ASSEMBLY

Note: (Not shown)

$

$

Not available

White Outdoor WD-C37652

TIRE - 18 x 9.50-8

$

$

Not available

White Outdoor WD-C37656

RIM - wheel

$

$

Not available

36

White Outdoor WD-C37667

NUT - lug 1/2" - 20

$

$

Not available
