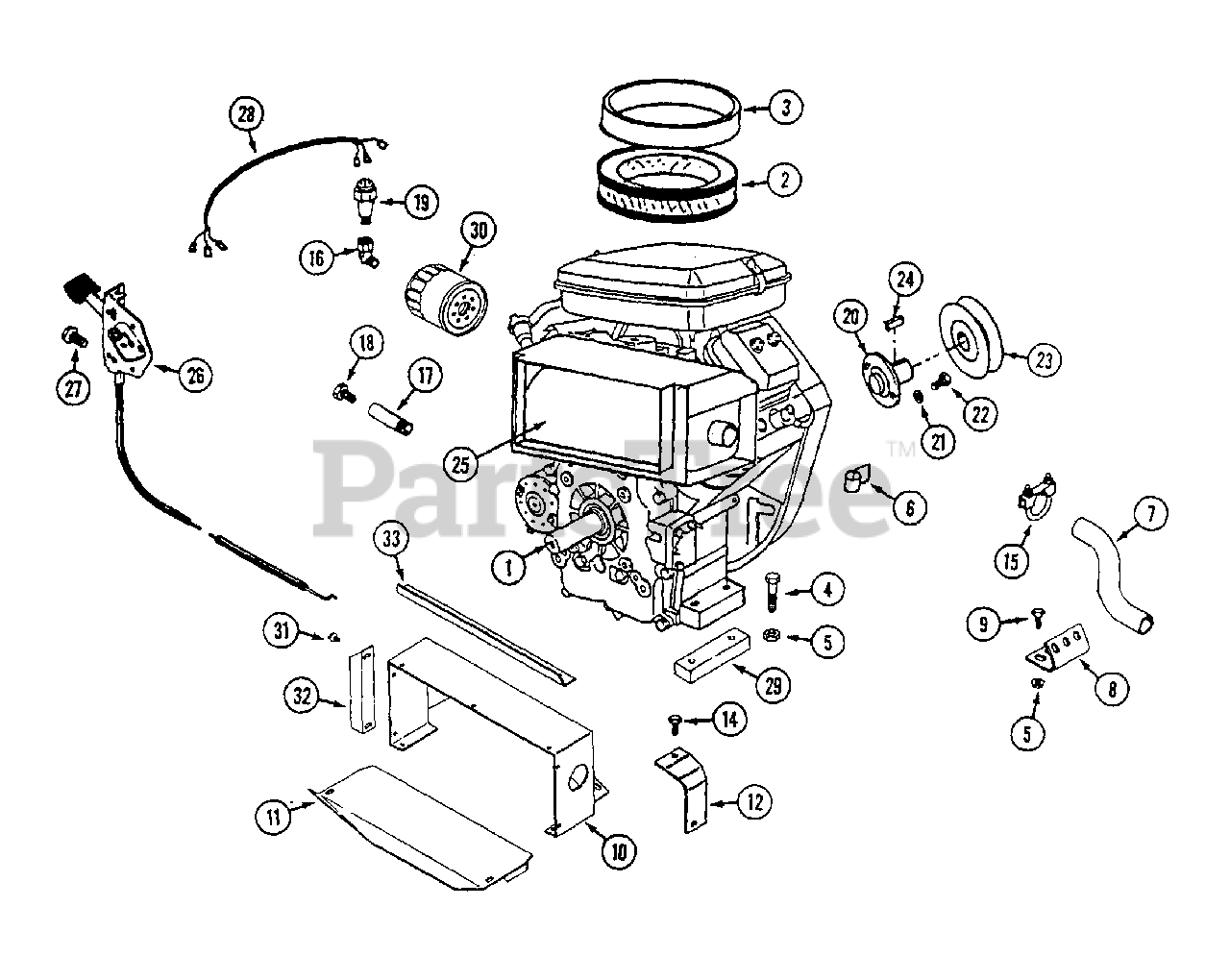

FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Engine And Attaching Parts - Briggs & Stratton Vanguard Model Parts Diagram

Front-Mount Riding Mower

Engine And Attaching Parts - Briggs & Stratton Vanguard Model Parts Diagram

  • Title

1

ENGINE - (20 hp)

Note: (Use before S/N J136WG). For model 361447

$

$

Not available

1

ENGINE - (20 hp)

Note: (Use S/N J136WG and after). For model 351447,

$

$

Not available

2

White Outdoor WD-C37544

ELEMENT - air cleaner
(Superseded to BS-394018S)

$25.99

$

In Stock, Qty 20+

0

3

White Outdoor WD-C37543

PRE-CLEANER
(Superseded to BS-272490S)

$5.49

$

In Stock, Qty 20+

0

4

WD-113-119

BOLT - 5/16" - 18 X 2-3/4"

$

$

Not available

5

WD-131-69

NUT - 5/16" - 18

$

$

Not available

6

WD-C32455

CLIP - "J"

$

$

Not available

7

White Outdoor WD-C46563

PIPE - exhaust

Note: (Use S/N J136WG and after)

$

$

Not available

7

White Outdoor WD-C44244

PIPE - exhaust

Note: (Use before S/N J136WG)

$

$

Not available

8

White Outdoor WD-C44243

BRACKET - exhaust pipe

$

$

Not available

9

White Outdoor WD-113-103

BOLT - 5/16" - 18 x 1"

$

$

Not available

10

WD-C46564

DUCT - muffler, upper

Note: (Use S/N J136WG and after)

$

$

Not available

10

White Outdoor WD-C45105

DUCT - muffler, upper

Note: (Use before S/N J136WG)

$

$

Not available

11

WD-C45108

DUCT - muffler, lower

Note: (Use before S/N J136WG)

$

$

Not available

11

White Outdoor WD-C46568

DUCT - bottom

Note: (Use S/N J136WG and after)

$

$

Not available

12

White Outdoor WD-C45111

SUPPORT - duct

$

$

Not available

14

White Outdoor WD-C45273

SCREW - M6 x 10

$

$

Not available

15

White Outdoor WD-C28294

CLAMP - exhaust

$

$

Not available

16

White Outdoor WD-221-411

FITTING - street elbow, 1/8" - 27 NPT 90°.

$

$

Not available

17

WD-C33949

NIPPLE - pipe 3.5"

$

$

Not available

18

WD-218-5154

PLUG - 1/2" - 20

$

$

Not available

19

White Outdoor WD-C46222

UNIT - oil sending

Note: (Use S/N L065WA and after)

$

$

Not available

19

White Outdoor WD-C37531

UNIT - oil sending
(Superseded to WD-C37531P)

Note: (Use before S/N L065WA)

$

$

Not available

20

White Outdoor WD-C37537

SHAFT - stub

$

$

Not available

21

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

22

White Outdoor WD-113-207

BOLT - 3/8" - 16 x 1"
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor WD-C37539

PULLEY - engine

Note: (Includes 83-55 set screw)

$

$

Not available

24

White Outdoor WD-C41015

KEY - 1/4" x 1/4" x 1"
(Superseded to 714-0128)

$4.49

$

In Stock, Qty 6

0

25

White Outdoor WD-C46507

MUFFLER

Note: (Use S/N J136WG and after)

$

$

Not available

25

White Outdoor WD-C44862

MUFFLER

Note: (Use before S/N J136WG)

$

$

Not available

26

White Outdoor WD-C37819

CABLE - choke

$

$

Not available

26

White Outdoor WD-C37820

CABLE - throttle

$

$

Not available

27

WD-C39403

SCREW - #12 X 1/2"

$

$

Not available

28

White Outdoor WD-C46218

HARNESS - wire

Note: (Use S/N L065WA and after)

$

$

Not available

28

WD-C42240

HARNESS - wire

Note: (Use before S/N L065WA)

$

$

Not available

29

White Outdoor WD-C46562

SPACER - engine mount

Note: (Use S/N J136WG and after)

$

$

Not available

30

White Outdoor WD-C34374

FILTER - oil
(Superseded to BS-491056)

$9.99

$

In Stock, Qty 20+

0

31

White Outdoor WD-187-1328

SCREW - #8 - 18 x 3/4"

$

$

Not available

32

White Outdoor WD-C46744

BRACKET - angle (short)

Note: (Use S/N J136WG and after)

$

$

Not available

33

White Outdoor WD-C46745

BRACKET - angle (long)

Note: (Use S/N J136WG and after)

$

$

Not available
