FR-200 (13A-015-190) - White Outdoor Front-Mount Riding Mower (1997) Hydraulic System (Use Before S/N J136WG) Parts Diagram

Front-Mount Riding Mower

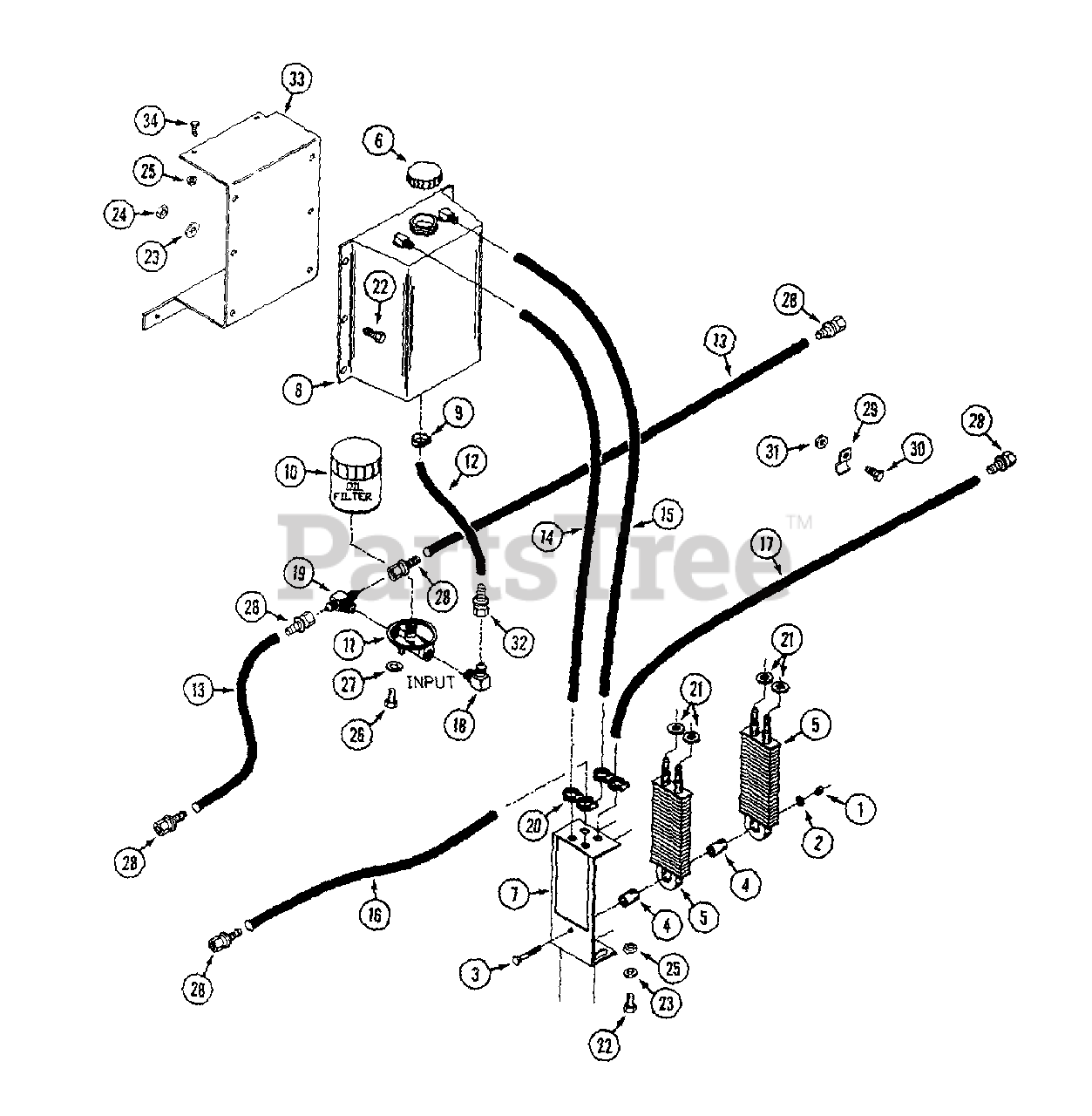

Hydraulic System (Use Before S/N J136WG) Parts Diagram

  • Title

1

WD-131-69

NUT - lock 5/16"

$

$

Not available

2

White Outdoor WD-195-103

WASHER - 5/16"

$

$

Not available

3

WD-113-119

BOLT - 5/16" - 18 x 2-3/4"

$

$

Not available

4

White Outdoor WD-C45495

BUSHING - rubber

$

$

Not available

5

White Outdoor WD-C37769

COOLER - oil

$

$

Not available

6

White Outdoor WD-C37639

CAP - oil tank

$

$

Not available

7

WD-C37772

MOUNT - oil cooler

$

$

Not available

8

White Outdoor WD-C37778

TANK - oil

$

$

Not available

9

White Outdoor WD-214-254

CLAMP - hose 5/8"
(Superseded to 726-0132)

$14.99

$

Usually ships in 3-6 days

0

10

White Outdoor WD-C37637

FILTER - oil

$61.99

$

Usually ships in 3-6 days

0

11

White Outdoor WD-C37636

HEAD - oil filter

$

$

Not available

12

White Outdoor WD-C42785

HOSE - 5/8" x 11"

Note: (12" cut to length)

$

$

Not available

13

White Outdoor WD-C42784

HOSE - hydraulic 3/8" x 13"

Note: (48" cut to length)

$

$

Not available

14

White Outdoor WD-C42784

HOSE - hydraulic 3/8" x 25"

Note: (48" cut to length)

$

$

Not available

15

White Outdoor WD-C42784

HOSE - hydraulic 3/8" x 27"

Note: (48" cut to length)

$

$

Not available

16

White Outdoor WD-C42784

HOSE - hydraulic 3/8" x 38"

Note: (48" cut to length)

$

$

Not available

17

White Outdoor WD-C42784

HOSE - hydraulic 3/8" x 24"

Note: (48" cut to length)

$

$

Not available

18

White Outdoor WD-218-5280

FITTING - male 90° adapter

$

$

Not available

19

WD-218-5182

FITTING - male tee adapter

$

$

Not available

20

WD-214-274

CLAMP - hose 3/8"

$

$

Not available

21

White Outdoor WD-C37787

GROMMET - 1/2" ID x 1" OD

$

$

Not available

22

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

23

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

24

WD-131-1102

NUT - 1/4" - 20 lock

$

$

Not available

25

White Outdoor WD-131-934

NUT - 1/4" - 20 flange lock

$

$

Not available

26

WD-121-21

BOLT - 1/4" - 20 x 1/2" flange

$

$

Not available

27

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

28

White Outdoor WD-C41986

FITTING - 3/8" hose barb x 3/8" FM JIC

$

$

Not available

29

WD-C32455

CLIP - "J"

$

$

Not available

30

White Outdoor WD-113-102

BOLT - 5/16" x 18 x 3/4"

$

$

Not available

31

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

32

White Outdoor WD-C38794

FITTING - 5/8" hose barb x 1/2" FM JIC

$

$

Not available

33

WD-C46083

MOUNT - oil tank

$

$

Not available

34

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

?35

WD-C42690

FITTING - 90°.

$

$

Not available
