  • Title
1

WD-321-0000

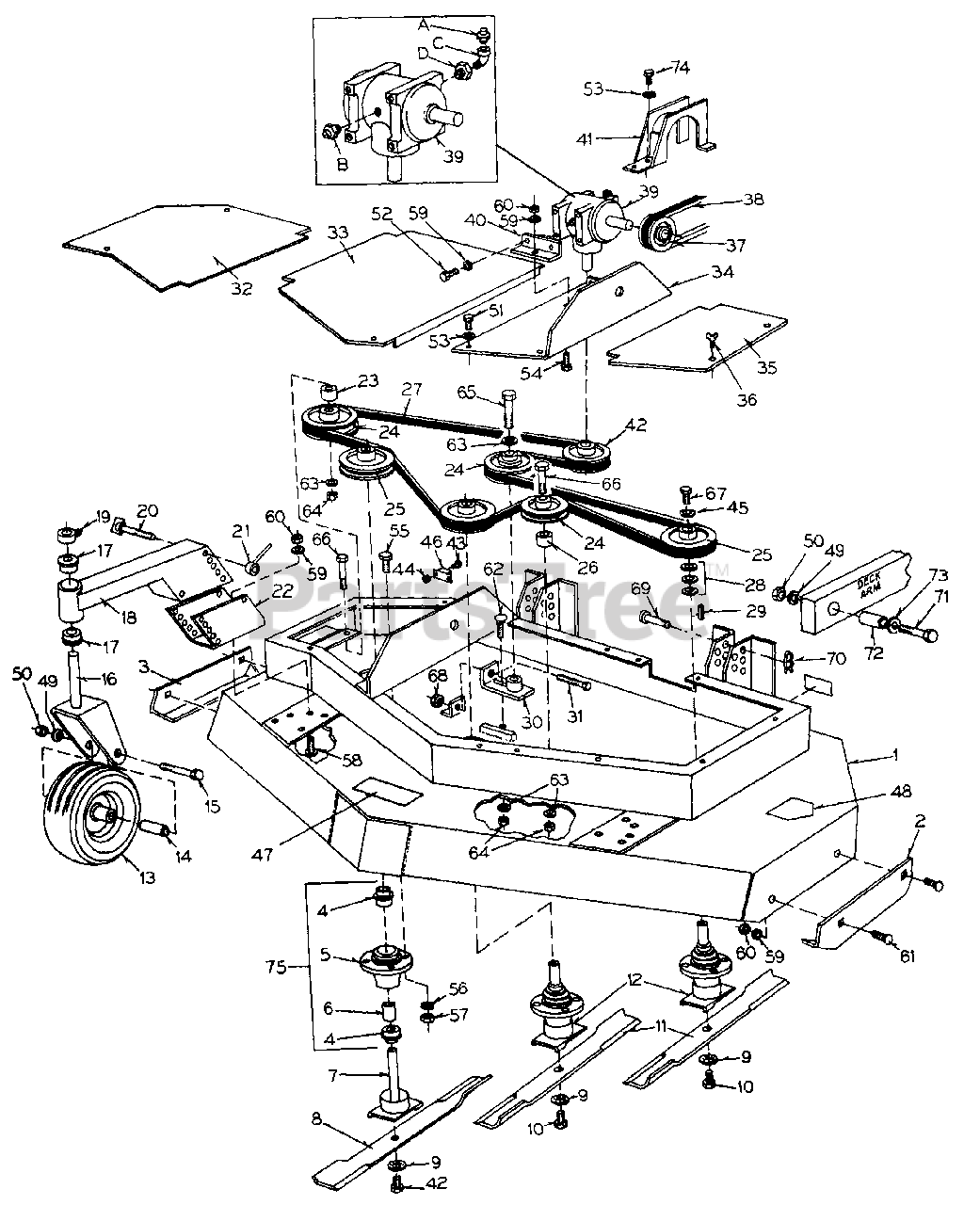

Rear Discharge Deck, 52"

$

$

Not available

$

$

Not available

$

$

Not available

4

White Outdoor WD-900-3506

Spindle Bearing, 7/8"
(Superseded to WD-C42786P)

Note: (ER-14)

$88.99

$

In Stock, only 1 left!

0

5

White Outdoor WD-300-0025

Spindle Housing

$

$

Not available

6

White Outdoor WD-300-0027

Spindle Spacer

$

$

Not available

7

White Outdoor WD-321-0004

Spindle Shaft, LH Rotation

$

$

Not available

8

White Outdoor WD-900-5914

Blade, LH Rotation

Note: (5814LH)

$

$

Not available

9

$

$

Not available

10

White Outdoor WD-900-6080

Hex Bolt, 3/8-24 x 1 1/4", GR5
(Superseded to WD-114-201)

$

$

Not available

11

White Outdoor WD-900-5814

Blade, RH Rotation

$

$

Not available

12

White Outdoor WD-300-0026

Spindle Shaft, 7/8"
(Superseded to WD-C37883)

$

$

Not available

13

White Outdoor WD-900-4004

Gauge Wheel Assembly

$

$

Not available

White Outdoor WD-900-4006

Tire, 11 x 4.00-5

$

$

Not available

$

$

Not available

White Outdoor WD-900-3505

Wheel Assembly Bearing

Note: (ASF0108-6)

$

$

Not available

14

White Outdoor WD-200-0017

Axle
(Superseded to WD-C37915)

$

$

Not available

15

White Outdoor WD-900-6133

Hex Bolt, 1/2-13 x 6 1/2", GR2

$

$

Not available

16

White Outdoor WD-330-0007

Gauge Wheel Fork

$

$

Not available

17

White Outdoor WD-900-3501

Drive Wheel Bearing, 1"

Note: (64F64PP)

$

$

Not available

18

White Outdoor WD-300-0043

Gauge Wheel Mount

$

$

Not available

19

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

20

White Outdoor WD-900-6096

Wing Bolt, 3/8-16 x 4 1/2"

$

$

Not available

21

White Outdoor WD-900-6092

Handle Nut, 3/8-16

$

$

Not available

22

White Outdoor WD-300-0044

Gauge Wheel Mount Bracket

$

$

Not available

23

White Outdoor WD-321-0005

Idler Pulley Spacer

$

$

Not available

24

White Outdoor WD-900-2558

Idler Pulley, 3/8" ID x 5" OD

$

$

Not available

25

White Outdoor WD-900-2557

Spindle Pulley, 7/8" ID x 4 1/2" OD

$

$

Not available

26

White Outdoor WD-300-0016

Idler Pulley Spacer
(Superseded to WD-C37937)

$

$

Not available

27

White Outdoor WD-900-3028

Deck Belt, BB129

$

$

Not available

28

$

$

Not available

29

White Outdoor WD-300-0021

Key, 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.49

$

Usually ships in 3-6 days

0

30

White Outdoor WD-300-0015

Belt Tightener

$

$

Not available

31

White Outdoor WD-900-6034

Hex Tap Bolt, 1/4-20 x 4"

$

$

Not available

$

$

Not available

33

$

$

Not available

34

$

$

Not available

$

$

Not available

36

White Outdoor WD-900-6043

Thumb Screw, 1/4-20 x 1/2"

$

$

Not available

37

White Outdoor WD-900-2525

Gearbox Pulley, 3/4 ID x 4 1/2 OD
(Superseded to WD-C37892)

$

$

Not available

38

White Outdoor WD-900-3004

Deck Drive Belt, B52

$

$

Not available

39

White Outdoor WD-900-5842

Gearbox Assembly

Note: Consists of A-D

$

$

Not available

A

$

$

Not available

B

White Outdoor WD-900-7053

Grease Zerk, 1/4" NPT

$

$

Not available

C

WD-900-5020

Street Elbow, 1/8" x 90°

$

$

Not available

D

Pipe Bushing, 1/4" x 1/8"

Note: Standard Hardware Part, Order Locally

$

$

Not available

40

White Outdoor WD-310-0006

Gearbox Mount Angle

$

$

Not available

$

$

Not available

42

White Outdoor WD-900-6106

Hex Bolt, 3/8-24 x 1 1/4", GR5, LH

$

$

Not available

43

Panhead Machine Screw, No. 10-32 x 1/2"

Note: Standard Hardware Part, Order Locally

$

$

Not available

44

White Outdoor WD-900-6150

Integral Star Washer Nut, No. 10-32

$

$

Not available

45

White Outdoor WD-300-0017

Spindle Washer

$

$

Not available

46

White Outdoor WD-900-2044

10 Amp Circuit Breaker

$

$

Not available

47

White Outdoor WD-900-5542

Decal, Caution - Whirling Blade

$

$

Not available

48

$

$

Not available

49

Lockwasher, 1/2"

Note: Standard Hardware Part, Order Locally

$

$

Not available

50

Hex Nut, 1/2-13

Note: Standard Hardware Part, Order Locally

$

$

Not available

51

Hex Capscrew, 1/4-20 x 3/4", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

52

Hex Capscrew, 5/16-18 x 1", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

53

Lockwasher, 1/4"

Note: Standard Hardware Part, Order Locally

$

$

Not available

54

Hex Capscrew, 5/16-18 x 3/4", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

55

Hex Capscrew, 7/16-14 x 1 1/4", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

56

Lockwasher, 7/16"

Note: Standard Hardware Part, Order Locally

$

$

Not available

57

Hex Nut, 7/16-14

Note: Standard Hardware Part, Order Locally

$

$

Not available

58

Carriage Bolt, 5/16-18 x 1", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

59

Lockwasher, 5/16"

Note: Standard Hardware Part, Order Locally

$

$

Not available

60

Hex Nut, 5/1 6"

Note: Standard Hardware Part, Order Locally

$

$

Not available

61

Carriage Bolt, 5/16-18 x 3/4"

Note: Standard Hardware Part, Order Locally

$

$

Not available

62

Carriage Bolt, 3/8-16 x 1"

Note: Standard Hardware Part, Order Locally

$

$

Not available

63

Lockwasher, 3/8"

Note: Standard Hardware Part, Order Locally

$

$

Not available

64

Hex Nut, 3/8-16

Note: Standard Hardware Part, Order Locally

$

$

Not available

65

Hex Capscrew, 3/8-16 x 1 1/4", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

66

Hex Capscrew, 3/8-16 x 2 1/2", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

67

White Outdoor WD-900-6053

Hex Capscrew, 5/16-24 x 3/4", GR5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

68

Elastic Stop Nut, 1/4-20

Note: Standard Hardware Part, Order Locally

$

$

Not available

69

White Outdoor WD-900-5519

Clevis Pin, 1/2" x 1 1/2"

$

$

Not available

70

White Outdoor WD-900-5520

Hairpin Cotter, .120 x 2 1/4"

$

$

Not available

71

Hex Capscrew, 1/2-13 x 1 1/2", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

72

White Outdoor WD-300-0013

Deck Lift Arm Bushing
(Superseded to WD-C37586)

$

$

Not available

73

Flatwasher, 1/2"

Note: Standard Hardware Part, Order Locally

$

$

Not available

74

Hex Capscrew, 1/4-20 x 1/2", GR5

Note: Standard Hardware Part, Order Locally

$

$

Not available

75

White Outdoor WD-600-0000

Spindle Housing Assembly

Note: (Includes items 4, 5 & 6)

$

$

Not available
