FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993)

Front-Mount Riding Mower

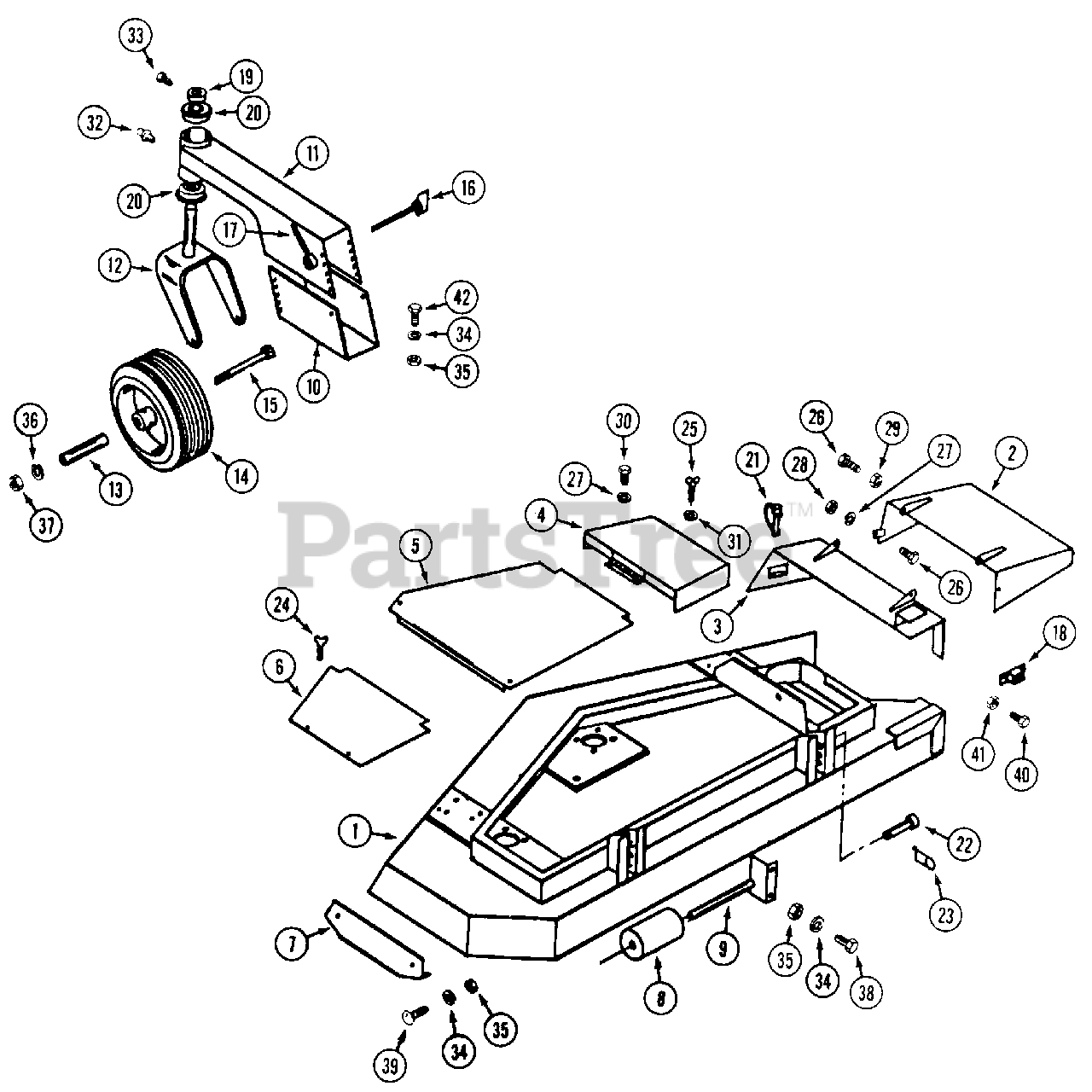

FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) > Parts Diagrams (25) > 52" Mower Deck & Attaching Parts Model For W873 & W876 Mower Deck

  • Title
WD-C44086

1

DECK 52"

Part# WD-C44086

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0015

2

CHUTE - foot guard

Part# WD-320-0015

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0016

3

MOUNT - foot guard

Part# WD-320-0016

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0011

4

COVER - pulley

Part# WD-320-0011

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0022

5

COVER - center

Part# WD-320-0022

Not available

WD-320-0001

6

COVER - L.H.

Part# WD-320-0001

OEM Warranty Repair Part for White Outdoor

Not available

WD-320-0014

7

SHOE - skid

Part# WD-320-0014

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5559

8

ROLLER - anti-scalp

Part# WD-900-5559

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0038

9

SHAFT - roller

Part# WD-300-0038

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0044

10

BRACKET - gauge wheel mount

Part# WD-300-0044

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0043

11

MOUNT - gauge wheel

Part# WD-300-0043

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0007

12

FORK

Part# WD-330-0007

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0017

13

AXLE - wheel

Part# WD-200-0017 (Superseded to WD-C37915)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4004

14

WHEEL - gauge

Part# WD-900-4004

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4006

TIRE - 11 x 4.00 - 5

Part# WD-900-4006

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4005

RIM - 5"

Part# WD-900-4005

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3505

BEARING - wheel

Part# WD-900-3505

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6133

15

BOLT - 1/2"-13 x 6-1/2"

Part# WD-900-6133

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6096

16

BOLT - wing

Part# WD-900-6096

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6092

17

NUT - gauge wheel handle

Part# WD-900-6092

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2044

18

BREAKER - circuit, 10 amp

Part# WD-900-2044

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5510

19

COLLAR - set

Part# WD-900-5510

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3501

20

BEARING - 1"

Part# WD-900-3501

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5615

21

PIN - "fas-tatch"

Part# WD-900-5615

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5519

22

PIN - deck

Part# WD-900-5519

OEM Warranty Repair Part for White Outdoor

Not available

WD-C29029

23

PIN - cotter, hair

Part# WD-C29029

OEM Warranty Repair Part for White Outdoor

Not available

24

SCREW - thumb 1/4"-20 x 1/2"

Part#

Note: (NSS. use 113-3 and 192-19)

Not available

25

SCREW - wing 1/4"-20 x 1"

Part#

Note: (NSS. use 113-3)

Not available

WD-113-3

26

BOLT - 1/4"-20 x 3/4"

Part# WD-113-3

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-19

27

LOCKWASHER - 1/4"

Part# WD-192-19

Not available

WD-129-101

28

NUT - 1/4"-20

Part# WD-129-101

Not available

WD-131-71

29

NUT - 1/4"-20 lock

Part# WD-131-71

OEM Warranty Repair Part for White Outdoor

Not available

WD-113-1

30

BOLT - 1/4"-20 x 1"

Part# WD-113-1

Not available

WD-195-102

31

WASHER - 1/4"

Part# WD-195-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37993

32

FITTING - grease

Part# WD-C37993

OEM Warranty Repair Part for White Outdoor

Not available

WD-C37756

33

SCREW - set 5/16"-18 x 1/2" square head

Part# WD-C37756

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6151

34

LOCKWASHER - 5/16"

Part# WD-900-6151

Not available

WD-129-102

35

NUT - 5/16"-18

Part# WD-129-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-192-23

36

LOCKWASHER - 1/2"

Part# WD-192-23

OEM Warranty Repair Part for White Outdoor

Not available

WD-129-105

37

NUT - 1/2"-13

Part# WD-129-105 (Superseded to 912-0206)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.11

WD-113-102

38

BOLT - 5/16"-18 x 3/4"

Part# WD-113-102

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-202

39

BOLT - 5/16"-18 x 3/4" carriage

Part# WD-111-202

OEM Warranty Repair Part for White Outdoor

Not available

WD-182-528

40

SCREW - #10-32 x 1/2"

Part# WD-182-528

Not available

WD-900-6150

41

NUT - #10-32

Part# WD-900-6150

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-203

42

BOLT - 5/16"-18 x 1" carriage

Part# WD-111-203

OEM Warranty Repair Part for White Outdoor

Not available
