FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993)

Front-Mount Riding Mower

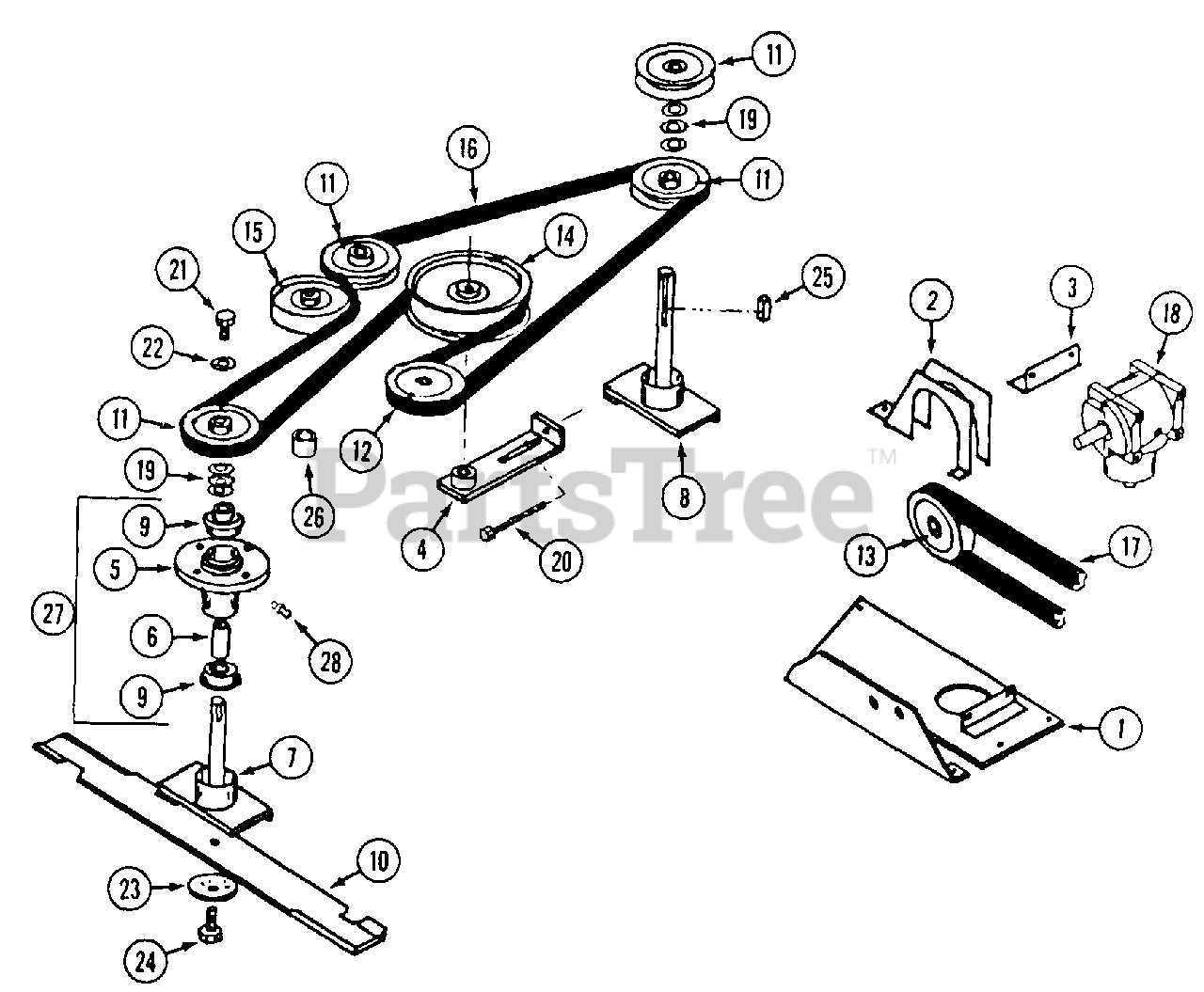

FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) > Parts Diagrams (25) > 62" Mower Drive For W874 & W877 Mower Deck

  • Title
WD-331-0004

1

MOUNT - gear box

Part# WD-331-0004

OEM Warranty Repair Part for White Outdoor

Not available

WD-311-0002

2

GUARD - belt

Part# WD-311-0002

Note: (1800, 1800C)

OEM Warranty Repair Part for White Outdoor

Not available

WD-310-0006

3

ANGLE - gear box mount

Part# WD-310-0006

OEM Warranty Repair Part for White Outdoor

Not available

WD-330-0012

4

TIGHTENER - belt

Part# WD-330-0012

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0031

5

HOUSING - spindle

Part# WD-300-0031

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0034

6

SPACER - spindle

Part# WD-300-0034

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0032

7

SHAFT - spindle, short

Part# WD-300-0032 (Superseded to WD-C37947)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $143.36

WD-300-0040

8

SHAFT - spindle, long

Part# WD-300-0040 (Superseded to WD-C37948)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3506

9

BEARING - spindle

Part# WD-900-3506 (Superseded to WD-C42786P)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5730

10

BLADE

Part# WD-900-5730

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2512

11

PULLEY - spindle

Part# WD-900-2512

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2510

12

PULLEY - gear box output

Part# WD-900-2510

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2525

13

PULLEY - gear box input

Part# WD-900-2525 (Superseded to WD-C37892)

Note: (1800, 1800C)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2543

13

PULLEY - gear box input

Part# WD-900-2543

Note: (2000C)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2521

14

PULLEY - idler, large

Part# WD-900-2521 (Superseded to WD-C37933)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $84.69

WD-900-2522

15

PULLEY - idler, small

Part# WD-900-2522 (Superseded to WD-C45655)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3008B

16

BELT - deck

Part# WD-900-3008B

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3004

17

BELT - drive

Part# WD-900-3004

Note: (1800)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3023

17

BELT - drive

Part# WD-900-3023 (Superseded to WD-C38566)

Note: (2000C)

OEM Warranty Repair Part for White Outdoor

Not available

WD-C44241

17

BELT - drive

Part# WD-C44241

Note: (1800C)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5842

18

GEAR BOX - angle drive

Part# WD-900-5842

Note: (See "Gear Box (Curtis)" illustration and parts list for service) (Curtis model)

OEM Warranty Repair Part for White Outdoor

Not available

WD-C42775

18

GEAR BOX - angle drive

Part# WD-C42775

Note: (See "Gear Box (Superior)" illustration and parts list for service) (Superior model)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6002

19

WASHER - spacer

Part# WD-900-6002

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6034

20

BOLT - 1/4"-20 x 4"

Part# WD-900-6034

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6073

21

BOLT - 5/16"-24 x 3/4"

Part# WD-900-6073 (Superseded to 710-0157)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

WD-300-0017

22

WASHER - 5/16", 10 ga

Part# WD-300-0017

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5534

23

WASHER - blade

Part# WD-900-5534

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6080

24

BOLT - 3/8"-24 x 1-1/4"

Part# WD-900-6080 (Superseded to WD-114-201)

OEM Warranty Repair Part for White Outdoor

Not available

WD-300-0021

25

KEY - 3/16" x 3/16" x 1"

Part# WD-300-0021 (Superseded to 914-0105)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

WD-300-0016

26

SPACER - idler pulley

Part# WD-300-0016 (Superseded to WD-C37937)

OEM Warranty Repair Part for White Outdoor

Not available

WD-600-0001

27

HOUSING ASSEMBLY - spindle

Part# WD-600-0001

Note: (includes ref. 5, 6, 9)

OEM Warranty Repair Part for White Outdoor

Not available

WD-219-20

28

FITTING - grease 1/4"-28

Part# WD-219-20

OEM Warranty Repair Part for White Outdoor

Not available
