FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993)

Front-Mount Riding Mower

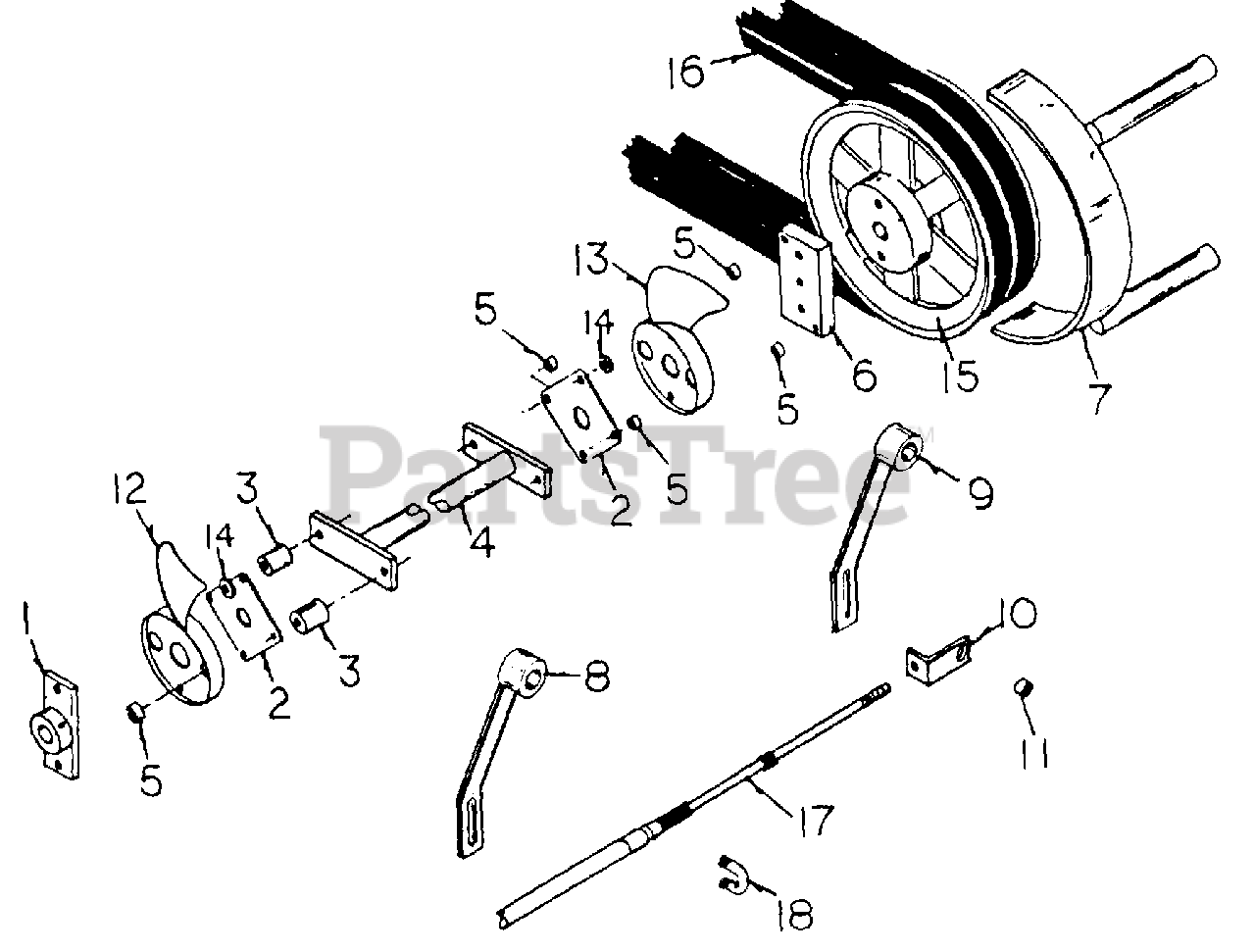

FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) > Parts Diagrams (25) > Pump Drive

  • Title
WD-112-0012

1

HUB - w/drive plate

Part# WD-112-0012

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-0021

2

DRIVE PLATE

Part# WD-111-0021 (Superseded to WD-C37700)

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-0022

3

SPACER

Part# WD-111-0022

OEM Warranty Repair Part for White Outdoor

Not available

WD-112-0009

4

CROSS SHAFT

Part# WD-112-0009

OEM Warranty Repair Part for White Outdoor

Not available

WD-111-0025

5

BOLT SPACER

Part# WD-111-0025

OEM Warranty Repair Part for White Outdoor

Not available

WD-112-0007

6

CROSS BAR BLOCK

Part# WD-112-0007

OEM Warranty Repair Part for White Outdoor

Not available

WD-112-0006

7

TRANSMISSION BELT RETAINER

Part# WD-112-0006

Not available

WD-112-0004

8

TRANSMISSION ARM - L.H.

Part# WD-112-0004

Not available

WD-112-0003

9

TRANSMISSION ARM - R.H.

Part# WD-112-0003

OEM Warranty Repair Part for White Outdoor

Not available

WD-140-0023

10

STEERING CABLE ENDS

Part# WD-140-0023

OEM Warranty Repair Part for White Outdoor

Not available

WD-200-0014

11

STEERING CABLE ENDS BUSHING

Part# WD-200-0014 (Superseded to WD-C42895)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4527

12

CCW FAN - L.H.

Part# WD-900-4527

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-4526

13

CW FAN - R.H.

Part# WD-900-4526

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-6161

14

WASHER - 5/16"

Part# WD-900-6161

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2542

15

PULLEY

Part# WD-900-2542

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-3022

16

BELTS

Part# WD-900-3022

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5717

17

STEERING CABLE

Part# WD-900-5717

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-5625

18

CLAMP

Part# WD-900-5625

OEM Warranty Repair Part for White Outdoor

Not available
