FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) Seat Lid and Steering Parts Diagram

Front-Mount Riding Mower

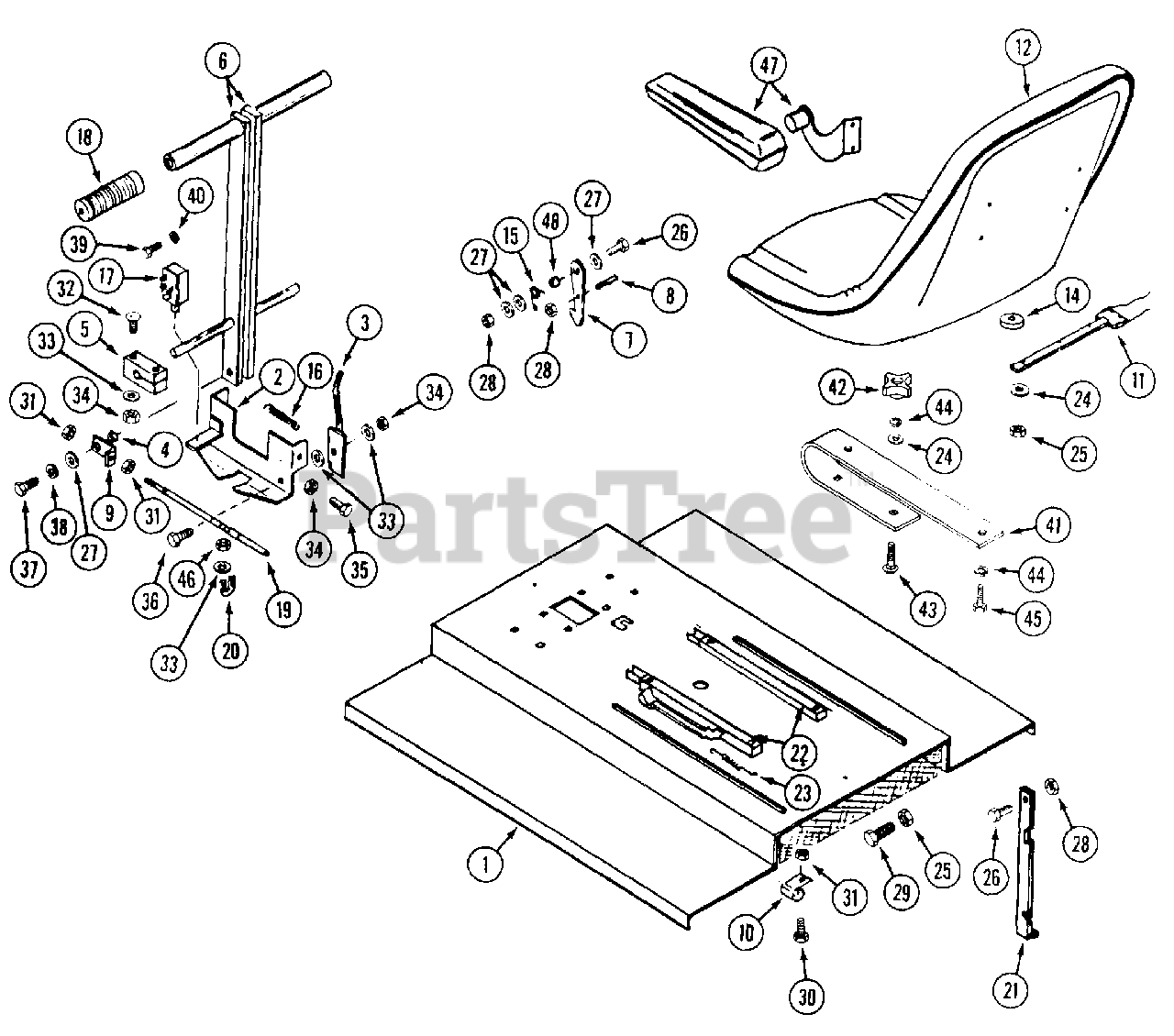

Seat Lid and Steering Parts Diagram

  • Title

1

White Outdoor WD-201-0004

LID - seat

Note: (1800, 2000C)

$

$

Not available

1

White Outdoor WD-C44237

LID - seat

Note: (1800C)

$

$

Not available

2

White Outdoor WD-201-0010

BRACKET - lever lock

$

$

Not available

3

White Outdoor WD-200-0012

LATCH - lever lock

$

$

Not available

4

White Outdoor WD-C42895

BUSHING

Note: (Also order C42896)

$

$

Not available

5

White Outdoor WD-200-0010

BEARING - block

$

$

Not available

6

White Outdoor WD-200-0009

LEVER - steering

Note: (1800, 2000C)

$

$

Not available

6

WD-C43406

LEVER - steering

Note: (1800C)

$

$

Not available

7

WD-C44481

LATCH - seat lid

$

$

Not available

8

BOLT - latch, seat lid

Note: (NSS. is included with C44481)

$

$

Not available

9

White Outdoor WD-140-0023

BRACKET - steering cable end

Note: (2000C)

$

$

Not available

9

White Outdoor WD-C42896

BRACKET - steering cable end

Note: (Also order C42895)

$

$

Not available

10

WD-C32455

RETAINER - harness, seat lid

$

$

Not available

11

White Outdoor WD-900-2001

SWITCH - seat

$

$

Not available

12

White Outdoor WD-900-5597

SEAT

Note: (1800, 2000C)

$

$

Not available

12

White Outdoor WD-C43202

SEAT

Note: (1800C)

$

$

Not available

14

White Outdoor WD-900-5523

SPACER - seat

$

$

Not available

15

White Outdoor WD-900-5700

SPRING - latch, seat lid

$

$

Not available

16

White Outdoor WD-900-5501

SPRING - bracket, lever lock

$

$

Not available

17

White Outdoor WD-900-2029

SWITCH - safety

$

$

Not available

18

White Outdoor WD-900-5500

GRIP - handle
(Superseded to WD-C37631)

$

$

Not available

19

CABLE - steering

Note: NSS (1800C, 1800 S/N 41-027-012814 and after) (See "Steering Cable Kit" illustration and parts list.)

$

$

Not available

19

White Outdoor WD-900-5502

CABLE - steering

Note: (1800 before S/N 41-027-012814)

$

$

Not available

19

White Outdoor WD-900-5717

CABLE - steering

Note: (2000C)

$

$

Not available

20

White Outdoor WD-900-5503

CLAMP - steering cable
(Superseded to WD-C37616)

Note: (1800, 1800C)

$

$

Not available

20

White Outdoor WD-900-5625

CLAMP - steering cable

Note: (2000C)

$

$

Not available

21

White Outdoor WD-200-0008

PROP - seat lid

$

$

Not available

22

White Outdoor WD-900-5813

KIT - seat slide rail (pair)

Note: (1800, 2000C)

$

$

Not available

23

White Outdoor WD-900-5767

SPRING - seat

$

$

Not available

24

WD-900-6152

WASHER - 5/16"

$

$

Not available

25

WD-131-69

NUT - 5/16"

$

$

Not available

26

WD-113-4

BOLT - 1/4"-20 x 1"

$

$

Not available

27

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

28

White Outdoor WD-131-71

NUT - 1/4"-20 lock

$

$

Not available

29

White Outdoor WD-113-103

BOLT - 5/16"-18 x 1"

$

$

Not available

30

WD-182-528

SCREW - #10-32 x 1/2"

$

$

Not available

31

White Outdoor WD-900-6150

NUT - #10-32

$

$

Not available

32

WD-111-114

BOLT - 1/4"-20 x 1-1/2" carriage

$

$

Not available

33

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

34

White Outdoor WD-131-71

NUT - 1/4"-20 lock

$

$

Not available

35

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

$

$

Not available

36

WD-C42359

BOLT 1/4"-20 x 2"

$

$

Not available

37

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

$

$

Not available

38

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

39

WD-182-525

SCREW - #10-32 x 3/8"

$

$

Not available

40

WD-192-18

LOCKWASHER - 3/16"

$

$

Not available

41

White Outdoor WD-C43137

SPRING - seat

Note: (1800C)

$

$

Not available

42

White Outdoor WD-C43438

KNOB - seat

$

$

Not available

43

White Outdoor WD-111-204

BOLT - carriage 5/16"-18 x 1-1/4"

$

$

Not available

44

WD-900-6151

LOCKWASHER - 5/16"

$

$

Not available

45

White Outdoor WD-113-103

BOLT - 5/16"-18 x 1"

$

$

Not available

46

WD-131-1102

NUT - 1/4"-20

$

$

Not available

47

KIT - arm rest

Note: (Optional) (NSS order as machinery item)

$

$

Not available

WD-C22947

TIE - nylon

$

$

Not available

48

UNKNOWN

$

$

Not available
