FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) Wheel Motor & Pump Assembly Parts Diagram

Front-Mount Riding Mower

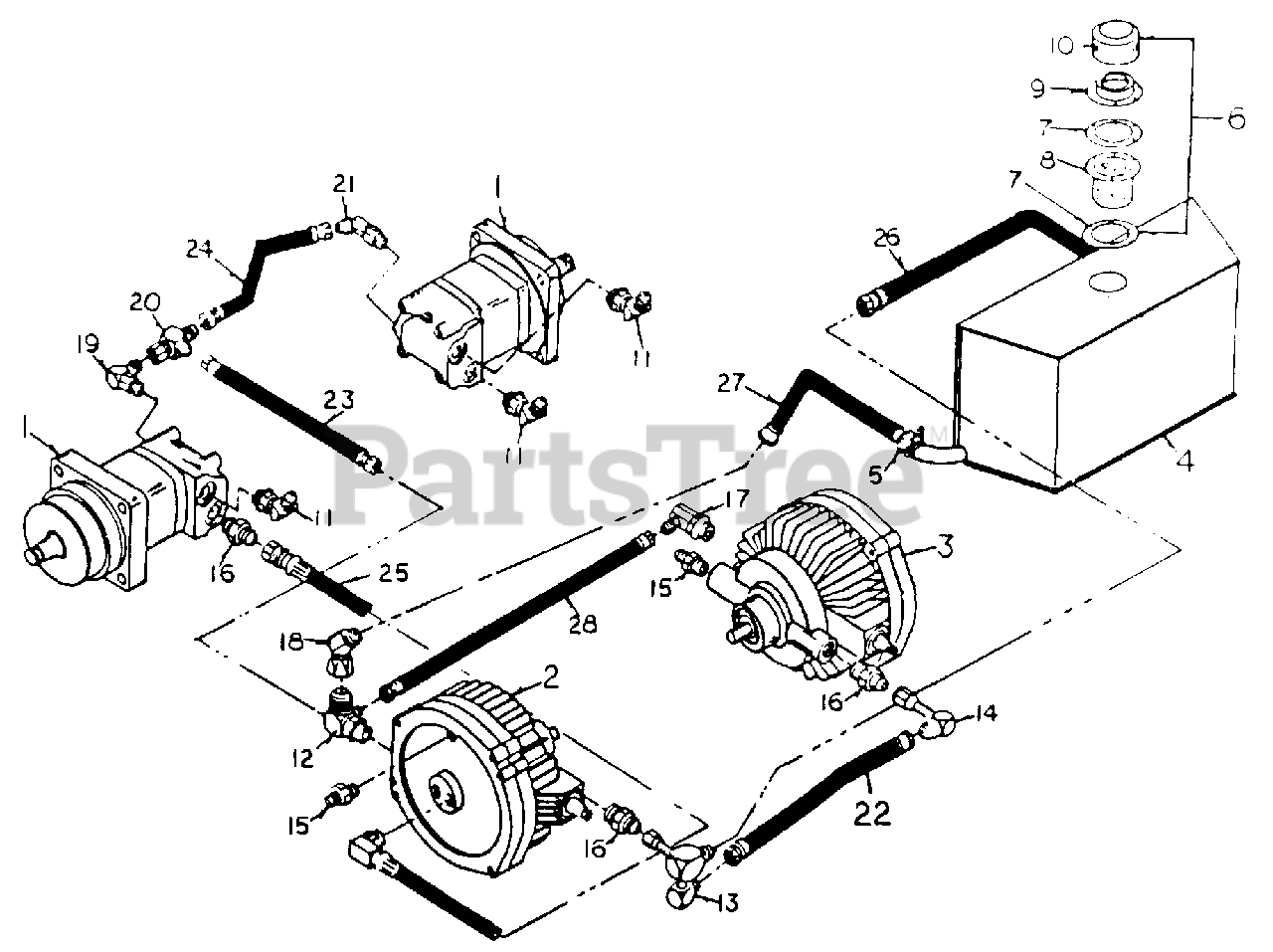

Wheel Motor & Pump Assembly Parts Diagram

  • Title

1

White Outdoor WD-900-8065

WHEEL MOTOR

$

$

Not available

2

White Outdoor WD-900-8064

PUMP - L.H.

$

$

Not available

3

WD-900-8063

PUMP - R.H.

$

$

Not available

4

WD-900-8060

HYDRAULIC OIL TANK

$

$

Not available

5

WD-900-5629

HOSE CLAMP

$

$

Not available

6

White Outdoor WD-900-8046

HYDRAULIC FILL CAP ASSEMBLY

$

$

Not available

7

White Outdoor WD-900-8043

GASKET

$

$

Not available

8

WD-900-8042

STRAINER

$

$

Not available

9

WD-900-8044

FILL NECK

$

$

Not available

10

White Outdoor WD-900-8045

BREATHER CAP

$

$

Not available

11

White Outdoor WD-900-8016

MALE TUBE - 45° male o-ring adapter

$

$

Not available

12

White Outdoor WD-900-8092

FITTING - special cross

$

$

Not available

13

WD-900-8091

SPECIAL ADAPTER

$

$

Not available

14

White Outdoor WD-900-8004

FITTING - male tube, 90° female swivel adapter

$

$

Not available

15

White Outdoor WD-900-8094

FITTING - male tube, male o-ring adapter

$

$

Not available

16

WD-900-8097

FITTING - male tube, male o-ring adapter

$

$

Not available

17

White Outdoor WD-900-8075

FITTING - male tube, 90° male o-ring adapter

$

$

Not available

18

WD-900-8093

FITTING - male tube, 45° female swivel adapter

$

$

Not available

19

White Outdoor WD-900-8015

FITTING - male tube, 90° male o-ring adapter

$

$

Not available

20

WD-900-8096

FITTING - male tube, female swivel tee

$

$

Not available

21

WD-900-8114

FITTING - male tube, 45° female swivel adapter

$

$

Not available

22

WD-900-8109

HOSE - 1/2" ID x 18" long, easy couple

$

$

Not available

23

White Outdoor WD-900-8107

HOSE - 1/4" ID x 14" long, easy couple

$

$

Not available

24

White Outdoor WD-900-8108

HOSE - 1/4" ID x 20" long, easy couple

$

$

Not available

25

White Outdoor WD-900-8100

HOSE - 1/2" ID x 36 1/2" long

$

$

Not available

26

White Outdoor WD-900-8112

HOSE - 3/4" ID x 22" long, easy couple

$

$

Not available

27

White Outdoor WD-900-8111

HOSE - 3/4" ID x 18" long, easy couple

$

$

Not available

28

WD-900-8110

HOSE - 1/2" ID x 20" long, easy couple

$

$

Not available
