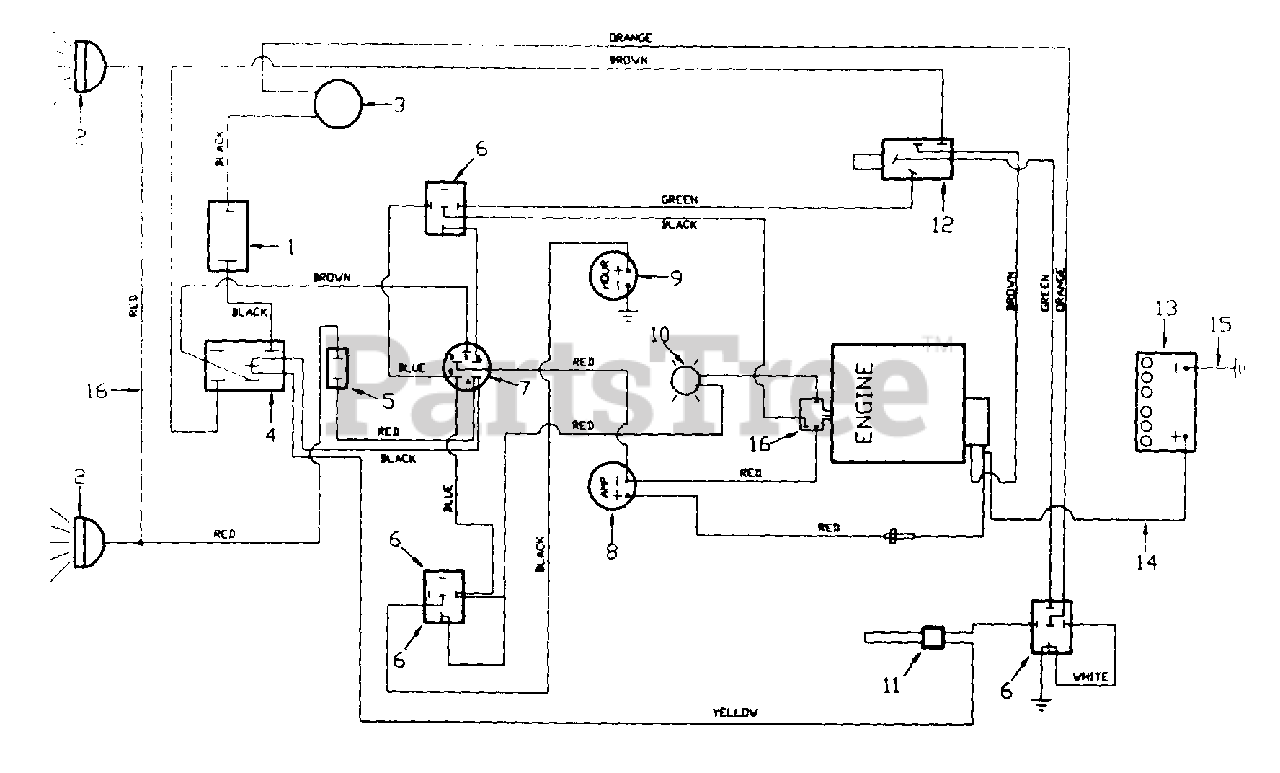

FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) > Parts Diagrams (25) > Wiring Diagram (Onan Engine)

  • Title
WD-900-2044

1

CIRCUIT BREAKER - 10 amp

Part# WD-900-2044

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2014

2

HEADLIGHT

Part# WD-900-2014

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2024

LENS

Part# WD-900-2024 (Superseded to WD-C32178)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2025

BULB

Part# WD-900-2025 (Superseded to 925-0963)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.34

WD-900-2026

LAMP

Part# WD-900-2026

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2068

GASKET - headlight

Part# WD-900-2068

Not available

WD-900-5716

3

ELECTRIC CLUTCH

Part# WD-900-5716

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2028

4

SWITCH - PTO

Part# WD-900-2028 (Superseded to 925-3022)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $38.37

WD-900-2027

5

SWITCH - light

Part# WD-900-2027 (Superseded to 925-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.77

WD-900-2037

6

RELAY

Part# WD-900-2037 (Superseded to WD-C37515)

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2065

7

IGNITION SWITCH (Onan)

Part# WD-900-2065

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2002

8

AMP GAUGE

Part# WD-900-2002

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2023

9

HOUR METER

Part# WD-900-2023

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2041

10

OIL LIGHT

Part# WD-900-2041

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2001

11

SEAT SWITCH

Part# WD-900-2001

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2029

12

SAFETY SWITCH

Part# WD-900-2029

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2060

13

BATTERY

Part# WD-900-2060

Not available

WD-900-2011

14

STARTER WIRE

Part# WD-900-2011

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2009

15

GROUND WIRE

Part# WD-900-2009

OEM Warranty Repair Part for White Outdoor

Not available

WD-900-2066

WIRING HARNESS (Onan)

Part# WD-900-2066

OEM Warranty Repair Part for White Outdoor

Not available

16

UNKNOWN

Part#

Not available
