FR-2000 C (139-026-190) - White Outdoor Front-Mount Riding Mower (1989) Brake Assembly Parts Diagram

Front-Mount Riding Mower

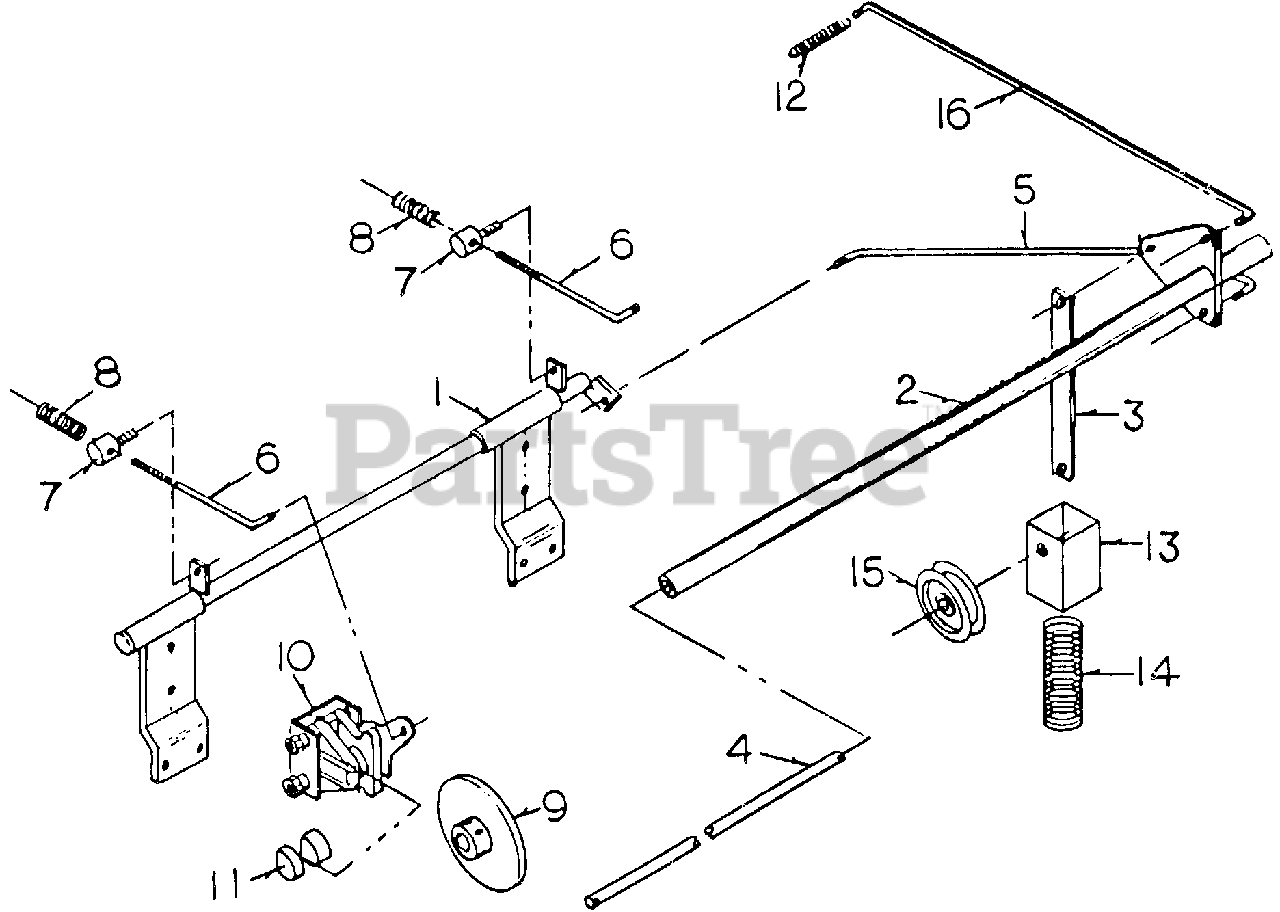

Brake Assembly Parts Diagram

  • Title
1

WD-113-0003

Brake Mount & Cross Rod Ass'y.

$

$

Not available

2

WD-113-0013

Brake Clutch Cross Rod

$

$

Not available

3

WD-313-0012

Cross Rod to Idler Pulley Linkage

$

$

Not available

4

WD-300-0022

Cross Bar Pin

$

$

Not available

5

White Outdoor WD-113-0006

Cross Rod to Brake Binkage

$

$

Not available

$

$

Not available

7

White Outdoor WD-111-0014

Caliper Rod Collar

$

$

Not available

8

White Outdoor WD-900-5722

Brake Caliper Spring

$

$

Not available

$

$

Not available

10

White Outdoor WD-900-5690

Brake Assembly

$

$

Not available

11

$

$

Not available

12

White Outdoor WD-900-5501

Brake Pedal Spring

$

$

Not available

13

White Outdoor WD-111-0019

Spring Loaded Idler Mount

$

$

Not available

14

White Outdoor WD-900-5580

Transmission Belt Idler Spring

$

$

Not available

15

White Outdoor WD-900-2501

Idler Pulley
(Superseded to WD-C38864)

$

$

Not available

16

White Outdoor WD-111-0006

Brake Pedal Rod

$

$

Not available
