FR 2111 M (965190201) - Jonsered Rear-Engine Riding Mower (2010-07) CONTROLS Parts Diagram

Rear-Engine Riding Mower

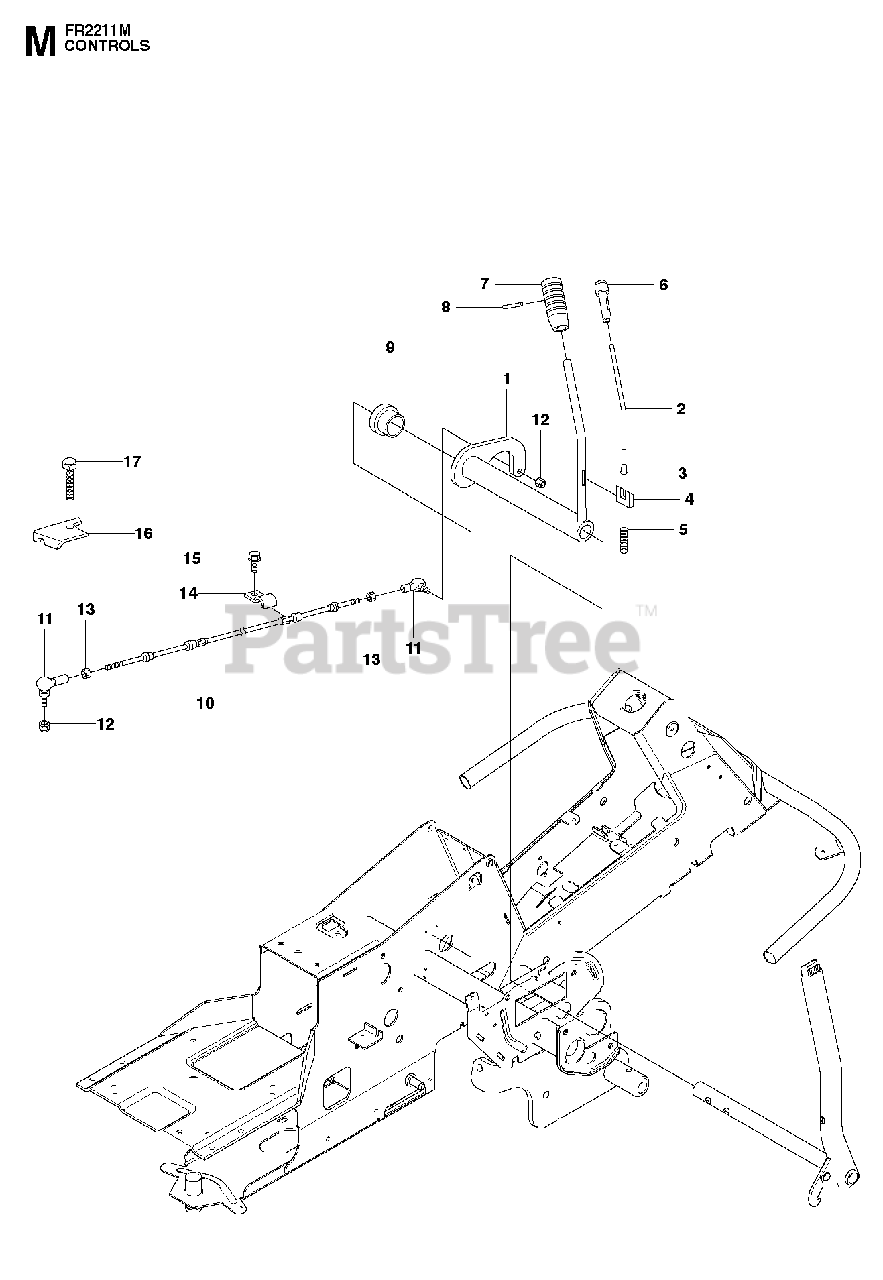

CONTROLS Parts Diagram

  • Title

1

Jonsered 506906501

LEVER

$

$

Not available

2

Jonsered 506906901

ROD

$

$

Not available

3

Jonsered 506831701

END PIECE

$

$

Not available

4

Jonsered 506831801

CATCH

$37.99

$

Usually ships in 3-10 days

0

5

Jonsered 506832302

SPRING

$

$

Not available

6

Jonsered 506907001

BUTTON

$

$

Not available

7

Jonsered 506907101

KNOB

$

$

Not available

8

Jonsered 721421226

SPRING PIN 3X24

$6.49

$

In Stock, Qty 7

0

9

Jonsered 506556501

BUSH
(Superseded to 584871301)

$7.99

$

Usually ships in 3-10 days

0

10

Jonsered 574411102

CONTROL CABLE

$85.99

$

Usually ships in 3-10 days

0

11

Jonsered 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 1 left!

0

12

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 8

0

13

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

14

Jonsered 506566501

CLAMP

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 506907401

BRACKET

$

$

Not available

17

Jonsered 725236651

SCREW

$4.99

$

In Stock, only 3 left!

0
