FR 2111 M (965190201) - Jonsered Rear-Engine Riding Mower (2010-07) PEDALS Parts Diagram

Rear-Engine Riding Mower

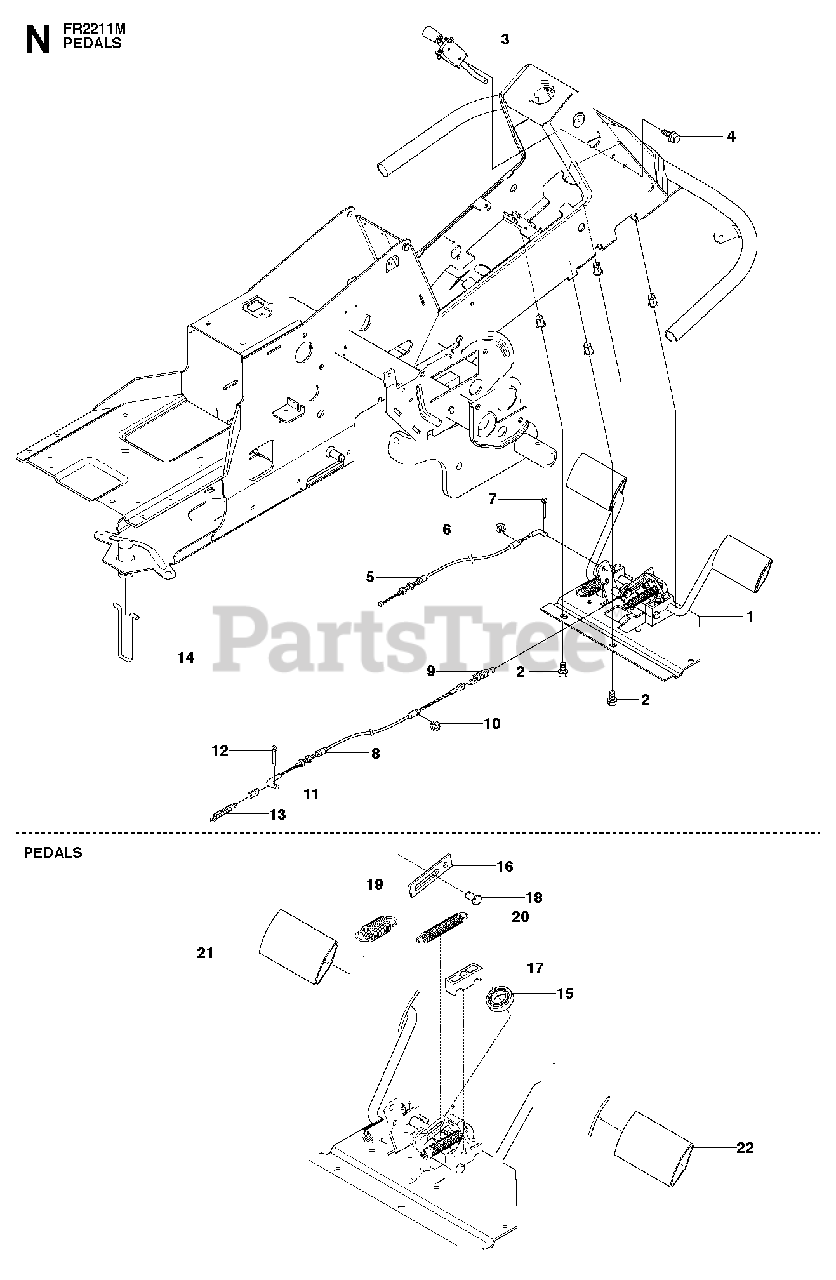

PEDALS Parts Diagram

  • Title

1

Jonsered 544132301

No Description Available

$

$

Not available

2

Jonsered 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

3

Jonsered 544403101

BRAKE LEVER ASSY

$

$

Not available

4

Jonsered 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 506952501

CABLE

$60.99

$

Usually ships in 3-10 days

0

6

Jonsered 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

7

Jonsered 721615201

COTTER PIN

$

$

Not available

8

Jonsered 506952601

CABLE

$68.99

$

Usually ships in 3-10 days

0

9

Jonsered 506919101

SPRING

$5.76

$

Usually ships in 3-10 days

0

10

Jonsered 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

11

Jonsered 506599301

CONNECTOR

$

$

Not available

12

Jonsered 721615201

COTTER PIN

$

$

Not available

13

Jonsered 506535603

SPRING

$7.99

$

Usually ships in 3-10 days

0

14

Jonsered 506576401

RETAINER

$

$

Not available

15

Jonsered 738210204

BALL BEARING 6002-2RS1

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

16

Jonsered 544127901

No Description Available

Note: . 1

$

$

Not available

17

Jonsered 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

18

Jonsered 721839901

CLEVIS PIN

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 544133401

No Description Available

Note: . 1

$

$

Not available

20

Jonsered 544133601

No Description Available

Note: . 1

$

$

Not available

21

Jonsered 535478802

PEDAL RUBBER, SF
(Superseded to 506506202)

Note: . 1

$25.99

$

In Stock, Qty 5

0

22

Jonsered 535478802

PEDAL RUBBER, SF
(Superseded to 506506202)

Note: . 1

$25.99

$

In Stock, Qty 5

0
