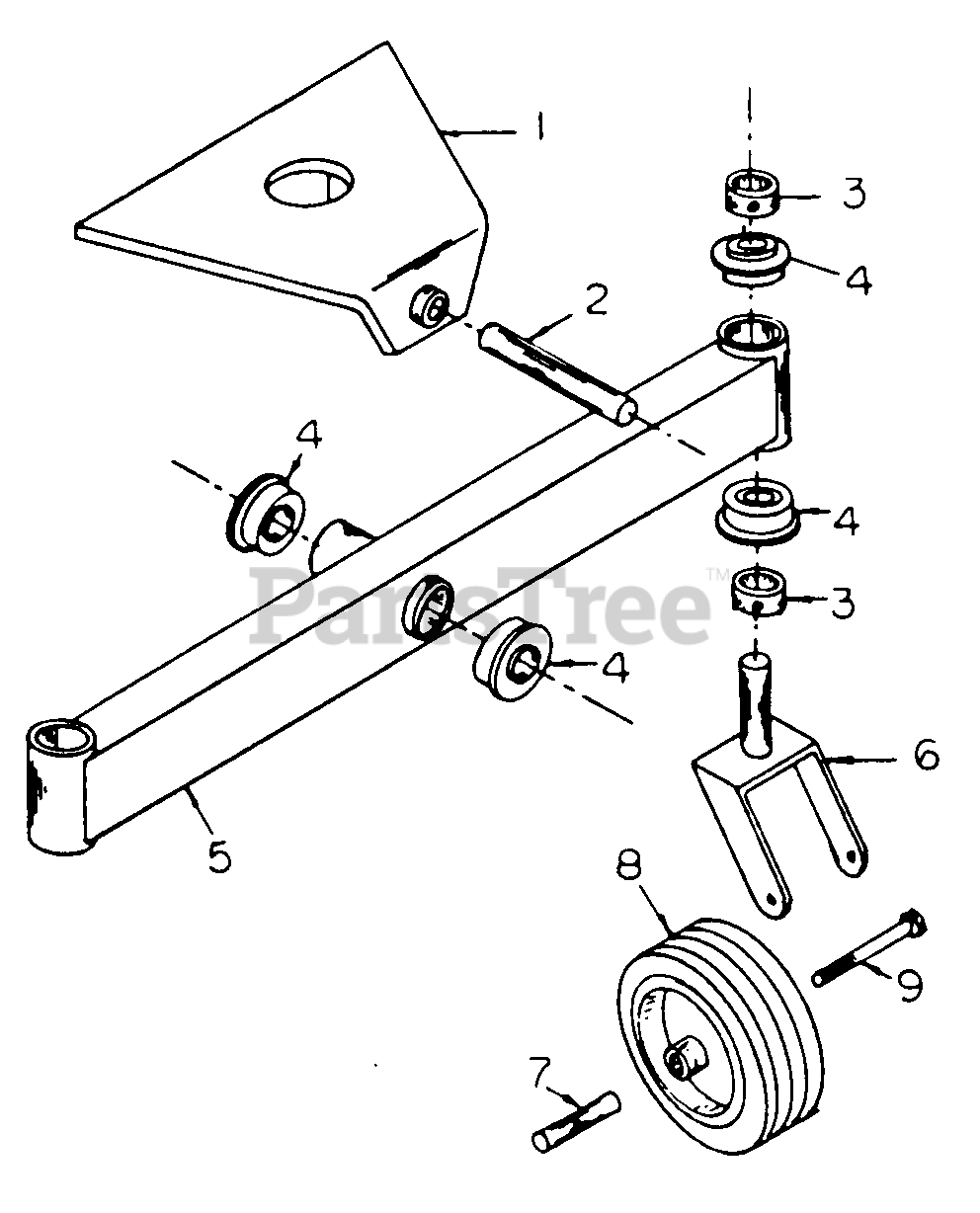

FR-2200 D (130-028-190) - White Outdoor Front-Mount Riding Mower (1990) Dual Tail Wheel Assembly Parts Diagram

Front-Mount Riding Mower

Dual Tail Wheel Assembly Parts Diagram

  • Title

1

White Outdoor WD-140-0050

Dusl Tail Wheel Mount

$

$

Not available

2

White Outdoor WD-230-0008

Plvot Axle

$

$

Not available

3

White Outdoor WD-900-5510

Set Collar, 1"

$

$

Not available

4

White Outdoor WD-900-3501

Bearing, 1"

$

$

Not available

5

White Outdoor WD-230-0004

Dual Tail Wheel Axle

$

$

Not available

6

WD-140-0051

Dual Tail Wheel Fork

$

$

Not available

7

White Outdoor WD-200-0017A

Axle

$

$

Not available

8

White Outdoor WD-900-4014

Wheel Assembly

$

$

Not available

White Outdoor WD-900-3505

Wheel Assembly Bearing

$

$

Not available

WD-900-4015

Tire, 13 x 5.00-62

$

$

Not available

9

WD-900-6131

Bolt, 1/2-13 x 6 1/2"

$

$

Not available
