FR 2213 MA (965190301) - Jonsered Rear-Engine Riding Mower (2009-04) TRANSMISSION Parts Diagram

Rear-Engine Riding Mower

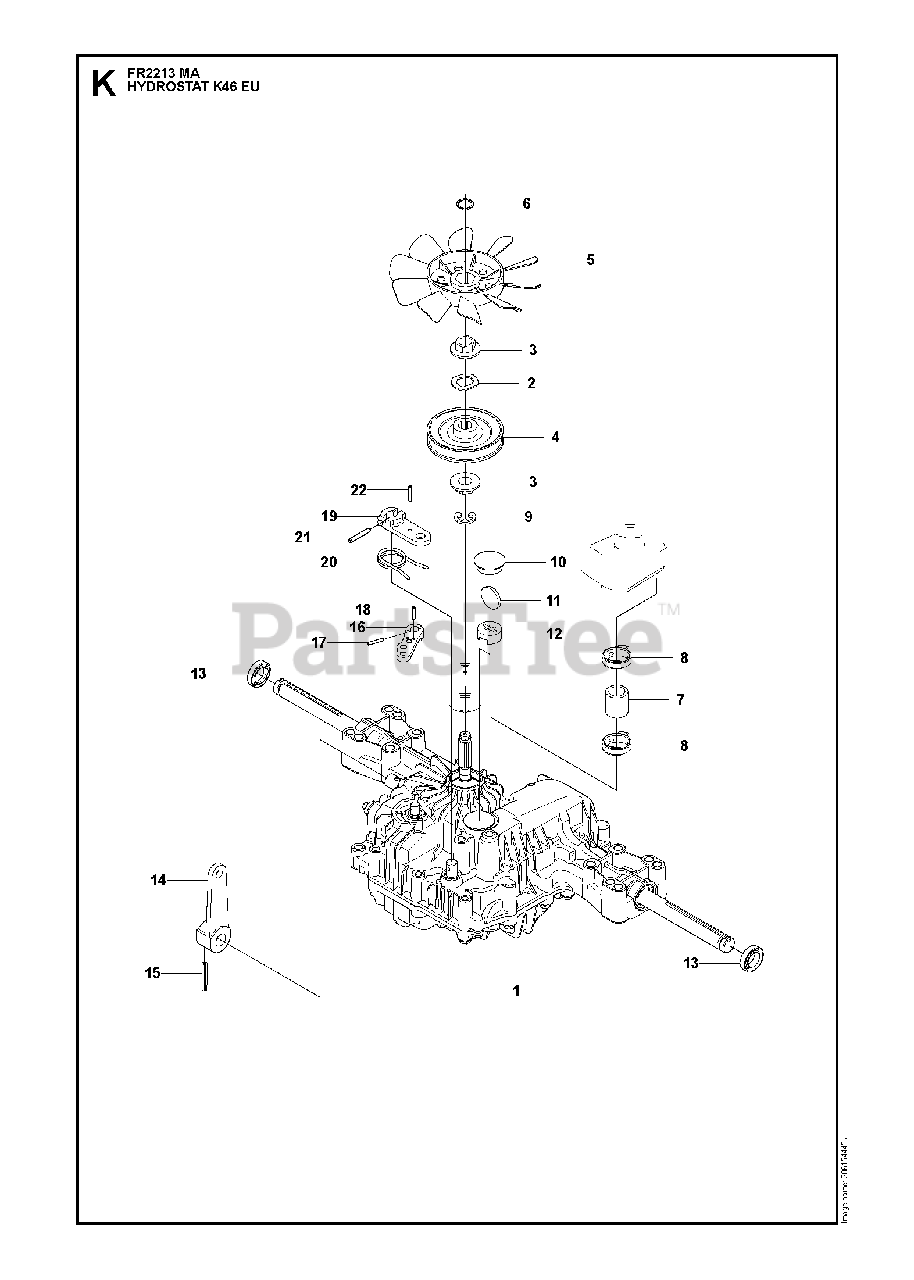

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 506986301

HYDROSTAT
(Superseded to 506986302)

$

$

Not available

2

Jonsered 506986501

WASHER **

$5.99

$

Usually ships in 3-10 days

0

3

Jonsered 506986601

SLEEVE

$10.99

$

Usually ships in 3-10 days

0

4

Jonsered 502451901

PULLEY B

$48.99

$

In Stock, only 1 left!

0

5

Jonsered 506986801

FAN
(Superseded to 583350101)

$53.99

$

In Stock, Qty 6

0

6

Jonsered 735311500

RETAINING RING **

$5.99

$

In Stock, Qty 11

0

7

Jonsered 502451601

TUBE

$22.99

$

Usually ships in 3-10 days

0

8

Jonsered 506987001

CLAMP
(Superseded to 505131102)

$7.99

$

In Stock, only 1 left!

0

9

Jonsered 535402807

CLIP

$

$

Not available

10

Jonsered 535402832

PLUG

$23.99

$

Usually ships in 3-10 days

0

11

Jonsered 535402829

MAGNET

$

$

Not available

12

Jonsered 502452001

MAGNET HOLDER

$9.49

$

Usually ships in 3-10 days

0

13

Jonsered 535402837

SEALING
(Superseded to 583349301)

$37.99

$

In Stock, Qty 6

0

14

Jonsered 502453201

CONTROL LEVER

$45.99

$

Usually ships in 3-10 days

0

15

Jonsered 535402809

PIN

$

$

Not available

16

Jonsered 535402817

ARM

$39.99

$

Usually ships in 3-10 days

0

17

Jonsered 535402816

PIN

$3.49

$

Usually ships in 3-10 days

0

18

Jonsered 535402833

PIN

$3.49

$

Usually ships in 3-10 days

0

19

Jonsered 535402838

ARM

$20.99

$

Usually ships in 3-10 days

0

20

Jonsered 535402839

RETURN SPRING

$

$

Not available

21

Jonsered 535402840

PIN

$4.99

$

Usually ships in 3-10 days

0

22

Jonsered 535402841

PIN

$3.49

$

Usually ships in 3-10 days

0
