FR 2213 MA (966802101) - Jonsered Rear-Engine Riding Mower (2012) MOWER DECK / CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

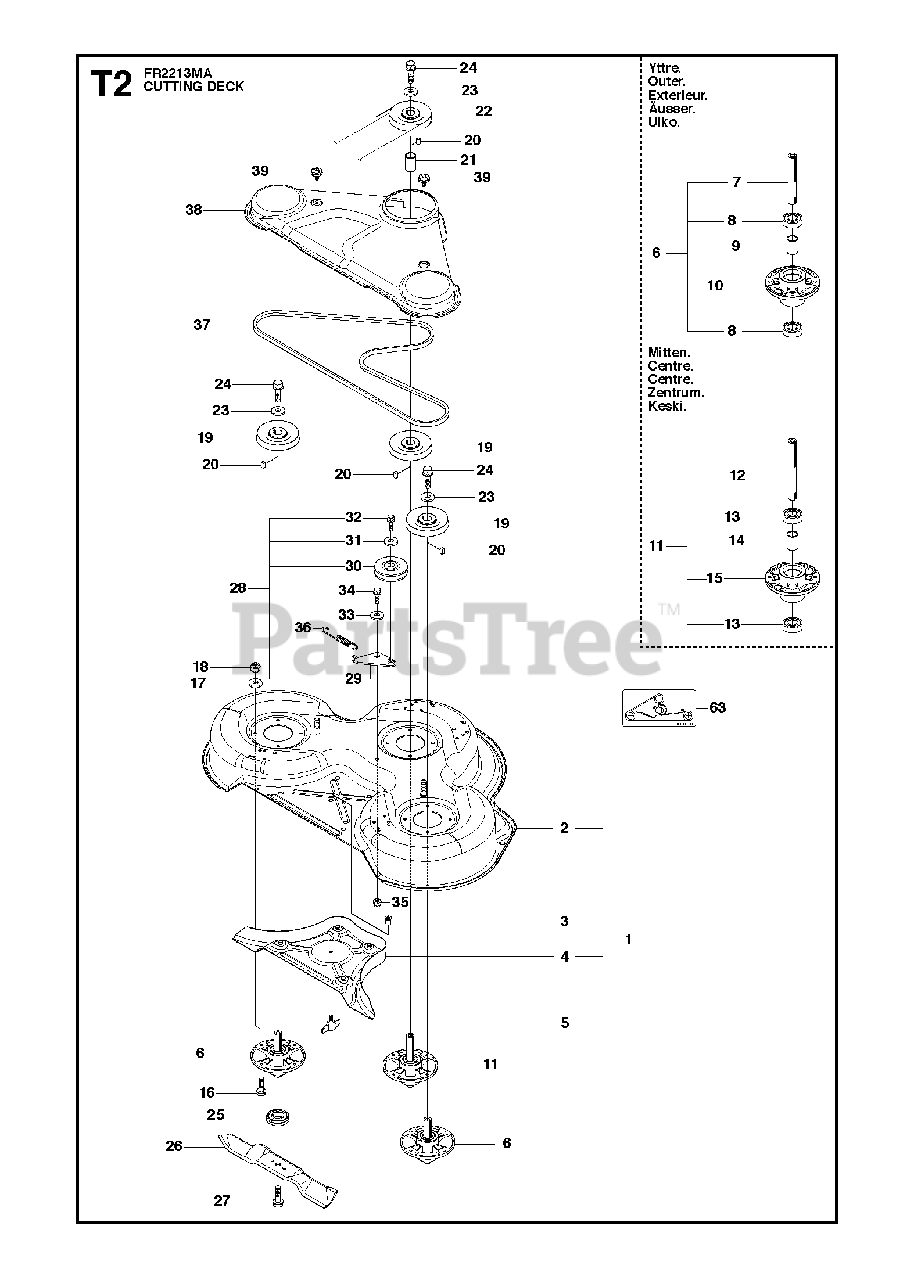

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Jonsered 581237405

No Description Available

$

$

Not available

2

Jonsered 581117607

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 506916201

NUT

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

4

Jonsered 544065801

No Description Available

Note: . 1

$

$

Not available

5

Jonsered 544066101

No Description Available

Note: . 1

$

$

Not available

6

Jonsered 576384102

BLADE HOUSING ASSY

$94.99

$

Usually ships in 3-10 days

0

7

Jonsered 576384301

SHAFT

Note: . 6

$45.99

$

Usually ships in 3-10 days

0

8

Jonsered 738230434

BEARING

Note: . 6

$45.99

$

Usually ships in 3-10 days

0

9

Jonsered 576384401

SPACING SLEEVE

Note: . 6

$

$

Not available

10

Jonsered 576384201

BEARING HOUSING

Note: . 6

$

$

Not available

11

Jonsered 576384103

No Description Available

$

$

Not available

12

Jonsered 576384303

No Description Available

Note: . 11

$

$

Not available

13

Jonsered 738230434

BEARING

Note: . 11

$45.99

$

Usually ships in 3-10 days

0

14

Jonsered 576384401

SPACING SLEEVE

Note: . 11

$

$

Not available

15

Jonsered 576384201

BEARING HOUSING

Note: . 11

$

$

Not available

16

Jonsered 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

17

Jonsered 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

18

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

19

Jonsered 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

20

Jonsered 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

21

Jonsered 544068003

No Description Available

$

$

Not available

22

Jonsered 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

23

Jonsered 734117441

WASHER

$6.99

$

In Stock, Qty 6

0

24

Jonsered 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

25

Jonsered 544064901

No Description Available

$11.99

$

Usually ships in 3-10 days

0

26

Jonsered 579652501

No Description Available

$

$

Not available

27

Jonsered 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

28

Jonsered 506797301

No Description Available

$

$

Not available

29

Jonsered 506797101

BRACKET

Note: . 28

$22.99

$

Usually ships in 3-10 days

0

30

Jonsered 506793201

PULLEY
(Superseded to 580794101)

Note: . 28

$

$

Not available

31

Jonsered 734116441

SPACER

Note: . 28

$6.99

$

Usually ships in 3-10 days

0

32

Jonsered 506558302

BOLT

Note: . 28

$4.99

$

In Stock, only 1 left!

0

33

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

34

Jonsered 725245171

SCREW

$2.49

$

In Stock, Qty 5

0

35

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

36

Jonsered 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

37

Jonsered 505208601

No Description Available

$

$

Not available

38

Jonsered 522821902

No Description Available

$

$

Not available

39

Jonsered 544400501

SCREW

$5.99

$

In Stock, Qty 8

0

63

Jonsered 506789701

DECAL

$

$

Not available
