FR 2213 RA (966632001) - Jonsered Rear-Engine Riding Mower (2012) STEERING Parts Diagram

Rear-Engine Riding Mower

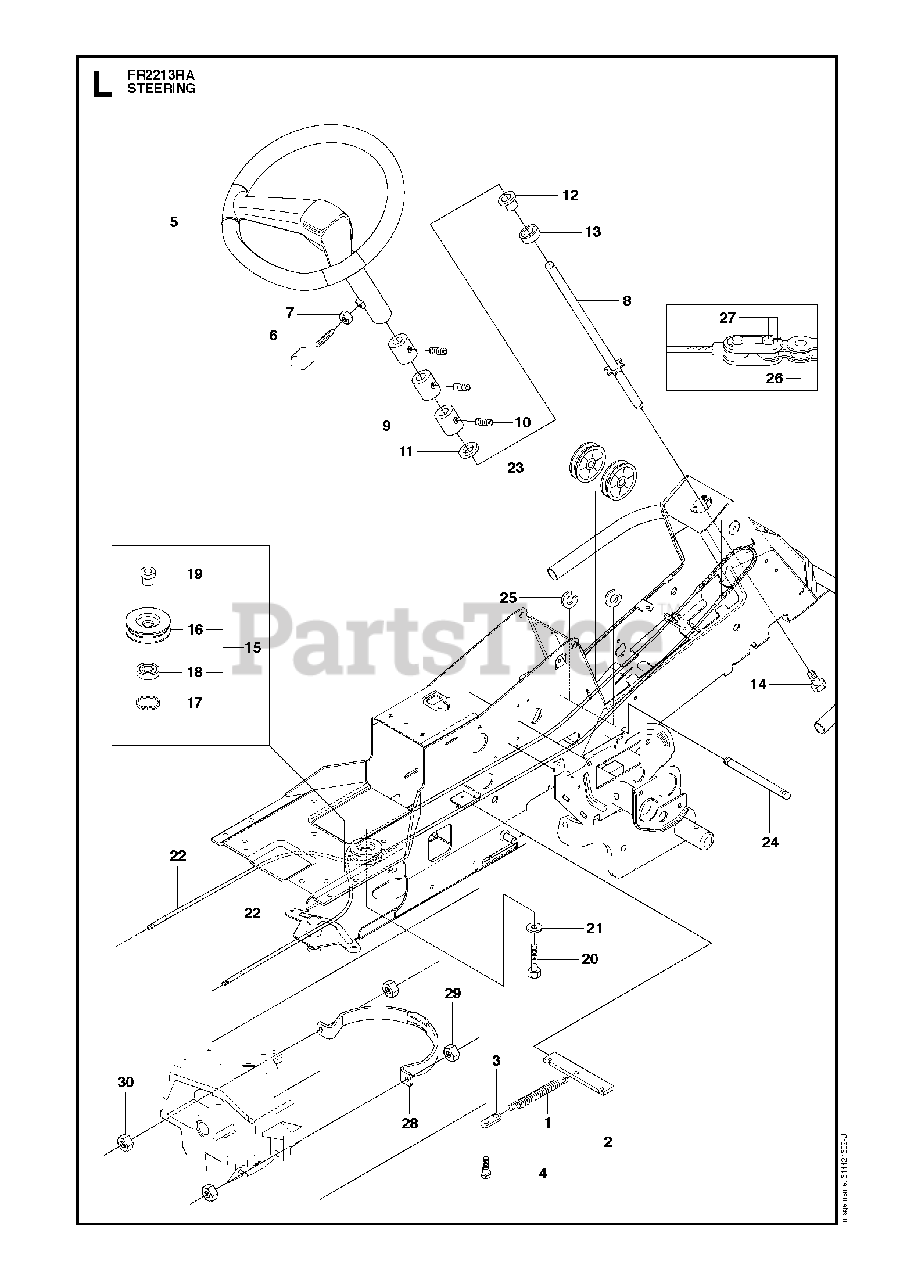

STEERING Parts Diagram

  • Title

1

Jonsered 506671901

SPRING

$40.99

$

In Stock, only 4 left!

0

2

Jonsered 506576301

SPRING BRACKET

$

$

Not available

3

Jonsered 506670801

CONNECTOR

$11.99

$

Usually ships in 3-10 days

0

4

Jonsered 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

5

Jonsered 544375203

STEERING WHEEL

$

$

Not available

6

Jonsered 728745505

SCREW

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 731231801

NUT
(Superseded to 695008078)

$

$

Not available

8

Jonsered 535499501

ROD STEERING ASSY

$

$

Not available

9

Jonsered 506863401

SPACER

$

$

Not available

10

Jonsered 728844305

SCREW

$

$

Not available

11

Jonsered 506863601

WASHER

$9.49

$

Usually ships in 3-10 days

0

12

Jonsered 506887801

SPACER

$9.49

$

Usually ships in 3-10 days

0

13

Jonsered 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

14

Jonsered 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

15

Jonsered 506500903

PULLEY

Note: New part number : 576 49 25-01

$

$

Not available

16

Jonsered 535424101

ROLLER

Note: . 15

$

$

Not available

17

Jonsered 735314010

CIRCLIP SGH 47

Note: . 15

$7.99

$

In Stock, only 1 left!

0

18

Jonsered 738220419

BALL-BEARING 6204-2RS

Note: . 15

$26.99

$

In Stock, Qty 11

0

19

Jonsered 506500802

BUSHING

Note: . 15

$

$

Not available

20

Jonsered 506675403

COLLAR SCREW

$

$

Not available

21

Jonsered 734117441

WASHER

$6.99

$

In Stock, Qty 6

0

22

Jonsered 506589104

RP STEERING CABLE COMPLETE
(Superseded to 577199904)

$28.99

$

In Stock, only 1 left!

0

23

Jonsered 506522401

ROLLER

$20.99

$

In Stock, only 3 left!

0

24

Jonsered 506539403

SHAFT

$28.99

$

Usually ships in 3-10 days

0

25

Jonsered 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

26

Jonsered 506554601

STEERING CHAIN

$31.99

$

In Stock, only 2 left!

0

27

Jonsered 506554701

LINK

$7.99

$

In Stock, only 2 left!

0

28

Jonsered 544427301

WIRE GUIDE

$45.99

$

Usually ships in 3-10 days

0

29

Jonsered 731232051

NUT

$

$

Not available

30

Jonsered 732212051

NUT

$6.99

$

In Stock, only 4 left!

0
