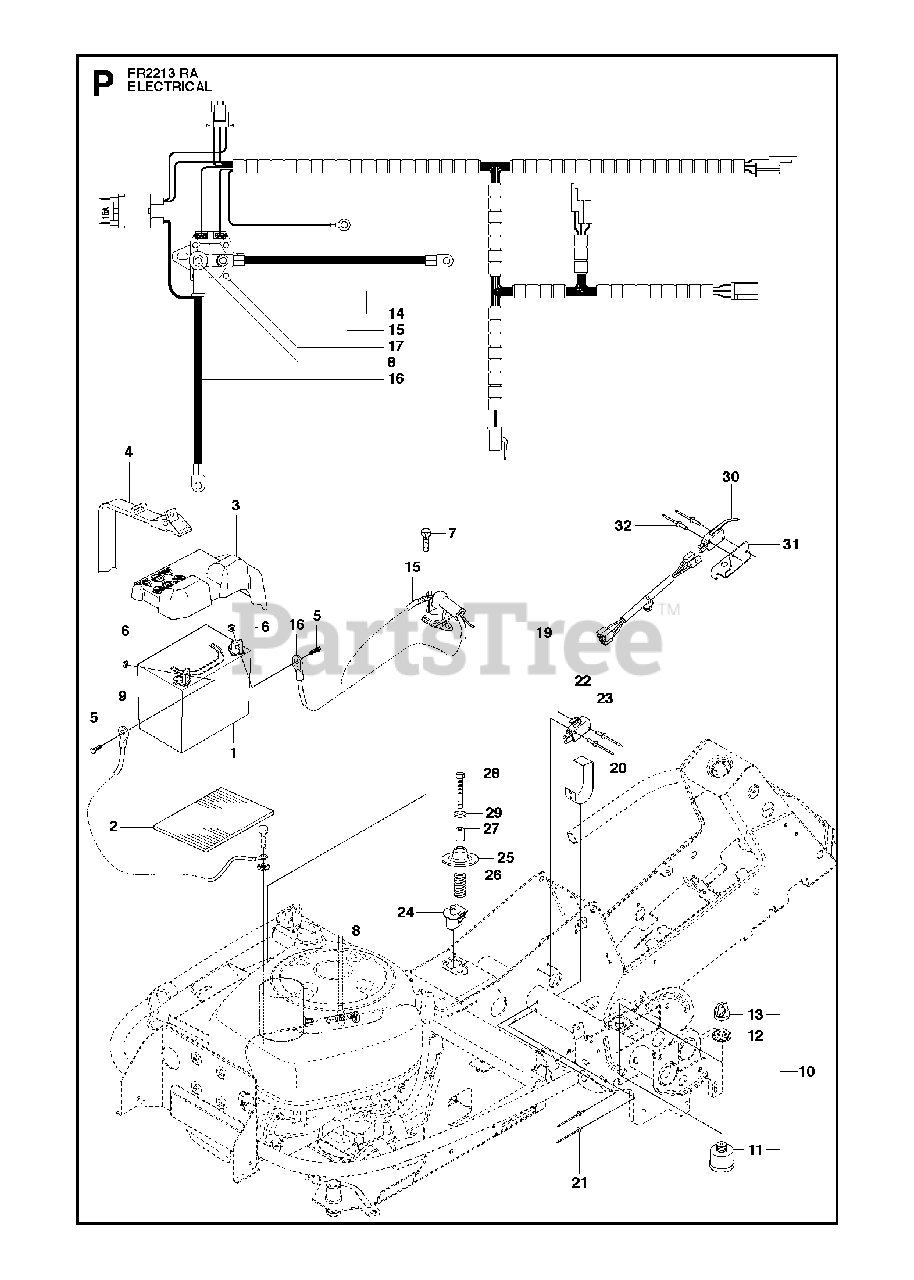

FR 2213 RA (966773301) - Jonsered Rear-Engine Riding Mower (2012) ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title

1

Jonsered 510138501

No Description Available

$

$

Not available

2

Jonsered 535441101

MAT

$

$

Not available

3

Jonsered 510026901

No Description Available

$

$

Not available

4

Jonsered 506836802

BELT

$20.99

$

Usually ships in 3-10 days

0

5

Jonsered 522622101

SCREW EHHM

$

$

Not available

6

Jonsered 522624301

NUT

$

$

Not available

7

Jonsered 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 506899801

NUT

$

$

Not available

9

Jonsered 544967603

No Description Available

$

$

Not available

10

Jonsered 544442101

IGNITION SWITCH

$31.99

$

Usually ships in 3-10 days

0

11

Jonsered 544442201

IGNITION SWITCH

Note: . 10

$26.99

$

Usually ships in 3-10 days

0

12

Jonsered 544442301

NUT

Note: . 10

$3.49

$

Usually ships in 3-10 days

0

13

Jonsered 544442401

IGNITION KEY

Note: . 10

$10.99

$

In Stock, only 1 left!

0

14

Jonsered 578338301

No Description Available

$48.99

$

Usually ships in 3-10 days

0

15

Jonsered 544928601

CABLE

$

$

Not available

16

Jonsered 544926104

No Description Available

$

$

Not available

17

Jonsered 544439801

RELAY

$22.99

$

In Stock, only 2 left!

0

19

Jonsered 576185401

WIRING
(Superseded to 544892201)

$22.99

$

Usually ships in 3-10 days

0

20

Jonsered 506909301

BRACKET

$7.99

$

Usually ships in 3-10 days

0

21

Jonsered 722783902

RIVET

$

$

Not available

22

Jonsered 574316001

SWITCH

$17.99

$

In Stock, only 1 left!

0

23

Jonsered 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 506909601

SWITCH

$31.99

$

In Stock, only 1 left!

0

25

Jonsered 506909701

WASHER

$26.99

$

Usually ships in 3-10 days

0

26

Jonsered 544441201

SPRING

$

$

Not available

27

Jonsered 506909902

SPACER TUBE

$5.99

$

Usually ships in 3-10 days

0

28

Jonsered 725246051

SCREW
(Superseded to 725246071)

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

30

Jonsered 574316101

MICRO SWITCH

$17.99

$

In Stock, only 1 left!

0

31

Jonsered 544415701

BRACKET

$6.99

$

Usually ships in 3-10 days

0

32

Jonsered 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0
