FR 2216 FA (966414801) - Jonsered Rear-Engine Riding Mower (2010-03) TRANSMISSION Parts Diagram

Rear-Engine Riding Mower

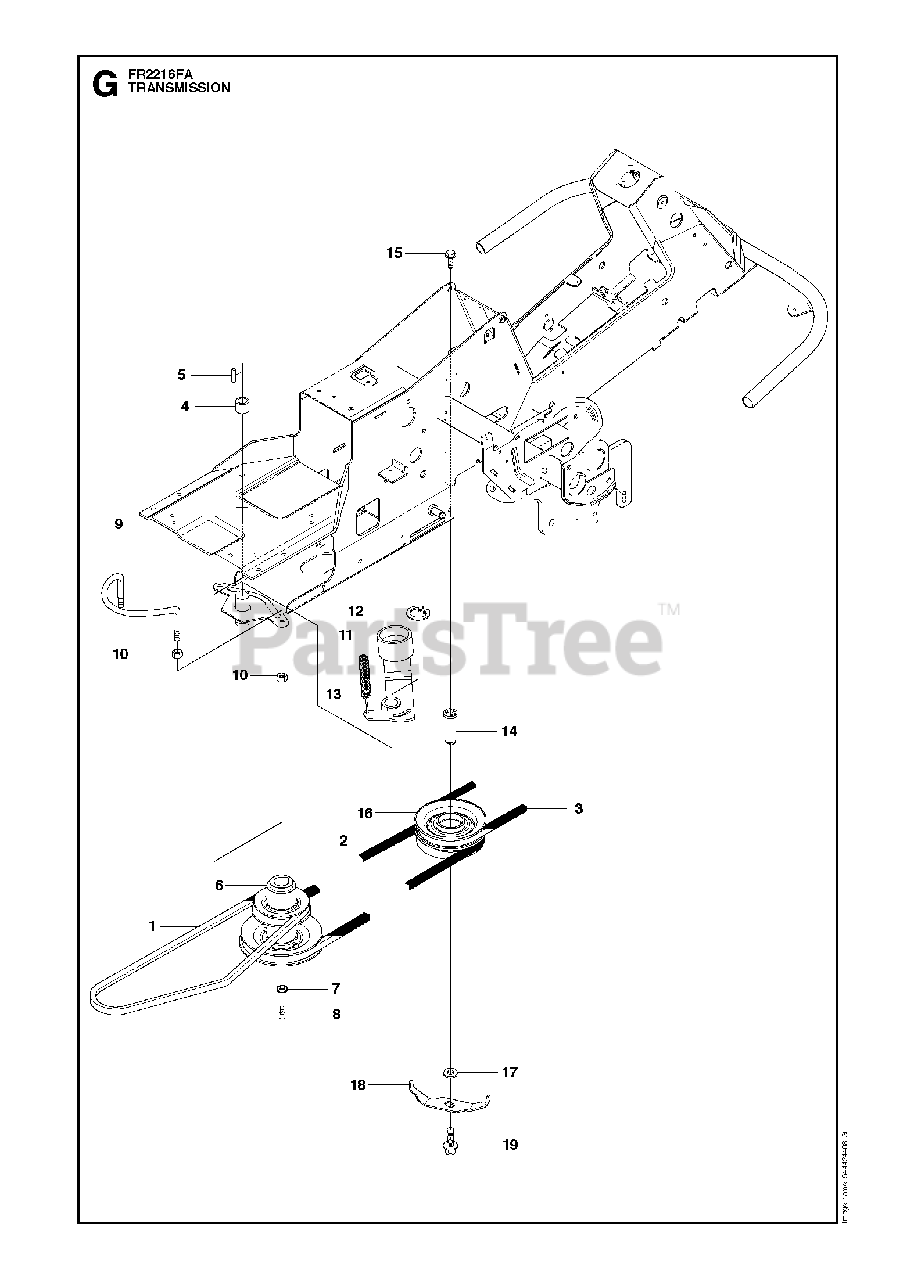

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 522930301

BELT
(Superseded to 589531201)

$33.99

$

In Stock, only 4 left!

0

2

Jonsered 506986501

WASHER **

$7.49

$

In Stock, only 3 left!

0

3

Jonsered 506986601

SLEEVE

$9.99

$

Usually ships in 3-10 days

0

4

Jonsered 502451901

PULLEY B

$59.99

$

In Stock, only 1 left!

0

5

Jonsered 506986801

FAN
(Superseded to 583350101)

$31.99

$

In Stock, only 3 left!

0

6

Jonsered 735311500

RETAINING RING **

$6.99

$

In Stock, only 2 left!

0

7

Jonsered 502451601

TUBE

$23.99

$

Usually ships in 3-10 days

0

8

Jonsered 506987001

CLAMP
(Superseded to 505131102)

$7.49

$

In Stock, only 1 left!

0

9

Jonsered 535402807

CLIP

Note: . 1

$

$

Not available

10

Jonsered 535402832

PLUG

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

11

Jonsered 535402829

MAGNET

Note: . 1

$

$

Not available

12

Jonsered 502452001

MAGNET HOLDER

Note: . 1

$9.99

$

Usually ships in 3-10 days

0

13

Jonsered 535402837

SEALING
(Superseded to 583349301)

Note: . 1

$21.99

$

In Stock, Qty 10

0

14

Jonsered 502453201

CONTROL LEVER

Note: . 1

$45.99

$

Usually ships in 3-10 days

0

15

Jonsered 535402809

PIN

Note: . 1

$

$

Not available

16

Jonsered 535402817

ARM

Note: . 1

$27.99

$

In Stock, only 1 left!

0

17

Jonsered 535402816

PIN

Note: . 1

$5.99

$

Usually ships in 3-10 days

0

18

Jonsered 535402833

PIN

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

19

Jonsered 535402838

ARM

Note: . 1

$21.99

$

Usually ships in 3-10 days

0
