FR 2216 FA (966773601) - Jonsered Rear-Engine Riding Mower (2012) TRANSMISSION Parts Diagram

Rear-Engine Riding Mower

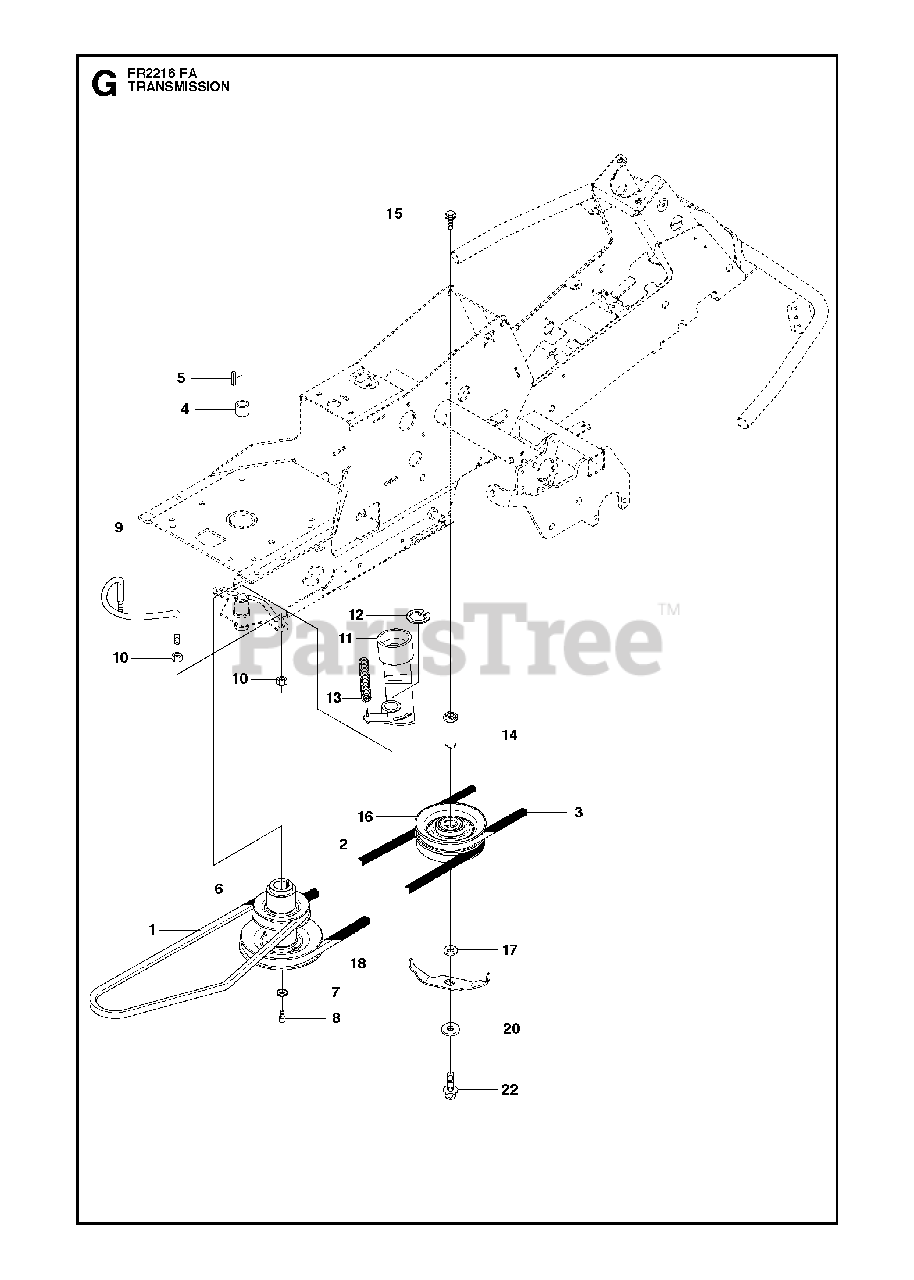

TRANSMISSION Parts Diagram

  • Title

1

Jonsered 522930301

BELT
(Superseded to 506988301)

$26.99

$

In Stock, only 1 left!

0

2

Jonsered 544400201

BELT
(Superseded to 589530401)

$48.99

$

In Stock, only 1 left!

0

3

Jonsered 535411901

BELT
(Superseded to 585034501)

$48.46

$

Usually ships in 3-10 days

0

4

Jonsered 506509201

SPACER

$12.99

$

In Stock, only 1 left!

0

5

Jonsered 506555901

KEY

$6.99

$

In Stock, only 1 left!

0

6

Jonsered 535482401

PULLEY

$102.99

$

Usually ships in 3-10 days

0

7

Jonsered 506597501

WASHER

$

$

Not available

8

Jonsered 506556002

SCREW

$9.49

$

Usually ships in 3-10 days

0

9

Jonsered 506664501

BELT GUIDE

$42.99

$

Usually ships in 3-10 days

0

10

Jonsered 731232051

NUT

$

$

Not available

11

Jonsered 535484401

TENSIONER

$75.99

$

In Stock, only 1 left!

0

12

Jonsered 735312600

RETAINING RING SGA 25

$5.99

$

In Stock, only 3 left!

0

13

Jonsered 506665601

SPRING

$

$

Not available

14

Jonsered 544426101

SHAFT
(Superseded to 581916401)

$31.99

$

Usually ships in 3-10 days

0

15

Jonsered 506675402

BOLT

$9.49

$

In Stock, only 3 left!

0

16

Jonsered 535482201

PULLEY

$112.99

$

Usually ships in 3-10 days

0

17

Jonsered 506775701

WASHER

$7.99

$

In Stock, only 1 left!

0

18

Jonsered 544405301

BELT GUIDE

$10.99

$

Usually ships in 3-10 days

0

20

Jonsered 506597501

WASHER

$

$

Not available

22

Jonsered 506570105

BOLT
(Superseded to 506597401)

$9.49

$

In Stock, only 1 left!

0
