FR 2218 A 4X4 (966978601) - Jonsered Rear-Engine Riding Mower (2009-02) 44 /112CM CUTTING DECK Parts Diagram

Rear-Engine Riding Mower

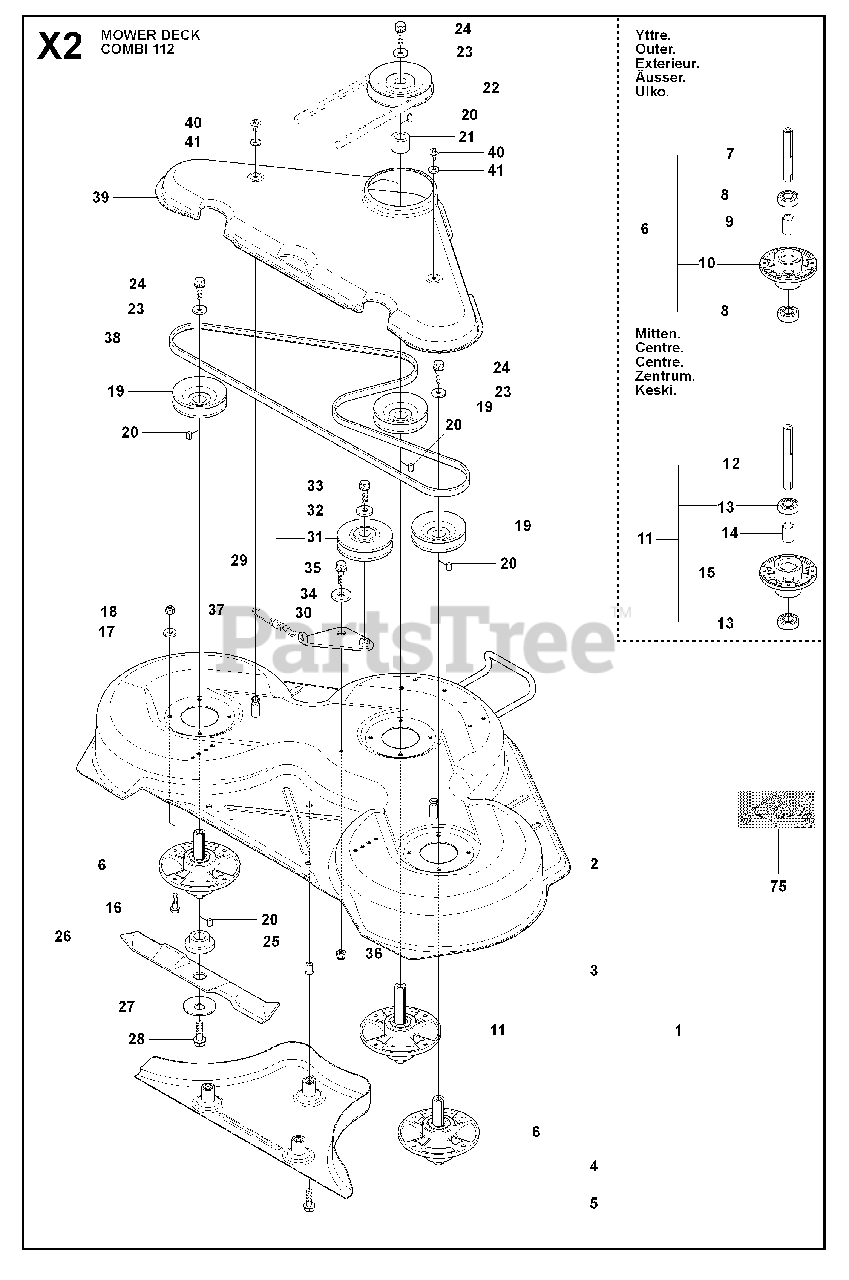

44 /112CM CUTTING DECK Parts Diagram

  • Title

1

Jonsered 544113004

No Description Available

$

$

Not available

2

Jonsered 544113102

No Description Available

$

$

Not available

3

Jonsered 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

4

Jonsered 544449301

PLUG

$68.99

$

Usually ships in 3-10 days

0

5

Jonsered 506570104

BOLT

$6.99

$

In Stock, only 1 left!

0

6

Jonsered 544065901

RP SPINDLE ASSY
(Superseded to 576384102)

$94.99

$

Usually ships in 3-10 days

0

7

Jonsered 544067902

SHAFT

$

$

Not available

8

Jonsered 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

9

Jonsered 544068001

SPACER

$

$

Not available

10

Jonsered 544067801

BEARING HOUSING

$

$

Not available

11

Jonsered 544065902

RP SPINDLE ASSY
(Superseded to 576384101)

$94.99

$

Usually ships in 3-10 days

0

12

Jonsered 544067901

SHAFT

$

$

Not available

13

Jonsered 738230434

BEARING

$45.99

$

Usually ships in 3-10 days

0

14

Jonsered 544068001

SPACER

$

$

Not available

15

Jonsered 544067801

BEARING HOUSING

$

$

Not available

16

Jonsered 535423801

BOLT

$6.99

$

Usually ships in 3-10 days

0

17

Jonsered 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

18

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

19

Jonsered 506922101

PULLEY

$62.99

$

In Stock, only 1 left!

0

20

Jonsered 506533501

KEY

$6.49

$

In Stock, only 2 left!

0

21

Jonsered 544068002

SPACER

$14.99

$

In Stock, only 3 left!

0

22

Jonsered 506778601

PULLEY

$74.99

$

Usually ships in 3-10 days

0

23

Jonsered 734117441

WASHER

$6.99

$

In Stock, Qty 7

0

24

Jonsered 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

25

Jonsered 535504202

ADAPTER

$31.99

$

Usually ships in 3-10 days

0

26

Jonsered 544102801

BLADE
(Superseded to 504188101)

$36.99

$

Usually ships in 3-10 days

0

27

Jonsered 506792301

WASHER

$

$

Not available

28

Jonsered 544114101

SCREW

$6.99

$

In Stock, Qty 8

0

29

Jonsered 506540701

BELT TENSIONER ASSY

$

$

Not available

30

Jonsered 506519501

BELT TENSIONING ARM

$91.99

$

Usually ships in 3-10 days

0

31

Jonsered 506532701

PULLEY

$69.99

$

In Stock, only 1 left!

0

32

Jonsered 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

33

Jonsered 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

34

Jonsered 506918702

WASHER
(Superseded to 584288601)

$

$

Not available

35

Jonsered 725245171

SCREW

$2.49

$

In Stock, Qty 5

0

36

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

37

Jonsered 506533101

SPRING

$17.99

$

In Stock, only 1 left!

0

38

Jonsered 535411901

BELT
(Superseded to 585034501)

$48.46

$

Usually ships in 3-10 days

0

39

Jonsered 544096202

No Description Available

$

$

Not available

40

Jonsered 506982601

SCREW

$6.99

$

In Stock, Qty 7

0

41

Jonsered 506559701

WASHER

$5.99

$

In Stock, Qty 5

0

75

Jonsered 506789701

DECAL

$

$

Not available
