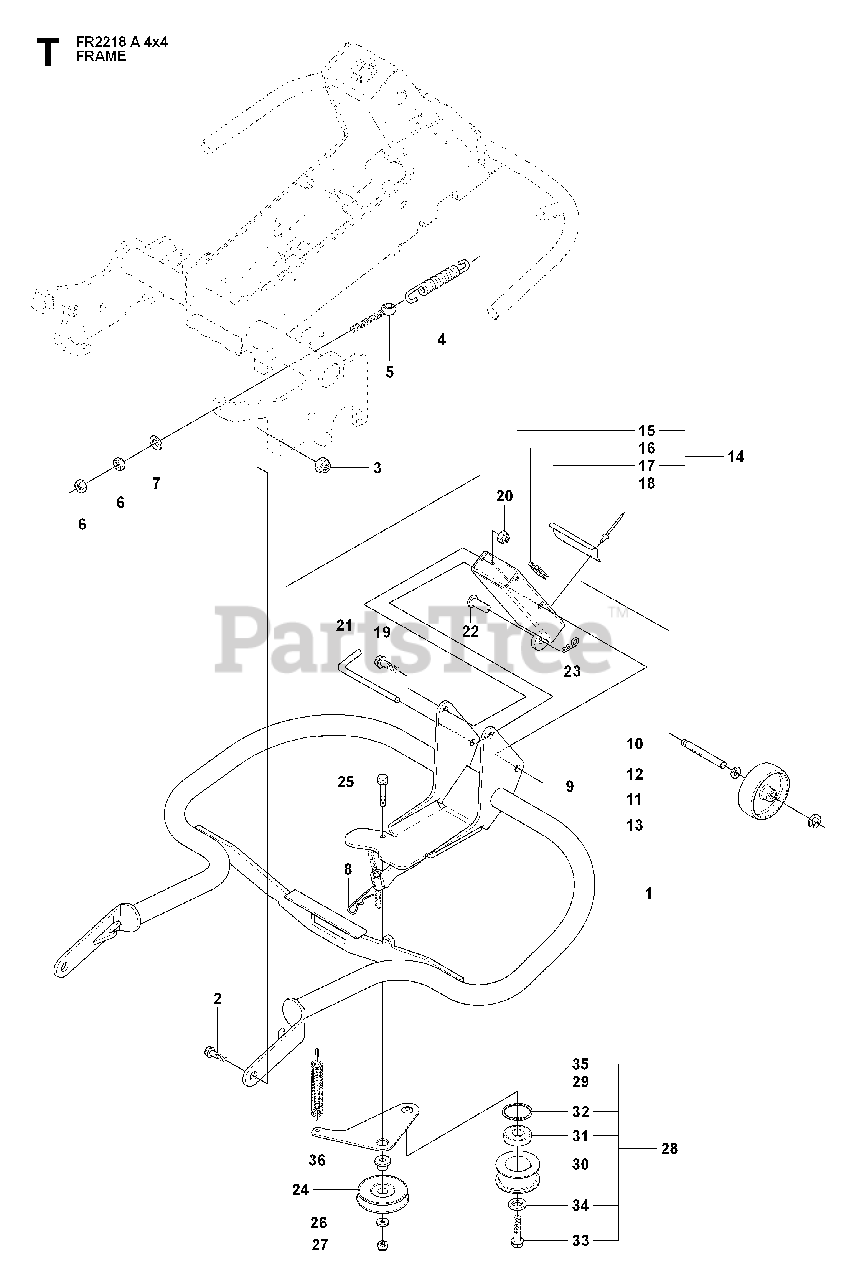

FR 2218 A 4X4 (966978601) - Jonsered Rear-Engine Riding Mower (2009-02) FRAME Parts Diagram

Rear-Engine Riding Mower

FRAME Parts Diagram

  • Title

1

Jonsered 535490105

No Description Available

$

$

Not available

2

Jonsered 506895801

BOLT

$10.99

$

Usually ships in 3-10 days

0

3

Jonsered 732252201

NUT

$3.49

$

In Stock, Qty 5

0

4

Jonsered 506837601

SPRING

$50.99

$

In Stock, only 2 left!

0

5

Jonsered 506837701

SCREW

$14.99

$

In Stock, only 2 left!

0

6

Jonsered 731232051

NUT

$

$

Not available

7

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Jonsered 506966601

RETAINER

$6.99

$

Usually ships in 3-10 days

0

9

Jonsered 506981401

WHEEL ASSY

$

$

Not available

10

Jonsered 506980001

SHAFT

$

$

Not available

11

Jonsered 506979601

WHEEL

$

$

Not available

12

Jonsered 734117771

BUSHING

$6.49

$

In Stock, only 2 left!

0

13

Jonsered 735311520

RETAINING RING

$5.99

$

Usually ships in 3-10 days

0

14

Jonsered 506997801

LINK ASSY

$

$

Not available

15

Jonsered 506997901

LINK

$

$

Not available

16

Jonsered 506963701

BRACKET

$

$

Not available

17

Jonsered 506982801

BRACKET

$

$

Not available

18

Jonsered 722783902

RIVET

$

$

Not available

19

Jonsered 506597401

BOLT

$9.49

$

In Stock, only 1 left!

0

20

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

21

Jonsered 506974601

PIN

$22.99

$

In Stock, only 1 left!

0

22

Jonsered 721861701

BOLT

$

$

Not available

23

Jonsered 721680251

R-CLIP

$5.99

$

Usually ships in 3-10 days

0

24

Jonsered 506974801

PULLEY

$82.99

$

In Stock, only 1 left!

0

25

Jonsered 725246151

BOLT

$7.99

$

In Stock, only 1 left!

0

26

Jonsered 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

27

Jonsered 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

28

Jonsered 535493601

BELT TENSIONER ASSY

$

$

Not available

29

Jonsered 535493701

TENSIONER

$

$

Not available

30

Jonsered 506928901

%PULLEY
(Superseded to 505153901)

$82.99

$

In Stock, only 1 left!

0

31

Jonsered 738210404

BALL BEARING 6004-2RS1

$22.99

$

In Stock, Qty 20+

0

32

Jonsered 735313810

RETAINING RING

$5.99

$

In Stock, only 2 left!

0

33

Jonsered 506558302

BOLT

$4.99

$

In Stock, only 1 left!

0

34

Jonsered 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

35

Jonsered 506976801

SPRING

$22.99

$

Usually ships in 3-10 days

0

36

Jonsered 544007401

SPACER

$

$

Not available
