FR 2218 FA (967179201) - Jonsered Rear-Engine Riding Mower (2013) MOWER LIFT / DECK LIFT Parts Diagram

Rear-Engine Riding Mower

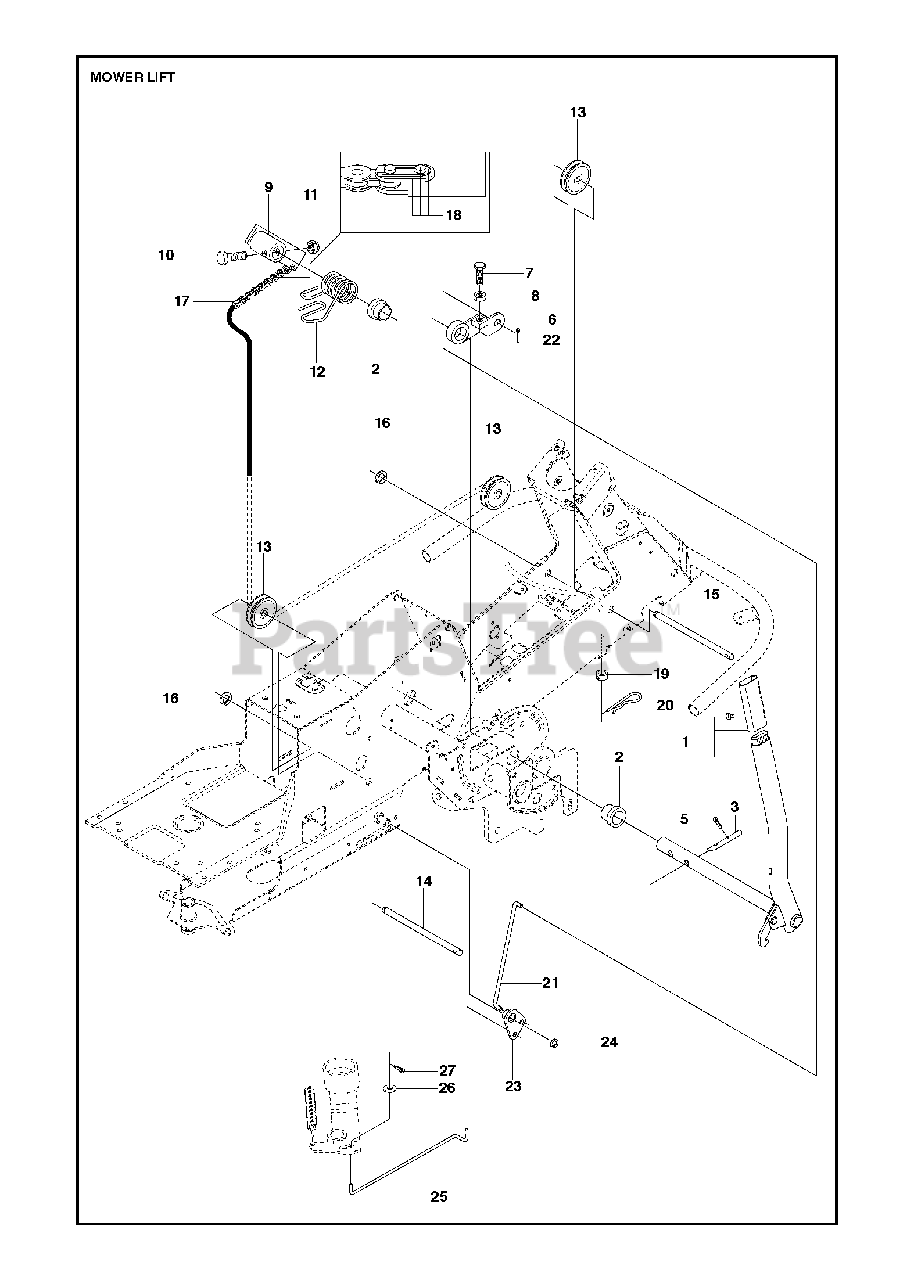

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Jonsered 501018601

LIFTING LEVER ASSY
(Superseded to 501018602)

$

$

Not available

2

Jonsered 506556501

BUSH
(Superseded to 584871301)

$7.99

$

Usually ships in 3-10 days

0

3

Jonsered 525406601

PIN

$12.99

$

Usually ships in 3-10 days

0

5

Jonsered 721618301

SPLIT PIN

$

$

Not available

6

Jonsered 506784301

LEVER CLUTCH

$79.99

$

Usually ships in 3-10 days

0

7

Jonsered 725249751

SCREW

$7.99

$

Usually ships in 3-10 days

0

8

Jonsered 731232051

NUT

$

$

Not available

9

Jonsered 544433601

LIFTING ARM

$

$

Not available

10

Jonsered 725254251

SCREW

$

$

Not available

11

Jonsered 732252201

NUT

$3.49

$

In Stock, Qty 5

0

12

Jonsered 506916801

SPRING

$13.99

$

In Stock, only 1 left!

0

13

Jonsered 506905601

PULLEY

$28.99

$

Usually ships in 3-10 days

0

14

Jonsered 506905701

SHAFT

$

$

Not available

15

Jonsered 506905702

SHAFT

$

$

Not available

16

Jonsered 735311820

LOCK RING

$

$

Not available

17

Jonsered 506554607

CHAIN

$68.99

$

Usually ships in 3-10 days

0

18

Jonsered 506554701

LINK

$7.99

$

In Stock, only 2 left!

0

19

Jonsered 544934201

No Description Available

$

$

Not available

20

Jonsered 506966601

RETAINER

$6.99

$

Usually ships in 3-10 days

0

21

Jonsered 544456901

CONNECTION ROD

$14.99

$

In Stock, only 1 left!

0

22

Jonsered 721618301

SPLIT PIN

$

$

Not available

23

Jonsered 544378601

LINK

$10.99

$

Usually ships in 3-10 days

0

24

Jonsered 735311420

RETAINING RING

$4.99

$

In Stock, Qty 5

0

25

Jonsered 544448801

CONNECTION ROD

$14.99

$

Usually ships in 3-10 days

0

26

Jonsered 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

27

Jonsered 721618301

SPLIT PIN

$

$

Not available
