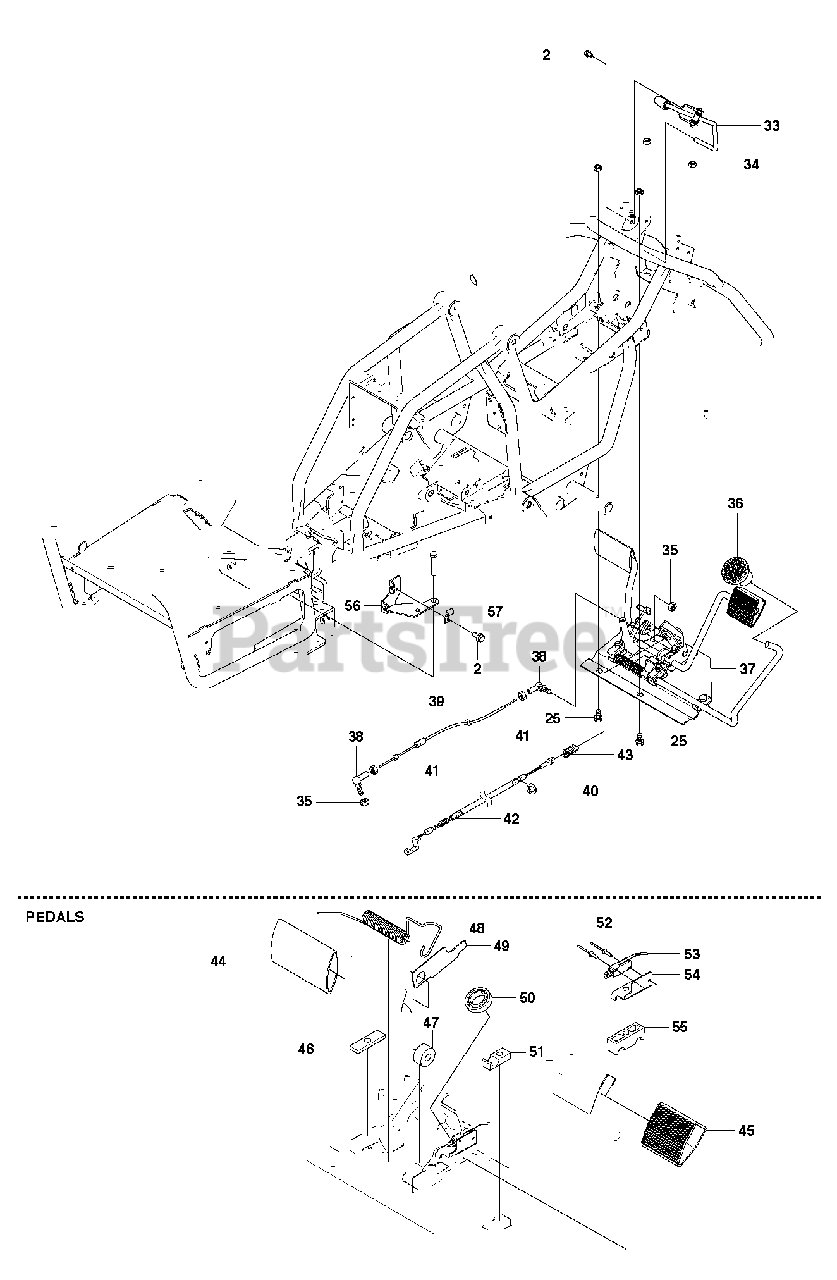

FR 2312 MA (966639885) - Jonsered Rear-Engine Riding Mower (2011-02) CONTROLS Parts Diagram

Rear-Engine Riding Mower

CONTROLS Parts Diagram

  • Title

2

Jonsered 725236461

SCREW

$4.99

$

Usually ships in 3-10 days

0

25

Jonsered 506570103

BOLT

$5.99

$

Usually ships in 3-10 days

0

33

Jonsered 523346001

No Description Available

$

$

Not available

34

Jonsered 506916201

NUT

$7.49

$

Usually ships in 3-10 days

0

35

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

36

Jonsered 535473701

KNOB
(Superseded to 586727401)

$15.99

$

In Stock, only 1 left!

0

37

Jonsered 544126001

PEDAL ASSEMBLY
(Superseded to 583951401)

$226.99

$

Usually ships in 3-10 days

0

38

Jonsered 506557301

CONNECTOR
(Superseded to 578776801)

$12.99

$

In Stock, only 2 left!

0

39

Jonsered 574411105

No Description Available

$102.99

$

Usually ships in 3-10 days

0

40

Jonsered 735310920

E-RING 5

$7.49

$

In Stock, Qty 12

0

41

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 10

0

42

Jonsered 574407601

No Description Available

$

$

Not available

43

Jonsered 575355201

No Description Available

$9.49

$

Usually ships in 3-10 days

0

44

Jonsered 535478802

PEDAL RUBBER, SF
(Superseded to 506506202)

$25.99

$

In Stock, Qty 6

0

45

Jonsered 535478801

PEDAL RUBBER
(Superseded to 506506201)

$29.99

$

In Stock, only 4 left!

0

46

Jonsered 535481001

PLATE
(Superseded to 506804101)

$9.49

$

Usually ships in 3-10 days

0

47

Jonsered 535480201

ROLLER
(Superseded to 535459901)

$

$

Not available

48

Jonsered 535480701

SPRING
(Superseded to 535459501)

$10.99

$

Usually ships in 3-10 days

0

49

Jonsered 535480601

PLATE
(Superseded to 535459601)

$

$

Not available

50

Jonsered 738210204

BALL BEARING 6002-2RS1

$14.99

$

Usually ships in 3-10 days

0

51

Jonsered 535480901

SUPPORT
(Superseded to 506954101)

$7.99

$

Usually ships in 3-10 days

0

52

Jonsered 544440701

RIVET

$4.99

$

Usually ships in 3-10 days

0

53

Jonsered 574316101

MICRO SWITCH

$17.99

$

In Stock, only 1 left!

0

54

Jonsered 544415701

BRACKET

$6.99

$

Usually ships in 3-10 days

0

55

Jonsered 535480801

PEDAL SHAFT CLAMP
(Superseded to 506506501)

$10.99

$

Usually ships in 3-10 days

0

56

Jonsered 522823101

No Description Available

$

$

Not available

57

Jonsered 506566501

CLAMP

$4.99

$

Usually ships in 3-10 days

0
