FR27KC - Exmark Front Runner Front Mount Mower, 27hp Kohler (SN: 790000 - 849999) (2009) Engine Group 27HP Parts Diagram

Front Runner Front Mount Mower, 27hp Kohler

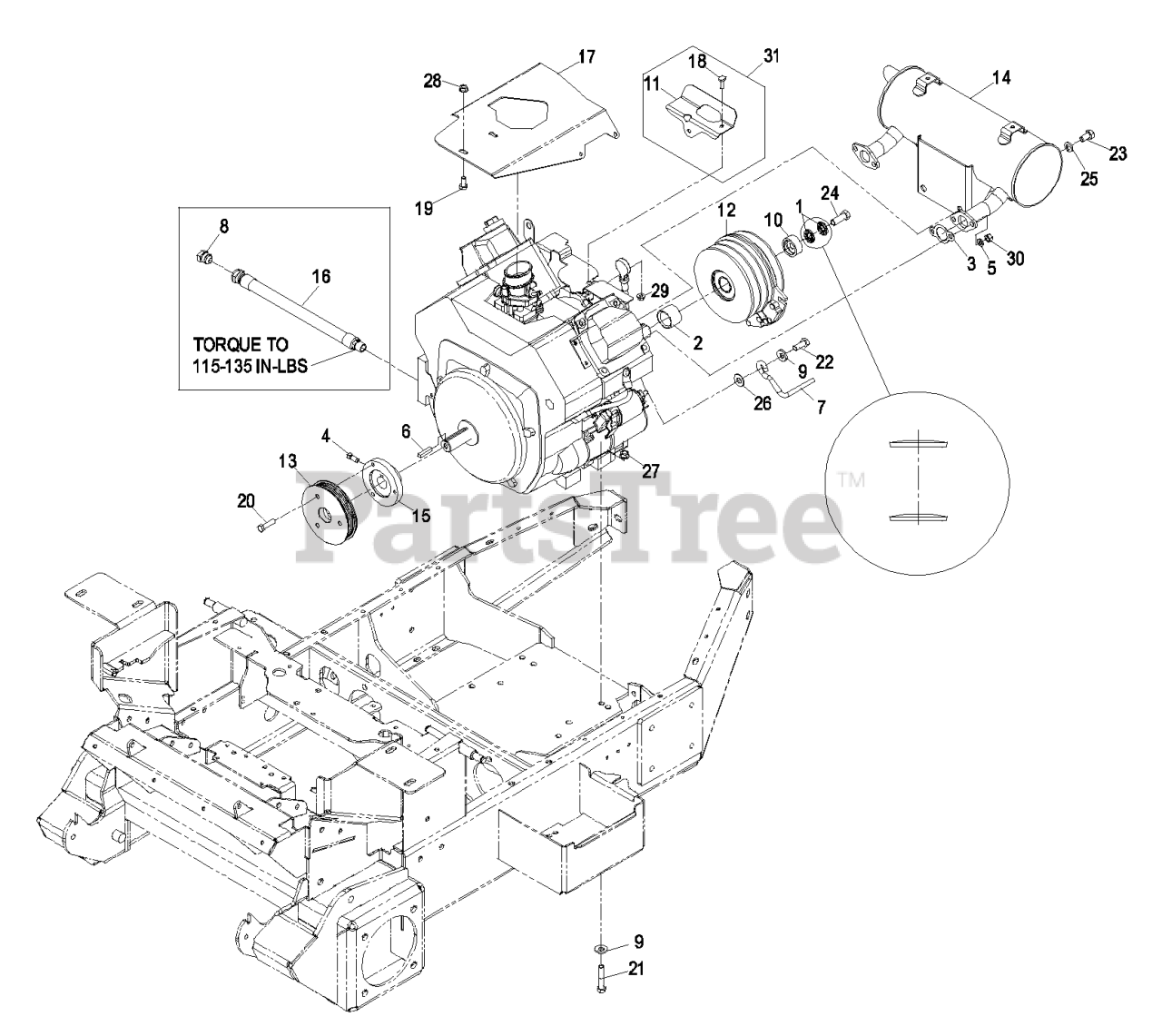

Engine Group 27HP Parts Diagram

  • Title

1

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

2

Exmark 1-633179

SPACER-CLUTCH

$21.99

$

In Stock, only 4 left!

0

3

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

4

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #21 & #24

$2.99

$

In Stock, Qty 9

0

5

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

6

Exmark 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 3 left!

0

7

Exmark 52-4780

ROD-BELT

$15.99

$

In Stock, Qty 7

0

8

Exmark 109-1012

PLUG

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$8.99

$

Usually ships in 3-6 days

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 103-0152

KEEPER-CLUTCH

$13.99

$

In Stock, only 2 left!

0

11

Exmark 103-3535

CABLE HEAT SHIELD KIT

$113.99

$

Usually ships in 3-6 days

0

12

Exmark 109-6627

CLUTCH KIT

$954.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6774

SHEAVE, 5K 4.63

$

$

Not available

14

Exmark 103-7480

KIT,MUFFLER KOHLER

Note: Includes item #3.

$265.99

$

In Stock, only 2 left!

0

15

Exmark 103-8813

HUB,ADAPTER (PLTD)

$

$

Not available

16

Exmark 109-2987

116-5327
(Superseded to 116-5327)

$47.99

$

Usually ships in 3-6 days

0

17

Exmark 109-1830-03

BRACKET, AIRCLNR FMZ-AC

$

$

Not available

18

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 322-5

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #21 & #24

$0.99

$

In Stock, Qty 20+

0

21

Exmark 323-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #21 & #24

$1.49

$

In Stock, Qty 20+

0

22

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 324-2

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

24

Exmark 3212-5

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #21 & #24

$5.49

$

Usually ships in 3-6 days

0

25

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

31

Exmark 103-3535

CABLE HEAT SHIELD KIT

Note: Includes item 29

$113.99

$

Usually ships in 3-6 days

0
