FR500 A (FR500) - Honda Tiller, Made in Japan (SN: FR500-1000001 - FR500-9999999) FR500 CARBURETOR K-K1 Parts Diagram

Tiller, Made in Japan

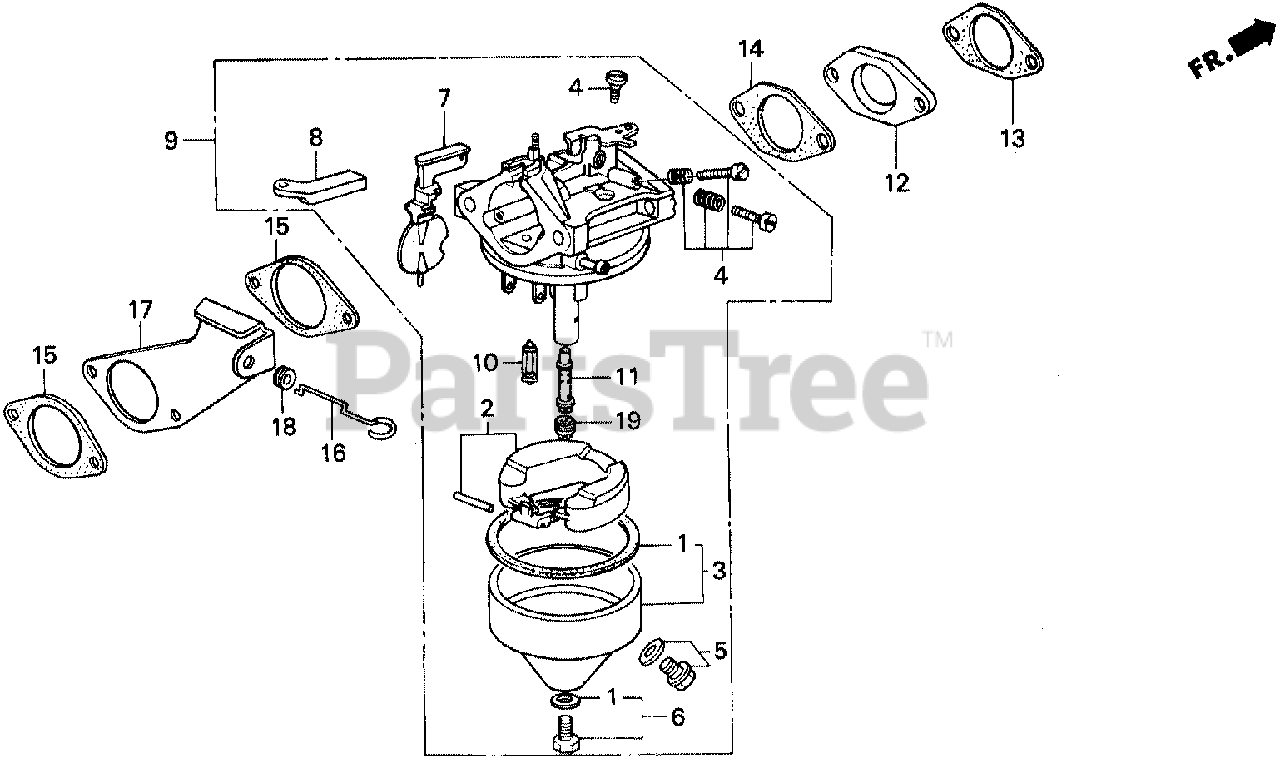

FR500 CARBURETOR K-K1 Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$14.99

$

In Stock, Qty 8

0

2

Honda 16013-883-005

FLOAT SET

$42.99

$

In Stock, only 2 left!

0

3

Honda 16015-896-505

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB30A D.

$

$

Not available

3

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BB30C A.

$28.99

$

Usually ships in 3-6 days

0

4

Honda 16016-ZA1-701

SCREW SET A

Note: Use from Engine SN BB30C B.

$13.99

$

Usually ships in 3-6 days

0

4

Honda 16016-148-611

SEE PART DETAILS - SUP; SCREW SET A
(Superseded to 16016-890-015)

Note: Use up to Engine SN BB30A D.

$

$

Not available

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use from Engine SN BB30C A to BB30C A.

$

$

Currently unavailable

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB30C A.

$14.99

$

In Stock, only 2 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB30A D.

$14.99

$

In Stock, only 2 left!

0

7

Honda 16044-883-015

CHOKE SET

$45.99

$

Usually ships in 3-6 days

0

8

Honda 16046-883-005

ARM, CHOKE LEVER

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16100-883-095

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Not available

9

Honda 16100-883-105

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$85.99

$

In Stock, only 1 left!

0

9

Honda 16100-883-663

SEE PART DETAILS - SUP; CARBURETOR ASSY.

Note: Use from Engine SN 1484487.

$

$

Currently unavailable

9

Honda 16100-883-663

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Currently unavailable

10

Honda 16155-883-005

VALVE, FLOAT

$29.99

$

In Stock, only 2 left!

0

11

Honda 16166-883-005

NOZZLE, MAIN

$14.99

$

Usually ships in 3-6 days

0

12

Honda 16211-883-000

INSULATOR, CARBURETOR

$18.99

$

Usually ships in 3-6 days

0

13

Honda 16212-883-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, only 2 left!

0

14

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.99

$

In Stock, Qty 20+

0

14

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.99

$

In Stock, Qty 20+

0

15

Honda 16269-883-800

GASKET, AIR CLEANER

$1.99

$

In Stock, only 4 left!

0

16

Honda 16611-883-610

ROD, CHOKE CONTROL

$

$

Not available

17

Honda 16612-883-610

STAY, CHOKE CONTROL

$

$

Not available

18

Honda 16613-883-610

GROMMET, CHOKE ROD

$3.49

$

In Stock, only 2 left!

0

19

Honda 99101-124-0680

JET, MAIN (#68)

$12.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0700

JET, MAIN (#70)

$12.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0720

JET, MAIN (#72)

$12.99

$

Usually ships in 3-6 days

0
