FR600 AC/D (FZAV) - Honda Tiller, Made in Japan (SN: FZAV-2010384 - FZAV-2099999) FR600 RECOIL STARTER Parts Diagram

Tiller, Made in Japan

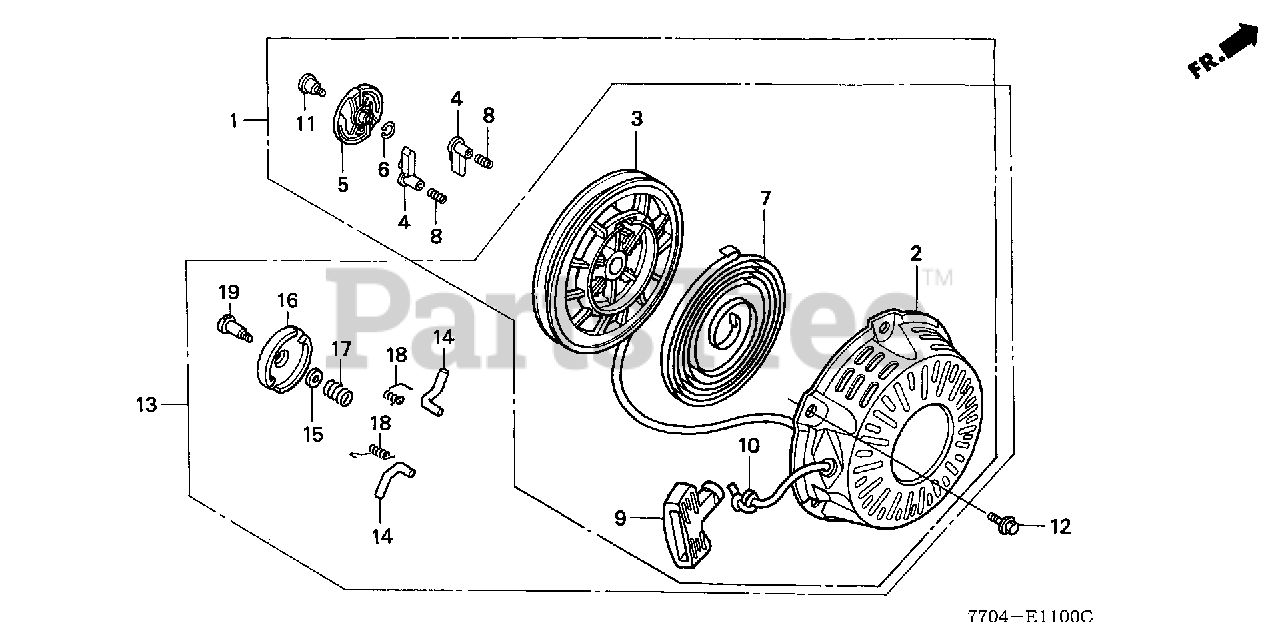

FR600 RECOIL STARTER Parts Diagram

  • Title

2

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$111.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK)

$32.99

$

Usually ships in 3-6 days

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$17.99

$

In Stock, Qty 8

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

$7.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

$7.99

$

In Stock, only 2 left!

0

10

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

$11.99

$

In Stock, Qty 15

0

12

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

13

Honda 28400-ZH8-023YA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-Z0T-003ZB)

$98.99

$

In Stock, only 1 left!

0

13

Honda 28400-ZH8-033YA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)

$

$

Not available

13

Honda 28400-Z0T-003ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$98.99

$

In Stock, only 1 left!

0

14

Honda 28422-ZH8-801

RATCHET, STARTER

$6.49

$

In Stock, Qty 6

0

15

Honda 28431-ZH8-801

PLATE, FRICTION

$4.99

$

In Stock, only 3 left!

0

16

Honda 28433-ZH8-801

GUIDE, RATCHET

$8.49

$

Usually ships in 3-6 days

0

17

Honda 28441-ZH8-801

SPRING, FRICTION

$3.99

$

In Stock, only 2 left!

0

18

Honda 28443-ZH8-801

SPRING, RETURN

$3.49

$

In Stock, Qty 6

0

19

Honda 90003-ZH8-801

SCREW, SETTING

$3.99

$

In Stock, only 4 left!

0
