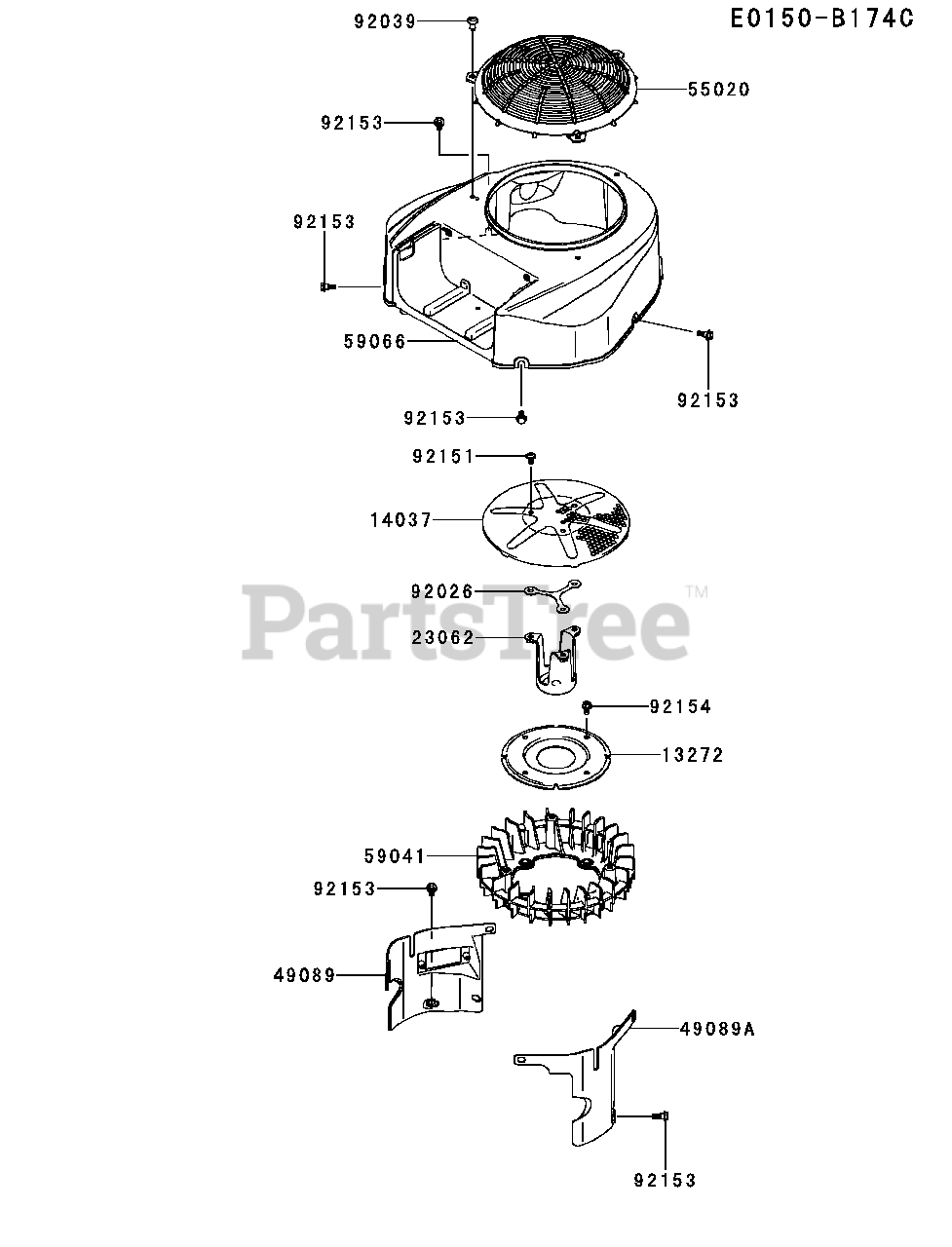

FR600V-AS18 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title

13272

Kawasaki 132721487

PLATE

$9.99

$

In Stock, only 1 left!

0

14037

Kawasaki 1403770089H

SCREEN
(Superseded to 14037-7008)

$

$

Currently unavailable

23062

Kawasaki 230627022

BRACKET-COMP

$12.99

$

In Stock, Qty 7

0

49089

Kawasaki 49089-7091

SHROUD-ENGINE

$

$

Not available

49089A

Kawasaki 49089-7092

SHROUD-ENGINE

$

$

Not available

55020

Kawasaki 550200900

GUARD

$39.99

$

In Stock, Qty 6

0

59041

Kawasaki 59041-0008

FAN

$

$

Not available

59066

Kawasaki 59066-0020

HOUSING-FAN

$

$

Not available

92026

Kawasaki 920267007

SPACER

$5.99

$

In Stock, Qty 20+

0

92039

Kawasaki 920390751

RIVET,GUARD

$0.99

$

In Stock, Qty 20+

0

92151

Kawasaki 92151-7012

BOLT,6X12
(Superseded to 92154-2687)

$1.49

$

In Stock, Qty 20+

0

92153

Kawasaki 921537007

BOLT,RECOIL STARTER

$4.49

$

Usually ships in 2-5 days

0

92154

Kawasaki 921542938

BOLT,6X12

$0.99

$

In Stock, Qty 8

0
