FR650 AC (FZBV) - Honda Tiller, Made in Japan (SN: FZBV-1000001 - FZBV-9999999) ROTARY COVER Parts Diagram

Tiller, Made in Japan

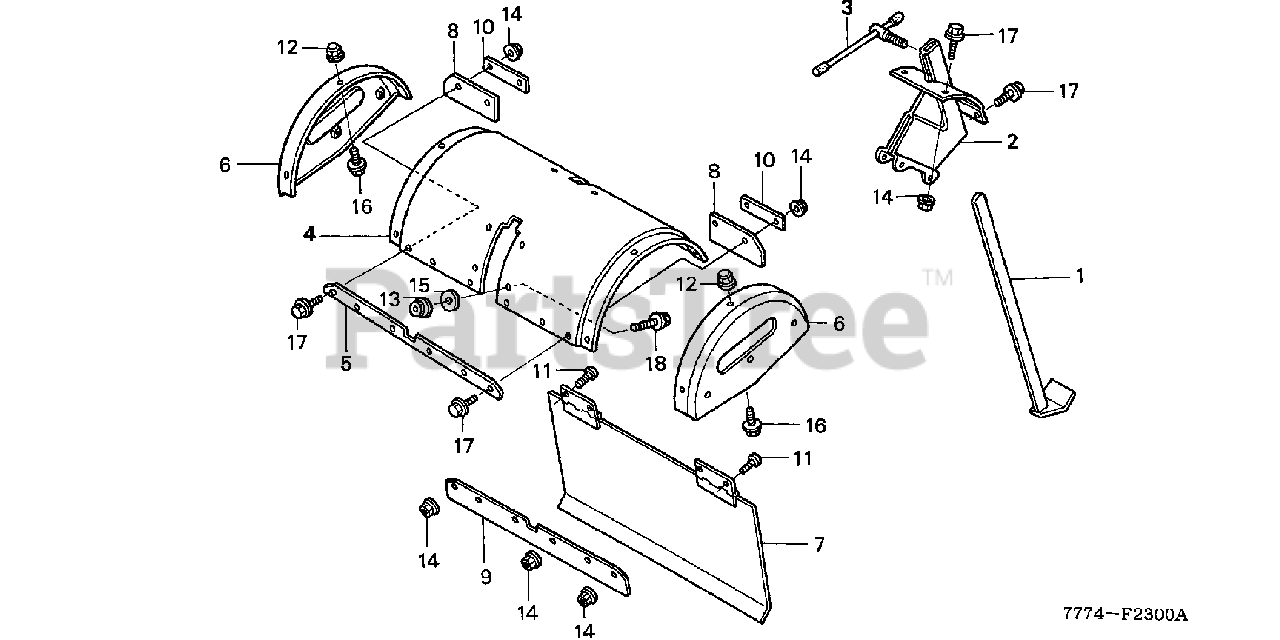

ROTARY COVER Parts Diagram

  • Title

1

Honda 72481-777-003

BAR, DRAG

$

$

Not available

2

Honda 72490-777-013

SEE PART DETAILS - PRI; HOLDER, DRAG BAR

$

$

Not available

3

Honda 76411-777-003

LEVER, HEIGHT ADJUSTING

$29.99

$

Usually ships in 3-6 days

0

4

Honda 76511-777-013ZB

SEE PART DETAILS - PRI; COVER, ROTOR MAIN *R280* (POWER RED)

$

$

Not available

5

Honda 76517-777-000

PLATE, ROTOR COVER

$

$

Not available

6

Honda 76550-777-003ZB

SEE PART DETAILS - PRI; COVER, ROTOR SIDE *R280* (POWER RED)

$

$

Not available

7

Honda 76560-777-770ZA

SPLASH GUARD, ROTARY CENTER *NH105* (C) (MAT BLACK)

$152.99

$

Usually ships in 3-6 days

0

8

Honda 76565-777-003

SPLASH GUARD, FR. ROTARY

$

$

Not available

9

Honda 76572-777-000

STAY, SPLASH GUARD

$

$

Not available

10

Honda 76573-777-003

PLATE, SPLASH GUARD SETTING

$9.49

$

In Stock, only 1 left!

0

11

Honda 90103-777-003

BOLT, SPECIAL (8X16)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90301-777-003

NUT, FLANGE CAP (8MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 4 left!

0

16

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 4 left!

0

18

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0
