FR700 A (FR700) - Honda Tiller, Made in Japan (SN: FR700-1000001 - FR700-9999999) ROTARY TINE Parts Diagram

Tiller, Made in Japan

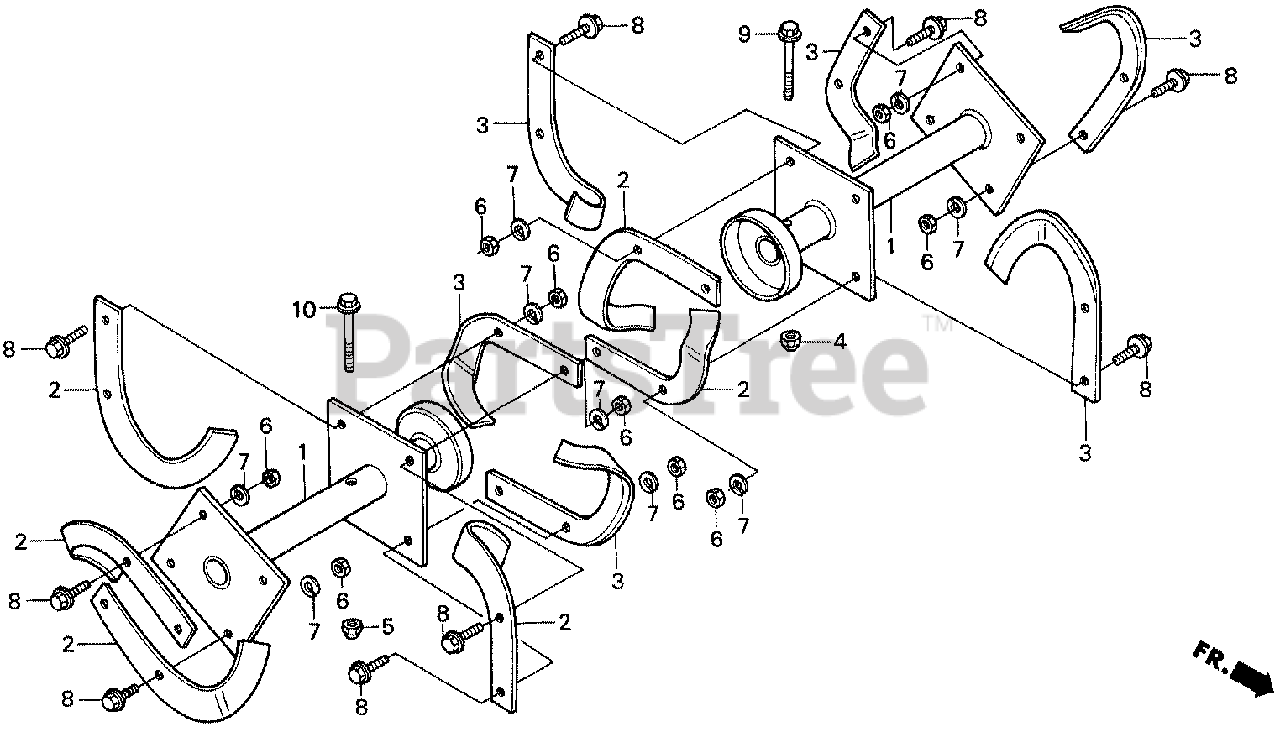

ROTARY TINE Parts Diagram

  • Title

1

Honda 72110-723-750

SHAFT, ROTARY PIPE (NOT AVAILABLE)

Note: Use up to Frame SN 1004976.

$

$

Currently unavailable

1

Honda 72110-723-751

SHAFT, ROTARY PIPE

Note: Use from Frame SN 1004977.

$

$

Currently unavailable

2

Honda 72461-723-750

SEE PART DETAILS - SUP; TINE A, ROTARY

$

$

Currently unavailable

2

Honda 72461-723-700

SEE PART DETAILS - PRI; TINE A, ROTARY

$21.99

$

In Stock, Qty 5

0

3

Honda 72465-723-750

SEE PART DETAILS - SUP; TINE B, ROTARY

$

$

Currently unavailable

3

Honda 72465-723-700

SEE PART DETAILS - PRI; TINE B, ROTARY

$21.99

$

In Stock, Qty 5

0

4

Honda 90110-679-003

NUT, SELF-LOCK (8MM)

Note: Use from Frame SN 1004977.

$9.49

$

Usually ships in 3-6 days

0

4

Honda 90303-692-003

NUT, SELF-LOCK (10MM)

Note: Use up to Frame SN 1004976.

$10.99

$

In Stock, only 4 left!

0

5

Honda 90303-692-003

NUT, SELF-LOCK (10MM)

$10.99

$

In Stock, only 4 left!

0

6

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

Note: Use up to Frame SN 1001466.

$2.49

$

Usually ships in 3-6 days

0

6

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

Note: Use from Frame SN 1001467.

$2.49

$

In Stock, Qty 19

0

7

Honda 94111-10000

WASHER, SPRING (8MM)

Note: Use up to Frame SN 1001466.

$1.99

$

Usually ships in 3-6 days

0

8

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 95701-10050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

Note: Use up to Frame SN 1004976.

$3.99

$

Usually ships in 3-6 days

0

9

Honda 95801-08050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

Note: Use from Frame SN 1004977.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 95701-10050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

Note: Use up to Frame SN 1004976.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 95800-10050-08

SEE PART DETAILS - SUP; BOLT, FLANGE (10X50)
(Superseded to 95801-10050-08)

Note: Use from Frame SN 1004977.

$4.49

$

Usually ships in 3-6 days

0

10

Honda 95801-10050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

Note: Use from Frame SN 1004977.

$4.49

$

Usually ships in 3-6 days

0
