FR700 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1016293 - FR700-9999999) ENGINE BED Parts Diagram

Tiller, Made in Japan

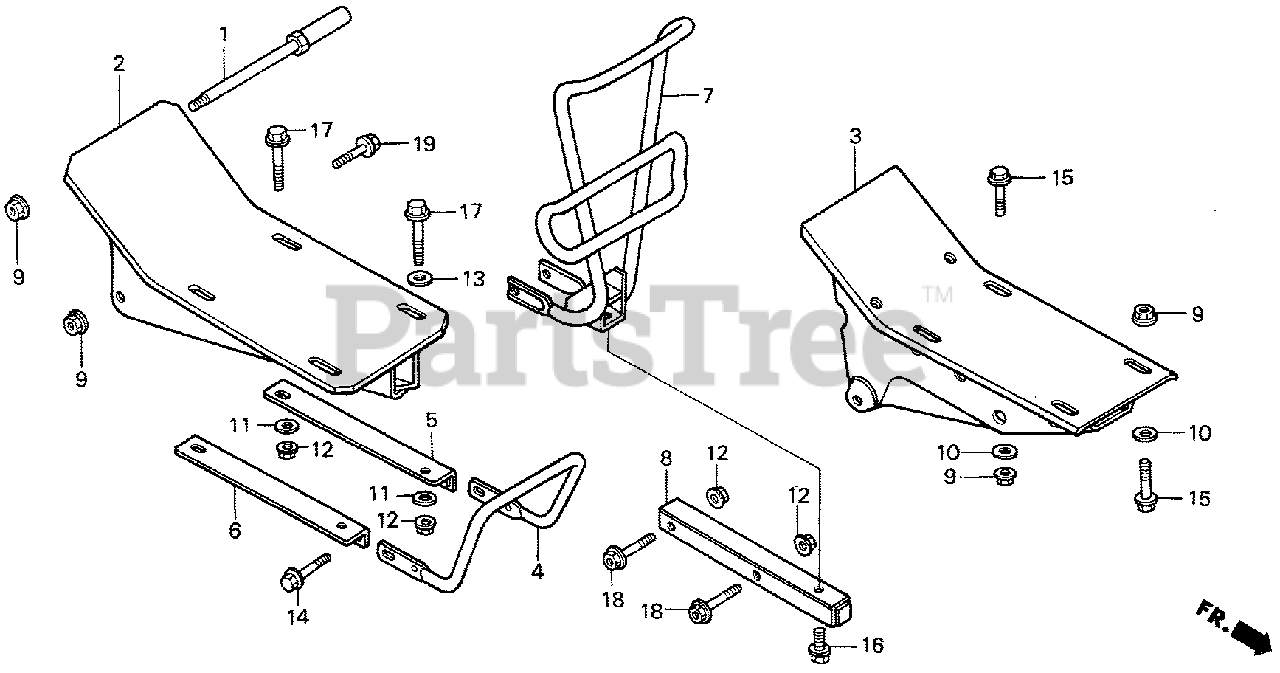

ENGINE BED Parts Diagram

  • Title

1

Honda 22551-723-000

BOLT, TENSIONER ARM

$30.99

$

Usually ships in 3-6 days

0

2

Honda 51110-723-770

BED, ENGINE

$180.99

$

Usually ships in 3-6 days

0

4

Honda 51121-733-000

PIPE, FR. GUARD

$53.99

$

Usually ships in 3-6 days

0

5

Honda 51122-723-981

STAY A, GUARD PIPE

$

$

Not available

6

Honda 51123-723-981

STAY B, GUARD PIPE

$

$

Not available

7

Honda 51510-723-810

GUARD, FR.

$

$

Currently unavailable

8

Honda 59431-723-810

BEAM, WEIGHT

$36.99

$

Usually ships in 3-6 days

0

9

Honda 90236-300-000

SEE PART DETAILS - SUP; NUT, FLANGE (8MM)

$

$

Currently unavailable

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.99

$

Usually ships in 3-6 days

0

12

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

13

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$1.99

$

In Stock, Qty 20+

0

16

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95700-10050-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X50)

$

$

Currently unavailable

17

Honda 95701-10050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 95701-10050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 95801-08045-00

BOLT, FLANGE (8X45)

$2.99

$

Usually ships in 3-6 days

0
