FR700 AS (FR700) - Honda Tiller, Made in Japan (SN: FR700-1016293 - FR700-9999999) HANDLEBAR (AS) Parts Diagram

Tiller, Made in Japan

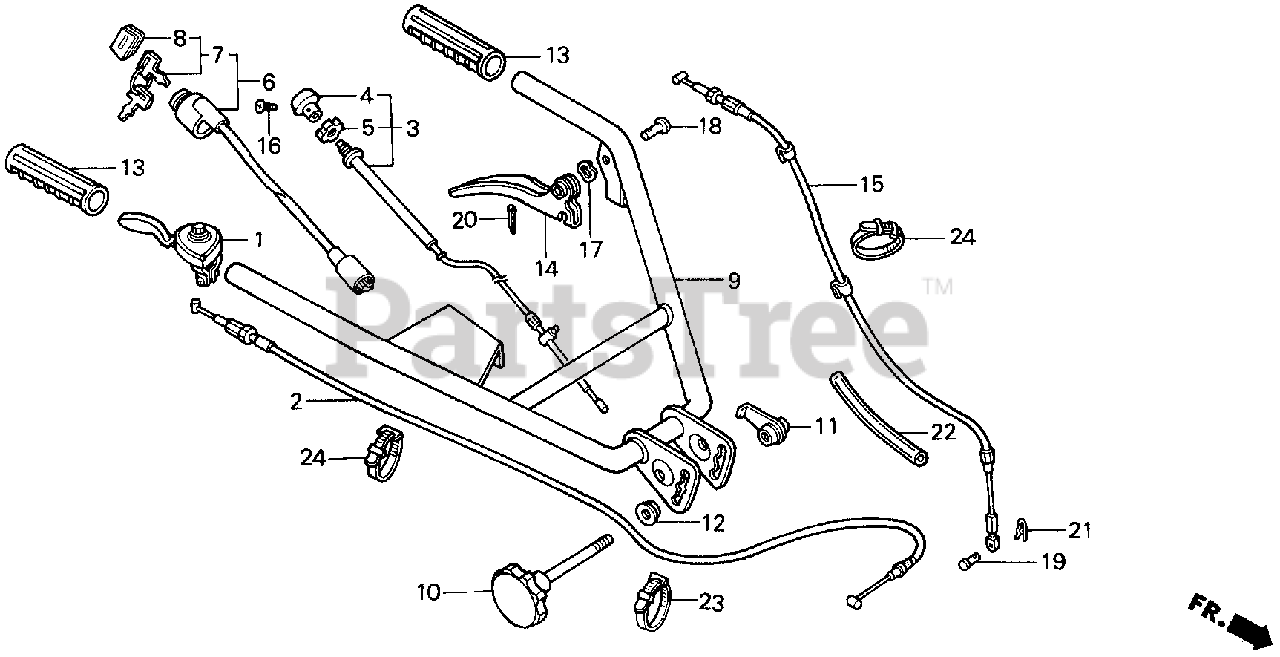

HANDLEBAR (AS) Parts Diagram

  • Title

1

Honda 17850-723-003

SEE PART DETAILS - PRI; LEVER ASSY., THROTTLE

$21.99

$

Usually ships in 3-6 days

0

2

Honda 17910-723-770

CABLE, THROTTLE

$

$

Not available

3

Honda 17950-735-910

CABLE, CHOKE

$40.99

$

Usually ships in 3-6 days

0

4

Honda 17951-SB1-010

KNOB, CHOKE WIRE

$

$

Currently unavailable

5

Honda 17957-734-920

NUT (14MM)

$

$

Currently unavailable

6

Honda 35100-735-922

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION

$

$

Currently unavailable

6

Honda 35100-735-923

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$135.99

$

Usually ships in 3-6 days

0

7

Honda 35110-VA3-902

SEE PART DETAILS - SUP; KEY ASSY., COMBINATION SWITCH
(Superseded to 35110-VA3-903)

$9.49

$

In Stock, only 1 left!

0

7

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$9.49

$

In Stock, only 1 left!

0

8

Honda 35113-459-730

CAP, KEY

$6.99

$

Usually ships in 3-6 days

0

9

Honda 53110-723-980

HANDLEBAR

$

$

Not available

10

Honda 53135-719-000

ADJUSTER, HANDLE

$37.99

$

Usually ships in 3-6 days

0

11

Honda 53137-719-000

NUT, HANDLE LOCK

$24.99

$

In Stock, only 2 left!

0

12

Honda 53139-719-000

NUT, SPECIAL (10MM)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 53321-708-000

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

14

Honda 54415-723-670

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Not available

15

Honda 54510-723-770

CABLE, CLUTCH

$33.99

$

Usually ships in 3-6 days

0

16

Honda 90130-SA0-003

SCREW, PAN (2.6x6)

$

$

Not available

17

Honda 90404-723-000

WASHER, WAVE (10MM)

$2.49

$

In Stock, only 1 left!

0

18

Honda 90751-708-000

PIN (8X18)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90756-723-750

PIN (4X15.5) (NOT AVAILABLE)

$

$

Not available

20

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

21

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 95003-40003-60M

BULK HOSE, VINYL (12X16X3000) (12X16X130)

$

$

Not available

23

Honda 95014-62100

BAND B1, CABLE

$1.99

$

In Stock, only 1 left!

0

24

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0
