FR750 AC/A (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1020001 - FZCG-9999999) ROTARY TINE Parts Diagram

Tiller, Made in Japan

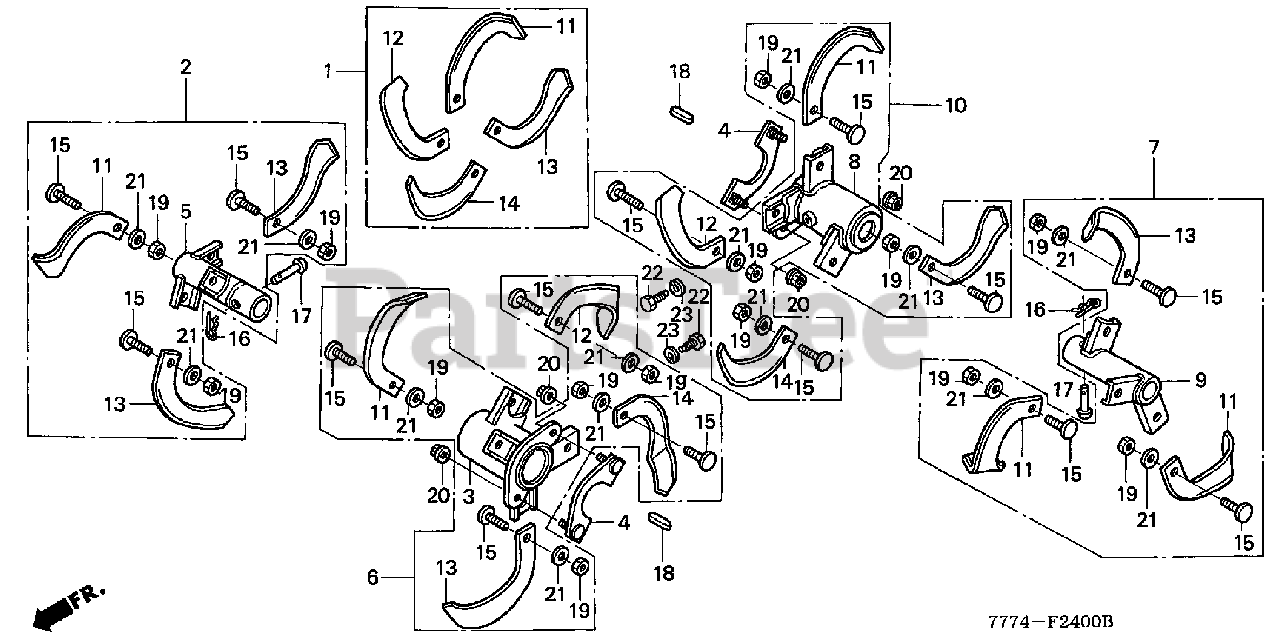

ROTARY TINE Parts Diagram

  • Title

1

Honda 06722-777-000

TINE KIT, ROTARY

$205.99

$

Usually ships in 3-6 days

0

2

Honda 72100-777-023

TINE ASSY., R. (OUTER)

$

$

Not available

3

Honda 72110-777-013

HOLDER, R. INSIDE

$

$

Not available

5

Honda 72130-777-023

HOLDER, R. (OUTER)

$

$

Not available

6

Honda 72150-777-013

TINE ASSY., R. INSIDE

$

$

Currently unavailable

7

Honda 72200-777-023

TINE ASSY., L. (OUTER)

$

$

Not available

8

Honda 72210-777-013

HOLDER, L. INSIDE

$

$

Not available

9

Honda 72230-777-023

HOLDER, L. (OUTER)

$

$

Not available

10

Honda 72250-777-013

TINE ASSY., L. INSIDE

$

$

Not available

11

Honda 72461-773-003

TINE A, ROTARY

$16.99

$

Usually ships in 3-6 days

0

12

Honda 72464-777-003

TINE, R. ROTARY

$17.99

$

Usually ships in 3-6 days

0

13

Honda 72465-773-003

TINE B, ROTARY

$16.99

$

In Stock, only 3 left!

0

14

Honda 72468-777-003

TINE, L. ROTARY

$17.99

$

Usually ships in 3-6 days

0

15

Honda 90101-777-000

BOLT, TINE FIXING (10X22)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90652-773-003

PIN, SNAP (10MM)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90751-773-003

PIN (10X45)

$6.49

$

In Stock, only 3 left!

0

18

Honda 90752-777-000

KEY (7X7X30)

$9.49

$

Usually ships in 3-6 days

0

19

Honda 94001-10080-0S

NUT, HEX. (10MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, Qty 5

0

22

Honda 90105-792-000

BOLT, SPECIAL (10X16)

$14.99

$

Usually ships in 3-6 days

0

23

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, Qty 5

0
