FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) CYLINDER (FR750) Parts Diagram

Tiller, Made in Japan

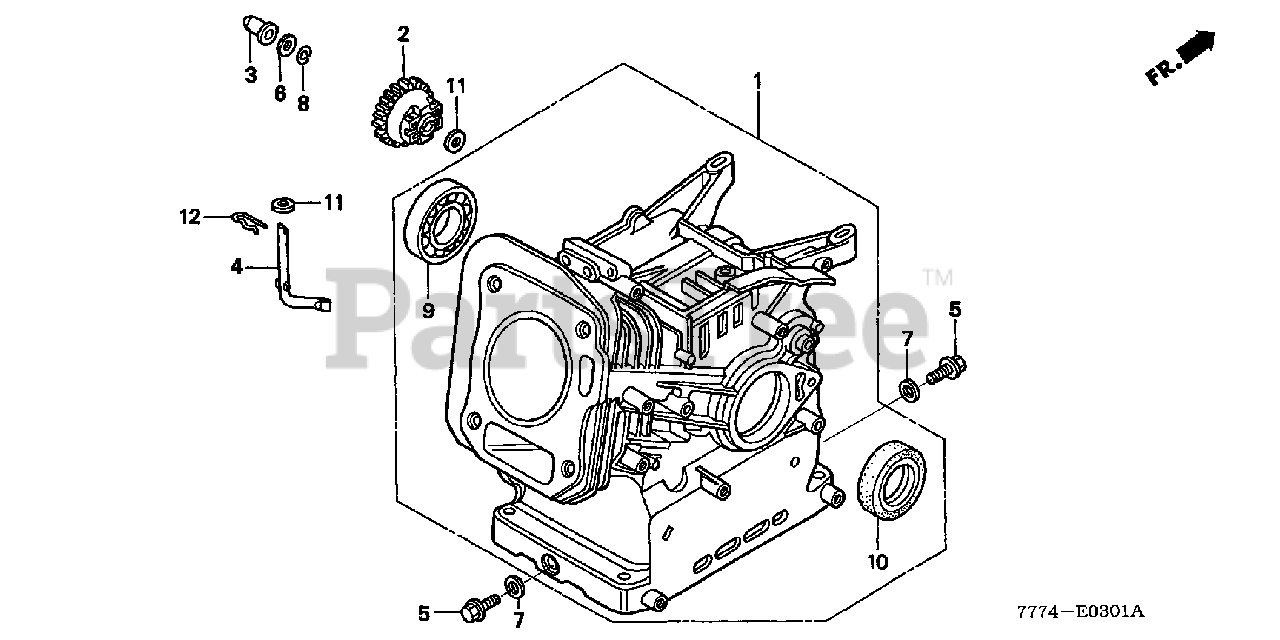

CYLINDER (FR750) Parts Diagram

  • Title

1

Honda 12000-ZL0-000

SEE PART DETAILS - SUP; CYLINDER ASSY.
(Superseded to 12000-Z0V-405)

Note: Use up to Engine SN 1593115.

$219.99

$

Usually ships in 3-6 days

0

1

Honda 12000-ZL0-406

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: Use from Engine SN 1593116 to 1853341.

$

$

Currently unavailable

1

Honda 12000-ZL0-416

SEE PART DETAILS - SUP; CYLINDER ASSY.

Note: Use from Engine SN 1853342.

$

$

Currently unavailable

2

Honda 16506-ZL0-000

GOVERNOR ASSY.

$35.99

$

Usually ships in 3-6 days

0

3

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

4

Honda 16541-ZE1-000

SHAFT, GOVERNOR ARM

$14.99

$

Usually ships in 3-6 days

0

5

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 3 left!

0

6

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

7

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.99

$

In Stock, Qty 20+

0

8

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 4 left!

0

9

Honda 91001-ZF1-003

BEARING, RADIAL BALL (6205)

$27.99

$

In Stock, only 3 left!

0

10

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$10.99

$

In Stock, only 1 left!

0

10

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

Note: Use up to Engine SN 1853341.

$10.99

$

In Stock, only 1 left!

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
