FR750 AC (FZCG) - Honda Tiller, Made in Japan (SN: FZCG-1000001 - FZCG-1019999) PISTON + CRANKSHAFT Parts Diagram

Tiller, Made in Japan

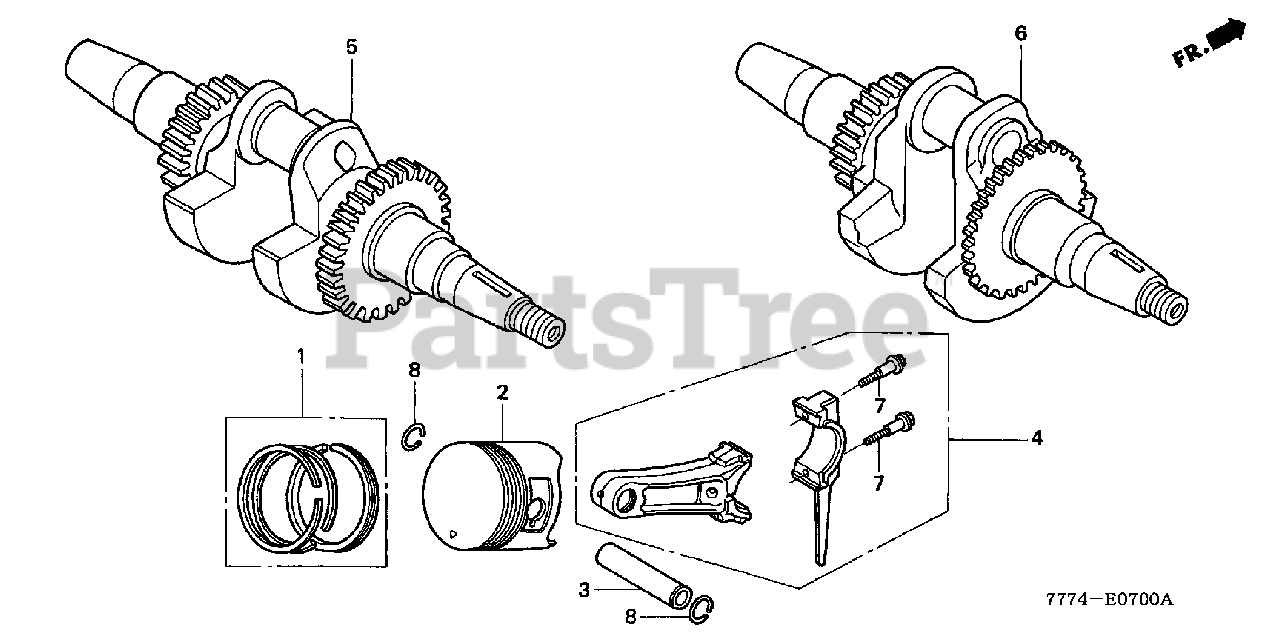

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$54.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD) (NIPPON)

$35.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZL0-003

RING SET, PISTON (OS 0.25)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (OS 0.25) (NIPPON)

$

$

Not available

1

Honda 13012-ZL0-003

RING SET, PISTON (OS 0.50)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (OS 0.50) (NIPPON)

$

$

Not available

1

Honda 13013-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON)

$39.99

$

In Stock, only 1 left!

0

2

Honda 13101-ZL0-010

SEE PART DETAILS - PRI; PISTON (STD)

$42.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZL0-000

SEE PART DETAILS - SUP; PISTON (OS 0.25) Use up to Engine SN 1645601.

$

$

Currently unavailable

2

Honda 13102-ZL0-010

SEE PART DETAILS - PRI; PISTON (OS 0.25) Use from Engine SN 1645602.

$

$

Not available

2

Honda 13103-ZL0-010

SEE PART DETAILS - PRI; PISTON (OS 0.50)

$45.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZL0-000

SEE PART DETAILS - SUP; PISTON (0.75) Use up to Engine SN 1645601.

$

$

Currently unavailable

2

Honda 13104-ZL0-010

SEE PART DETAILS - PRI; PISTON (0.75) Use from Engine SN 1645602.

$

$

Not available

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

6

Honda 13310-ZL0-A00

SEE PART DETAILS - SUP; CRANKSHAFT (VE-TYPE)

Note: Use up to Engine SN 1844018.

$

$

Currently unavailable

6

Honda 13310-ZL0-A01

SEE PART DETAILS - SUP; CRANKSHAFT

Note: Use from Engine SN 1844019.

$

$

Currently unavailable

7

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 20+

0
