FRC800 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1000001 - FAHJ-9999999) FUEL TANK Parts Diagram

20" Tiller, Made in Japan

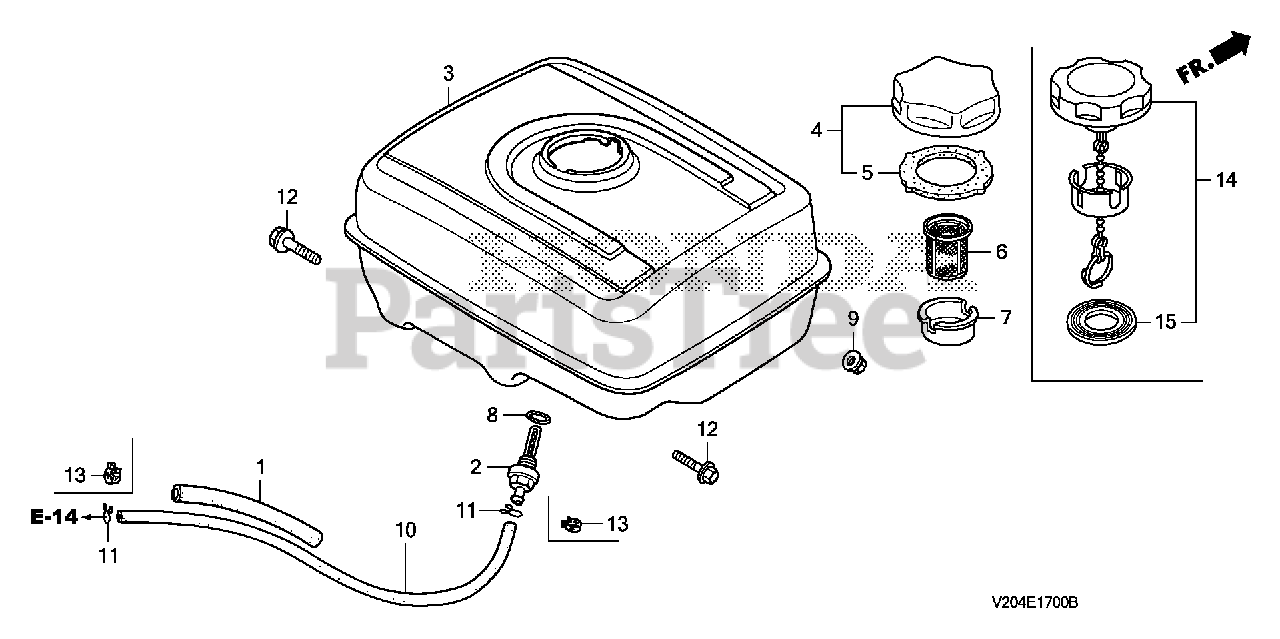

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.99

$

In Stock, only 4 left!

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 6

0

3

Honda 17510-ZE2-801ZD

SEE PART DETAILS - PRI; TANK, FUEL *R280* (POWER RED)

$223.99

$

In Stock, only 3 left!

0

4

Honda 17620-ZE1-H02

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: Use up to Engine SN 4858143.

$

$

Currently unavailable

4

Honda 17620-ZE1-H03

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Engine SN 4858144.

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

5

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-ZE1-000)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 17672-887-791

FILTER, FUEL

$22.99

$

In Stock, only 4 left!

0

7

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

$16.99

$

In Stock, only 1 left!

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$4.49

$

In Stock, Qty 20+

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

10

Honda 91424-Z5F-802

TUBE, FUEL (4.5X222) (FKM)
(Superseded to 91424-Z5F-803)

Note: Use from Engine SN 4795102.

$

$

Not available

10

Honda 91424-Z5F-803

TUBE, FUEL (4.5X222)
(Superseded to 91424-Z5F-804)

Note: Use from Engine SN 4795102.

$25.99

$

Usually ships in 3-6 days

0

10

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Engine SN 4795101.

$60.99

$

In Stock, only 1 left!

0

11

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 4795101.

$2.99

$

In Stock, Qty 20+

0

12

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.99

$

In Stock, Qty 8

0

13

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 4795102.

$3.49

$

In Stock, Qty 13

0
