FRC800 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1000001 - FAHJ-9999999) TRANSMISSION CASE Parts Diagram

20" Tiller, Made in Japan

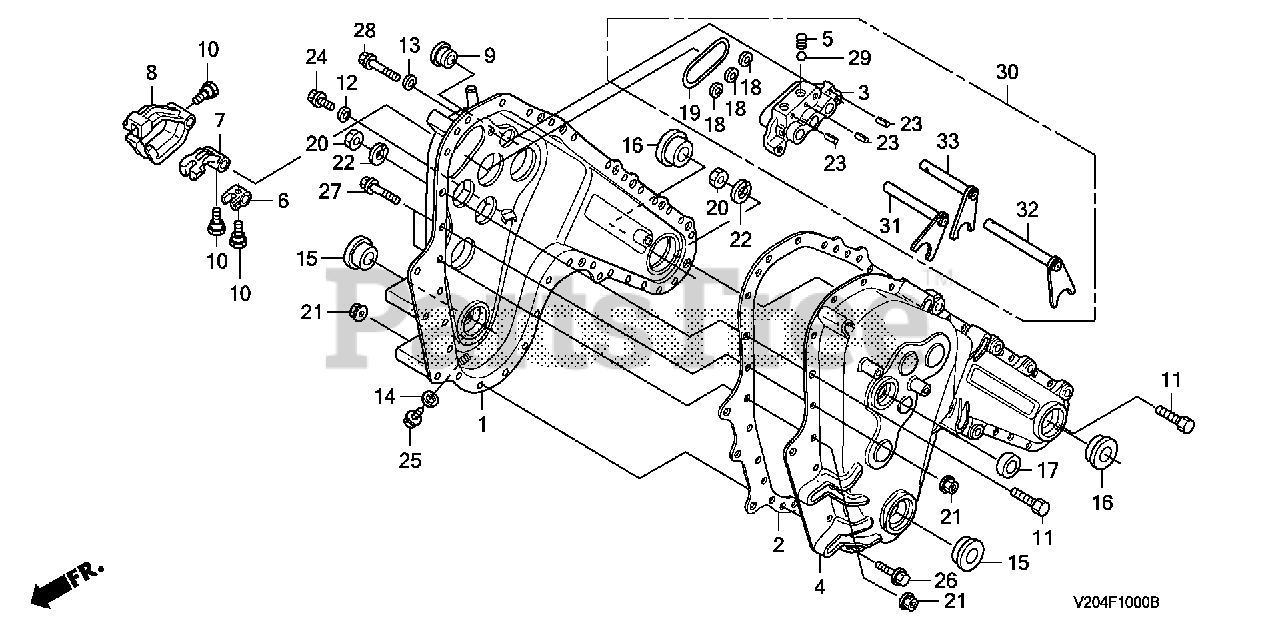

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-V20-003

CASE, R. TRANSMISSION

$700.99

$

Usually ships in 3-6 days

0

2

Honda 21115-V20-003

GASKET, TRANSMISSION CASE

$123.99

$

In Stock, only 2 left!

0

3

Honda 21125-V20-003

HOLDER, SHIFT SHAFT

$236.99

$

Usually ships in 3-6 days

0

4

Honda 21211-V20-003

CASE, L. TRANSMISSION

$610.99

$

Usually ships in 3-6 days

0

5

Honda 24271-V20-003

SPRING, BALL SETTING

$2.49

$

Usually ships in 3-6 days

0

6

Honda 24362-V20-003ZA

ARM, SECOND & THIRD CHANGE *NH105* (MAT BLACK)

$86.99

$

Usually ships in 3-6 days

0

7

Honda 24361-V20-003ZA

ARM, FIRST & REVERSE CHANGE *NH105* (MAT BLACK)

$65.99

$

Usually ships in 3-6 days

0

8

Honda 24364-V20-003ZA

ARM, ROTARY CHANGE *NH105* (MAT BLACK)

$186.99

$

Usually ships in 3-6 days

0

9

Honda 25611-777-000

CAP, OIL HOLE

$12.99

$

In Stock, only 1 left!

0

10

Honda 90021-700-010

SCREW, FORK SETTING

$2.99

$

In Stock, only 3 left!

0

11

Honda 90102-V20-003

BOLT, HEX. (10X17)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90501-773-003

WASHER, SEALING (6MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90503-V16-003

WASHER, SEALING (8MM)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90504-V16-003

WASHER, SEALING (8MM)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 91251-V20-003

OIL SEAL (25X47X13)

$20.99

$

In Stock, only 2 left!

0

16

Honda 91252-V20-003

OIL SEAL (30X62X11)

$26.99

$

In Stock, only 2 left!

0

17

Honda 91252-790-003

OIL SEAL (17X35X7)

$9.49

$

Usually ships in 3-6 days

0

18

Honda 91253-V20-003

OIL SEAL (14X21.5X3)

$7.49

$

In Stock, only 3 left!

0

19

Honda 91351-V20-003

O-RING

$16.99

$

In Stock, only 1 left!

0

20

Honda 94030-10080

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

22

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, Qty 20+

0

23

Honda 94305-30182

PIN, SPRING (3X18) (Honda Code 0747857).

$1.99

$

Usually ships in 3-6 days

0

24

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-08012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2647428).

$2.99

$

In Stock, only 3 left!

0

26

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

$2.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

In Stock, Qty 9

0

28

Honda 95701-08030-08

BOLT, FLANGE (8X30)

$2.49

$

In Stock, only 2 left!

0

29

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 21123-V20-003

HOLDER SUB-ASSY., SHIFT

$552.99

$

Usually ships in 3-6 days

0

31

Honda 24110-V20-003

SHAFT, SHIFT FORK (A)

$122.99

$

Usually ships in 3-6 days

0

32

Honda 24120-V20-003

SHAFT, SHIFT FORK (B)

$124.99

$

Usually ships in 3-6 days

0

33

Honda 24225-V20-003

SHAFT, P.T.O. CHANGE FORK

$132.99

$

Usually ships in 3-6 days

0
