FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) FUEL TANK Parts Diagram

20" Tiller, Made in Japan

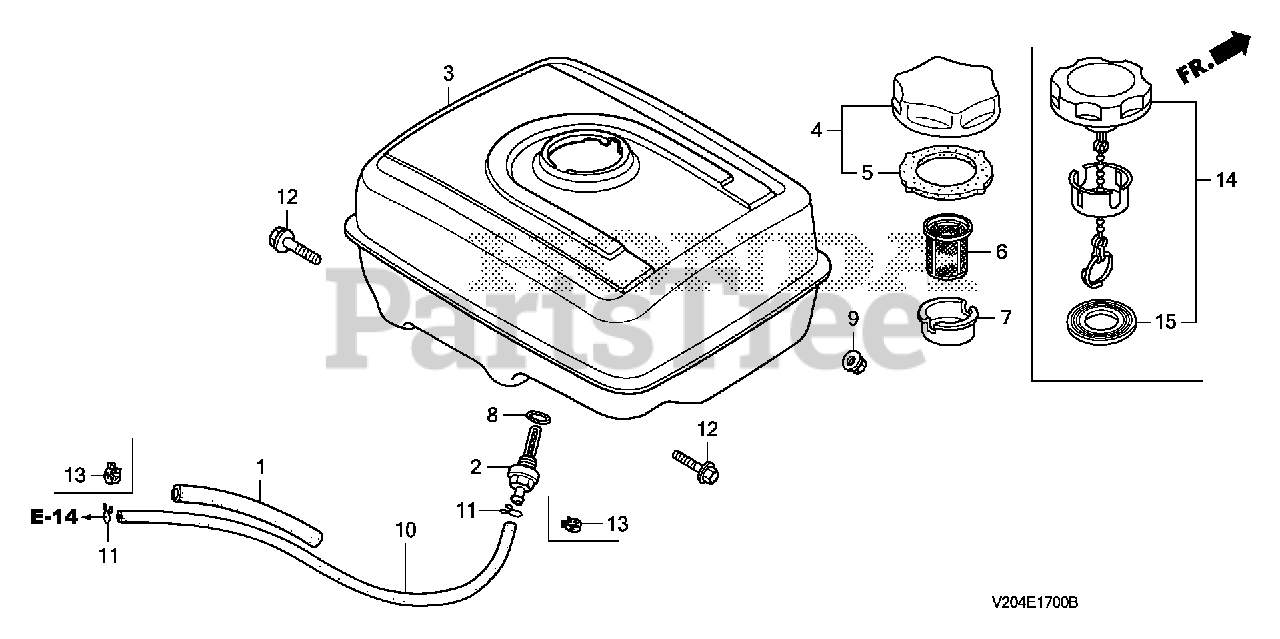

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 11

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$9.99

$

In Stock, Qty 13

0

3

Honda 17510-Z5K-000ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

$66.99

$

In Stock, only 2 left!

0

3

Honda 17510-Z5K-000ZE

TANK, FUEL *R280* (POWER RED)

$303.99

$

Usually ships in 3-6 days

0

6

Honda 17670-Z2F-A30

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

8

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

9

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 91424-Z5K-003

TUBE, FUEL (4.5X210) (FKM)
(Superseded to 91424-Z5K-013)

$13.99

$

In Stock, only 1 left!

0

12

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 15

0

13

Honda 95002-40800-08

CLAMP, TUBE (D8)

$3.49

$

In Stock, only 3 left!

0

14

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1007934.

$82.99

$

Usually ships in 3-6 days

0

14

Honda 17620-Z4H-030

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1013406.

$82.99

$

Usually ships in 3-6 days

0

14

Honda 17620-Z4H-900

CAP, FUEL FILLER

Note: Use from Engine SN 1013407.

$82.99

$

Usually ships in 3-6 days

0

15

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

$0.99

$

In Stock, only 3 left!

0
