FRC800 K1 A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1100001 - FAHJ-9999999) HANDLEBAR (FRC800K1) Parts Diagram

20" Tiller, Made in Japan

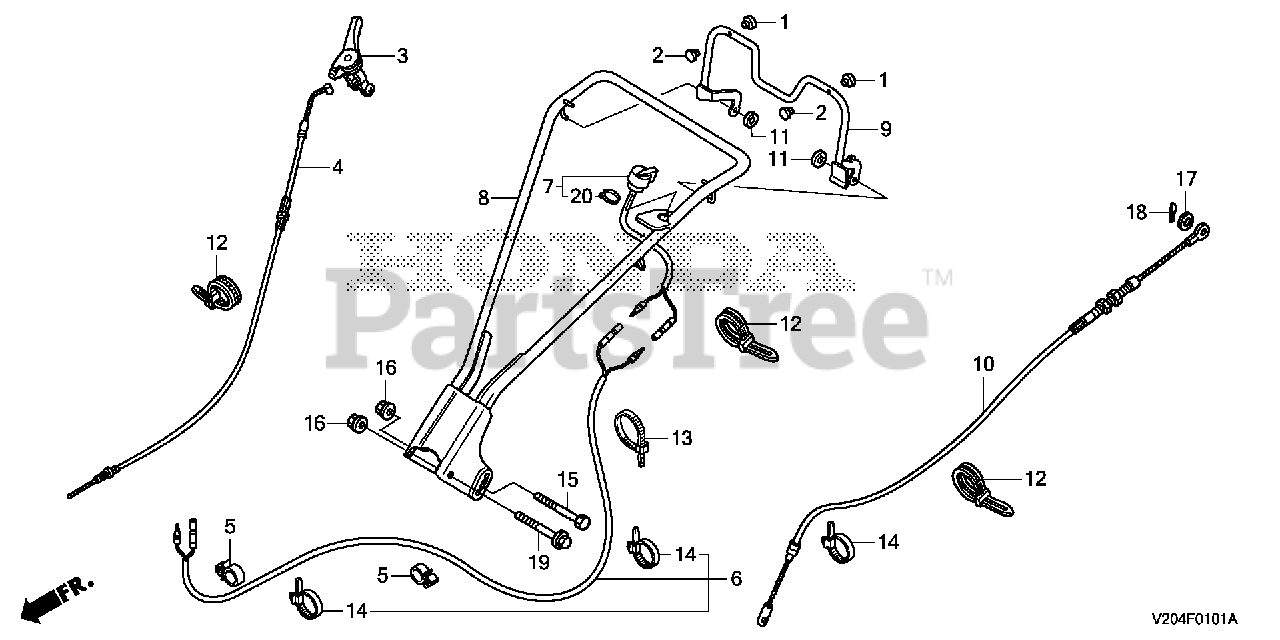

HANDLEBAR (FRC800K1) Parts Diagram

  • Title

1

Honda 16033-V16-003

RIVET

$2.49

$

In Stock, only 2 left!

0

2

Honda 16034-V16-003

RIVET

$2.49

$

In Stock, only 2 left!

0

3

Honda 17850-V20-305

SEE PART DETAILS - PRI; LEVER ASSY., THROTTLE (COO)
(Superseded to 17850-V20-003)

$

$

Not available

4

Honda 17910-V20-821

CABLE, THROTTLE

$31.99

$

Usually ships in 3-6 days

0

5

Honda 30706-V20-821

CLIP, HARNESS

$2.99

$

Usually ships in 3-6 days

0

6

Honda 32195-V20-820

WIRE, ENGINE STOP SWITCH

$25.99

$

Usually ships in 3-6 days

0

7

Honda 35120-V20-821

SWITCH ASSY., ENGINE STOP

$33.99

$

Usually ships in 3-6 days

0

8

Honda 53110-V20-305ZA

PIPE, HANDLE *NH105* (COO) (MAT BLACK)

$459.99

$

Usually ships in 3-6 days

0

9

Honda 54410-V20-305ZA

LEVER, CLUTCH *NH105* (COO) (MAT BLACK)
(Superseded to 54410-V20-A41ZA)

$53.99

$

Usually ships in 3-6 days

0

10

Honda 54510-V20-821

CABLE, CLUTCH

$70.99

$

In Stock, only 1 left!

0

11

Honda 90503-777-003

WASHER, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90651-MA6-720

BAND, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90673-SK7-A01

BAND, HARNESS (BLACK)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 92101-10150-0A

BOLT, HEX. (10X150)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, only 4 left!

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94201-20151

PIN, SPLIT (2.0)

$0.99

$

In Stock, Qty 10

0

19

Honda 95701-10150-08

BOLT, FLANGE (10X150)

$7.49

$

In Stock, only 1 left!

0

20

Honda 32902-892-003

BAND

$4.99

$

Usually ships in 3-6 days

0
