FRC800 K1 A1/A (FAHJ) - Honda 20" Tiller, Made in Japan (SN: FAHJ-1310001 - FAHJ-9999999) INPUT SHAFT Parts Diagram

20" Tiller, Made in Japan

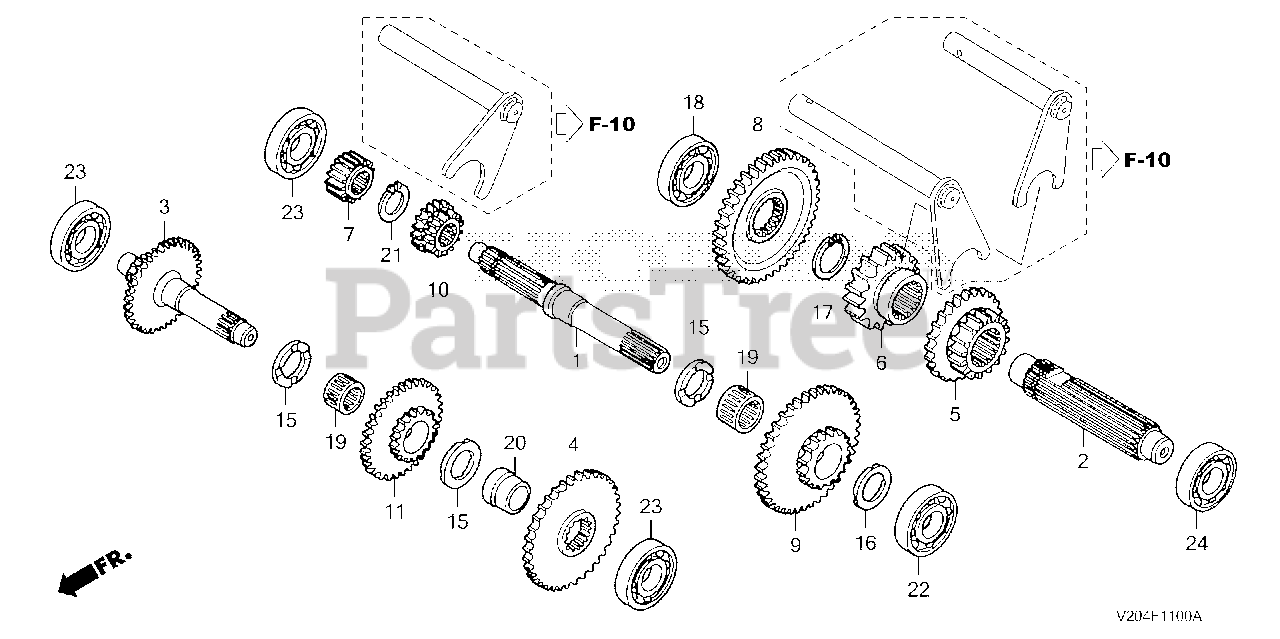

INPUT SHAFT Parts Diagram

  • Title

1

Honda 23111-V20-003

SHAFT, INPUT

$254.99

$

Usually ships in 3-6 days

0

2

Honda 23151-V20-003

SHAFT, P.T.O.

$133.99

$

Usually ships in 3-6 days

0

3

Honda 23221-V20-003

COUNTERSHAFT, TRANSMISSION (12T/35T)

$348.99

$

Usually ships in 3-6 days

0

4

Honda 23341-V20-003

GEAR, COUNTER (36T)

$291.99

$

Usually ships in 3-6 days

0

5

Honda 23366-V20-003

GEAR, FIRST & REVERSE CHANGE (16T/24T)

$150.99

$

Usually ships in 3-6 days

0

6

Honda 23368-V20-003

GEAR, ROTARY CHANGE (16T)

$123.99

$

Usually ships in 3-6 days

0

7

Honda 23421-V20-003

GEAR, DRIVE (15T)

$69.99

$

Usually ships in 3-6 days

0

8

Honda 23431-V20-003

GEAR, DRIVEN (40T)

$128.99

$

Usually ships in 3-6 days

0

9

Honda 23461-V20-003

GEAR, FIRST IDLE (16T/39T)

$173.99

$

Usually ships in 3-6 days

0

10

Honda 23462-V20-003

GEAR, SECOND & THIRD CHANGE (15T/17T)

$103.99

$

Usually ships in 3-6 days

0

11

Honda 23476-V20-003

GEAR, COUNTER IDLE (18T/37T)

$162.99

$

Usually ships in 3-6 days

0

15

Honda 90501-790-000

WASHER, THRUST (20MM)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 90502-790-000

WASHER, THRUST (17MM)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90661-SK7-000

CIRCLIP (OUTER) (22MM) (NOT AVAILABLE)

$9.99

$

Usually ships in 3-6 days

0

18

Honda 91004-PZ6-008

BEARING, BALL (20X56X16)

$34.99

$

Usually ships in 3-6 days

0

19

Honda 91071-790-003

BEARING, NEEDLE (20X24X17)

$24.99

$

Usually ships in 3-6 days

0

20

Honda 91551-V20-003

COLLAR, COUNTER GEAR

$13.99

$

Usually ships in 3-6 days

0

21

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203) (Honda Code 0722199).

$12.99

$

Usually ships in 3-6 days

0

23

Honda 96100-63020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6302) (Honda Code 0834176).

$13.99

$

Usually ships in 3-6 days

0

24

Honda 96100-63030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6303)

$20.99

$

Usually ships in 3-6 days

0
