FS 1200 (5902095) - Ferris Rover XC Series Stand-On Spreader Main Frame Group Parts Diagram

Rover XC Series Stand-On Spreader

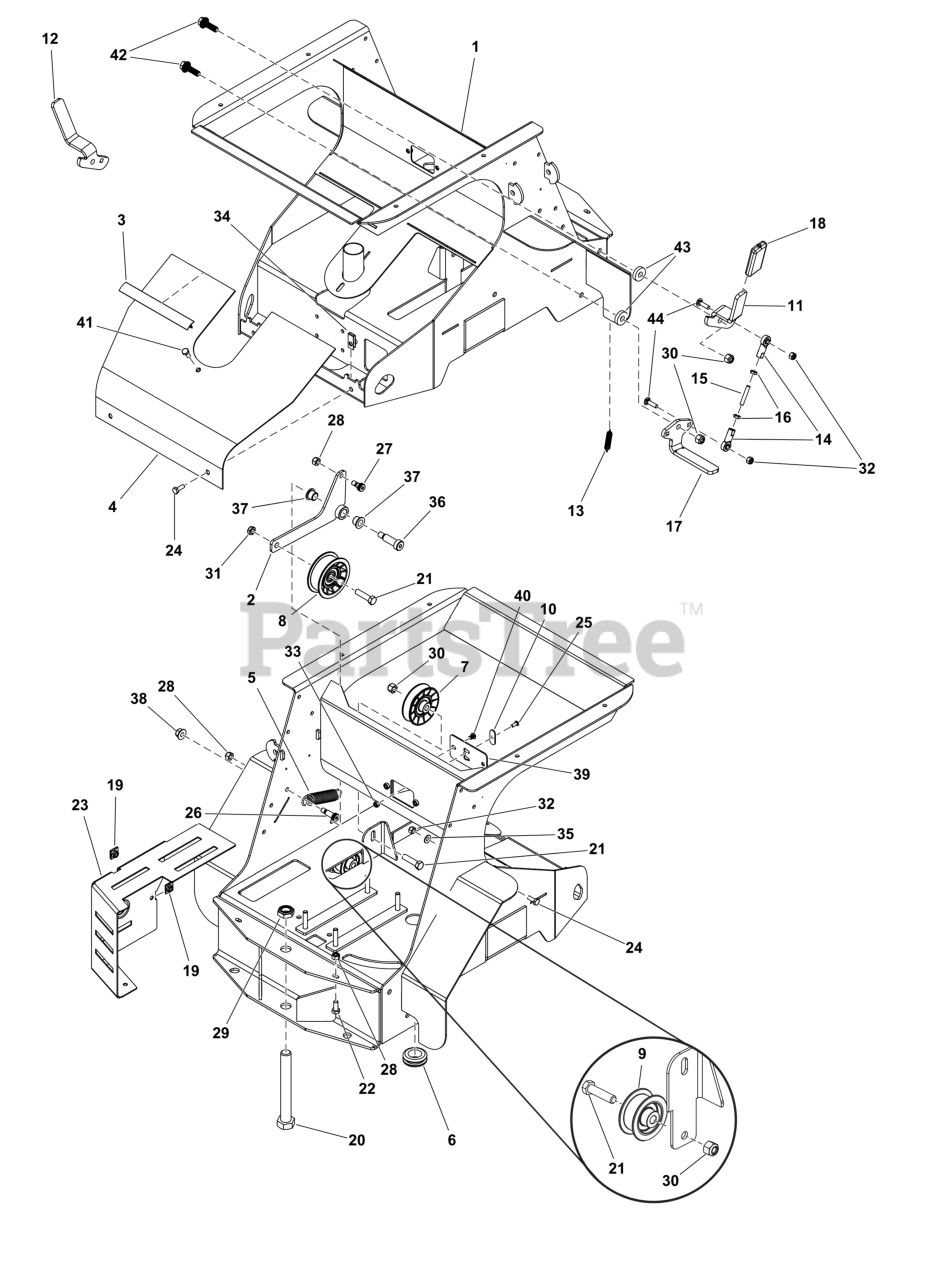

Main Frame Group Parts Diagram

  • Title

1

FRAME

$

$

Not available

2

Ferris 5106139

WELD, ARM IDLER ROVER

$111.99

$

Usually ships in 2-12 days

0

3

Ferris 5417982

SEAL TRIM, FRONT COWL 7" LONG

$7.49

$

In Stock, only 2 left!

0

4

Ferris 5418386

FRONT COWL, ROVER (SANDED)

$136.99

$

Usually ships in 2-12 days

0

5

Ferris 5105946

SPRING, EXTENSION .840" OD X 4.00" LONG SS

$11.99

$

In Stock, only 2 left!

0

6

Ferris 5107562

GROMMET 1.00" I.D. FIT 1.38"HOLE

$2.49

$

Usually ships in 2-12 days

0

7

Ferris 5106169

PULLEY V-BELT IDLER 1.79" OD X 3/8" BORE

$31.99

$

In Stock, only 1 left!

0

8

Ferris 5106048

PULLEY IDLER 2.75" OD X 3/8" BORE

$33.99

$

In Stock, only 1 left!

0

9

Ferris 5105890

PULLEY IDLER 1.75" OD X 3/8" BORE

$28.99

$

Usually ships in 2-12 days

0

10

Ferris 5105969

PLATE, CABLE HOLDER

$8.49

$

In Stock, only 1 left!

0

11

Ferris 84008426

HANDLE, LH

$

$

Currently unavailable

12

Ferris 84008427

HANDLE, RH

$

$

Currently unavailable

13

Ferris 5105982

SPRING, EXTENSION .375" OD X 2.500 LONG SS

$7.49

$

In Stock, only 2 left!

0

14

Ferris 5106173

ROD END, FEMALE 1/4-28 RH SS PTFE RACE

$20.99

$

Usually ships in 2-12 days

0

15

Ferris 5106174

ROD, THREADED .250"-28 X 1.500" SS188

$6.99

$

In Stock, only 3 left!

0

16

Ferris 5106016

NUT-HEX, JAM .250"-28 SS188

$7.49

$

Usually ships in 2-12 days

0

17

Ferris 84008428

ARM, Brake

$

$

Currently unavailable

18

Ferris 5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$16.99

$

Usually ships in 2-12 days

0

19

Ferris 5105973

NUT-CLIP, .250"-20 X .375" EDGE DISTANCE

$7.49

$

Usually ships in 2-12 days

0

20

Ferris 5106215

SCR-CAP, HEX .750"-10 X 6.000" SS188

$35.99

$

Usually ships in 2-12 days

0

21

Ferris 5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$9.99

$

In Stock, only 1 left!

0

22

Ferris 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 84008429

PLATE, Guard

$

$

Currently unavailable

24

Ferris 5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5105978

SCR-CAP, BSH #10-24 X .500" SS188

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5106172

BLT-SLDR, SH .38"X0.75,.313-18 X.50 SS

$7.49

$

Usually ships in 2-12 days

0

27

Ferris 5106171

BLT-SLDR, SH .375" X 0.250", .3125"-18 X.500" SS188

$6.49

$

Usually ships in 2-12 days

0

28

Ferris 5105992FS

NUT

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5106184FS

NUT

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5106006FS

NUT

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5106579

NUT-HEX-NYLK, .375"-16 TH SS188

$2.99

$

Usually ships in 2-12 days

0

32

Ferris 5106040FS

NUT

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5105963FS

NUT

$2.49

$

Usually ships in 2-12 days

0

34

Ferris 5105898FS

NUT, Clip

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$12.99

$

Usually ships in 2-12 days

0

37

Ferris 5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$8.99

$

Usually ships in 2-12 days

0

38

Ferris 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5419900

PLATE, HOPPER CABLES

$7.99

$

Usually ships in 2-12 days

0

40

Ferris 5108320

SCR-CAP, SBH .250"-20 X .375" SS188

$2.49

$

Usually ships in 2-12 days

0

41

Ferris 5106029

SCR-CAP, HEX .250"-20 X .625" SS188

$3.49

$

Usually ships in 2-12 days

0

42

Ferris 5107616

SCR-CAP, HSWH .375"-16 X 1.250" SS188

$2.49

$

Usually ships in 2-12 days

0

43

Ferris 84008430

SPACER

$

$

Currently unavailable

44

Ferris 5107668

BLT-RDHDSQNK, .250"-20 X 1.000" SS188

$1.49

$

Usually ships in 2-12 days

0
